Rear Enclosure Replacement
Service Manual 12-27
Caution:
Do not touch the heater coil. Body oil can damage the coil and affect
heater operation.
21. Position the heater assembly in the heater cone, with the wires routed through
the notch in the enclosure. Make sure that the two wrapped sets of wires lie on
opposite sides of the heater’s metal support rib (Figure 12-23).

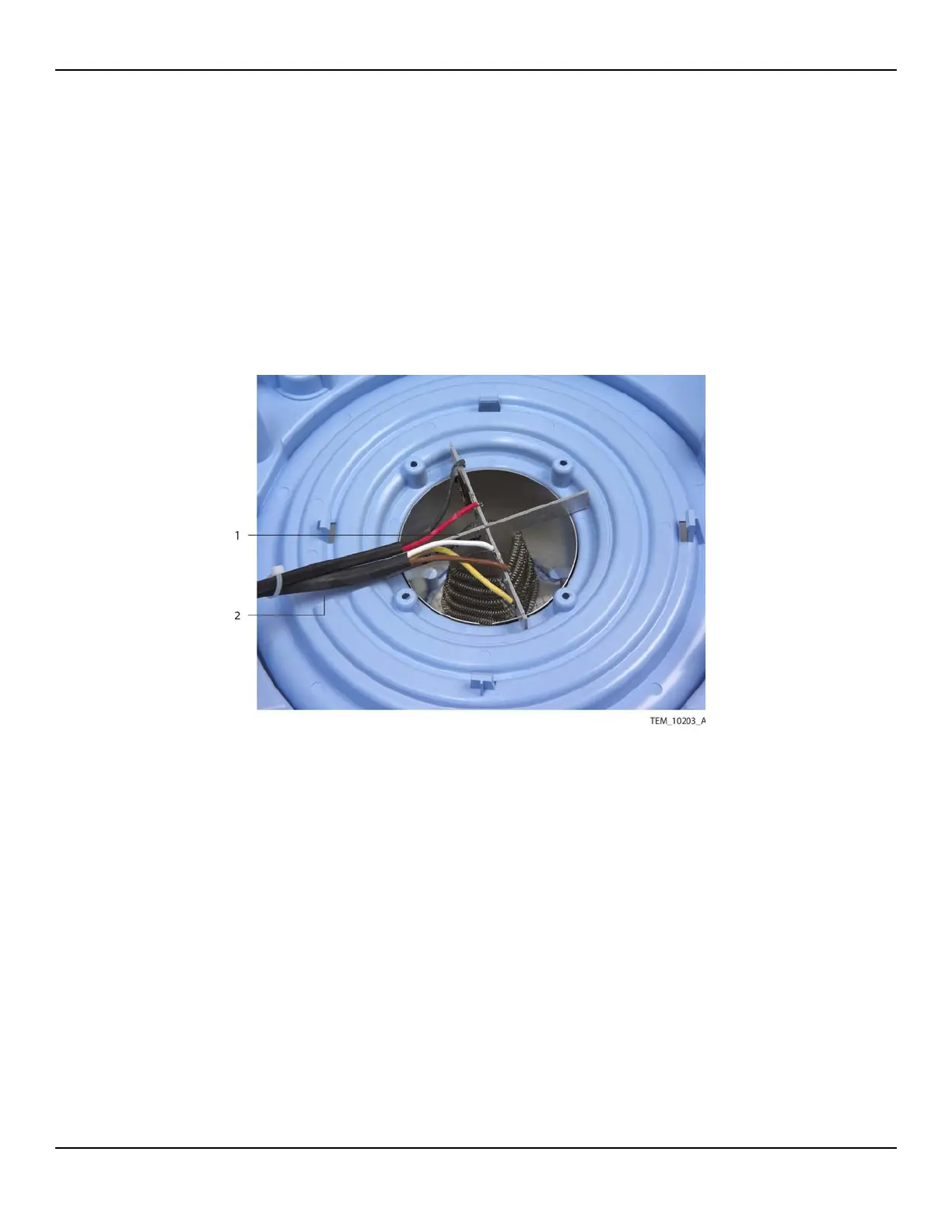

Figure12-23.Routing of Heater Wires
22. Attach the new circular gasket as follows (Figure 12-18 on page 12-23):
a. Remove the backing from the gasket to expose the adhesive.
b. Center the gasket around the heater assembly, just outside the four screw
bosses in the enclosure.
c. Making sure that the heater wires are lying flat in the notch, press the gasket
down on both sides of the wires.
d. Continue pressing around the rest of the gasket to adhere it to the enclosure.
1 Heater Support Rib 2 Notch for Heater Wires
