Hose Duct Adapter Replacement

Service Manual 11-29

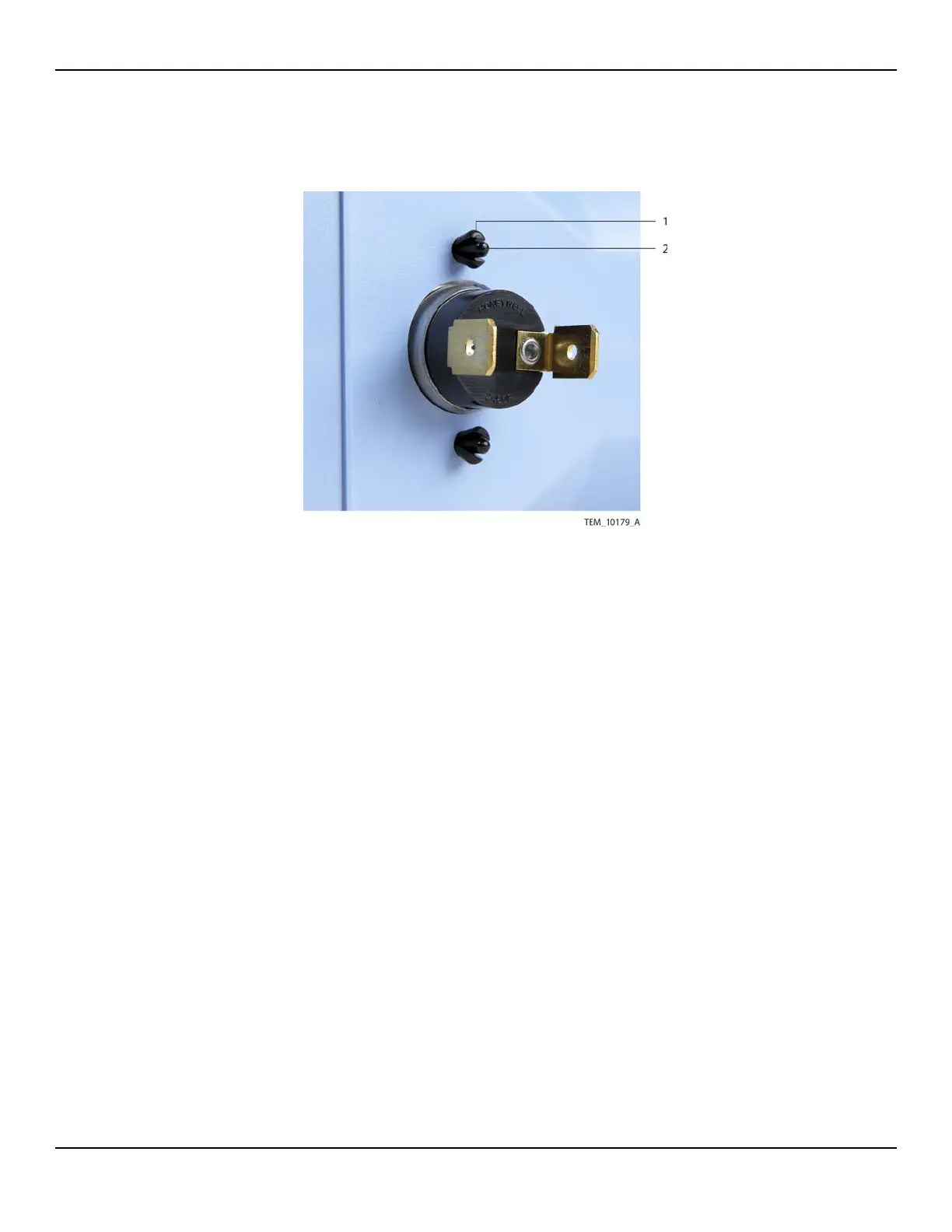

Figure11-26.Thermostat Rivets (Outside of Hose Duct Adapter)

9. Attach the thermostat to the new hose duct adapter as follows (Figure 11-27):

a. From the inside of the hose duct adapter, insert the terminal side of the ther-

mostat through the hole in the duct adapter.

b. Line up the thermostat mounting holes with the holes in the duct adapter.

c. From the inside of the duct adapter, insert a plastic rivet in each of the mount-

ing holes.

d. Lock each rivet in place by pressing on the center locking pin until it is flush

with the surface of the rivet head.

1 Thermostat Rivet (x2)

2 Rivet Pin (x2)
