AC Power Inlet Replacement

Service Manual 10-51

10.16 AC Power Inlet Replacement

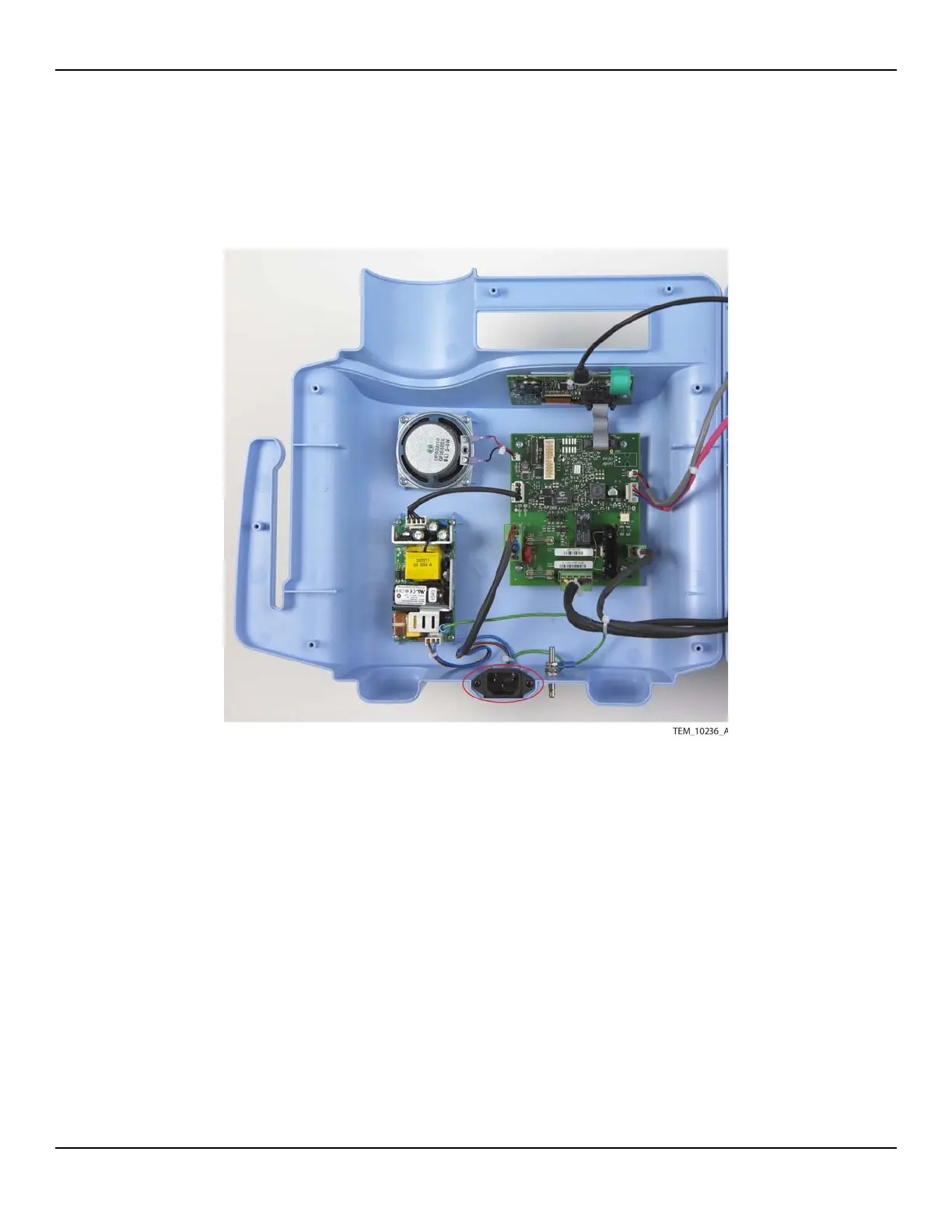

Figure10-37.AC Power Inlet

Requirements:

• WT-CWU AC Inlet Kit (page A-4)

• Torque driver with #1 and #2 Phillips bits and 10mm hex socket

• 10 mm open-end or box wrench

• Wire cutters and cable tie (some warming unit configurations)

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
