Covidien WarmTouch - Figure 11-24 Thermostat Cable Connection to Thermostat

To Next Page

To Previous Page

Hose Duct Adapter Replacement

Service Manual 11-27

4. Detach the thermostat cable from the two terminals on the thermostat (Figure 11-

24).

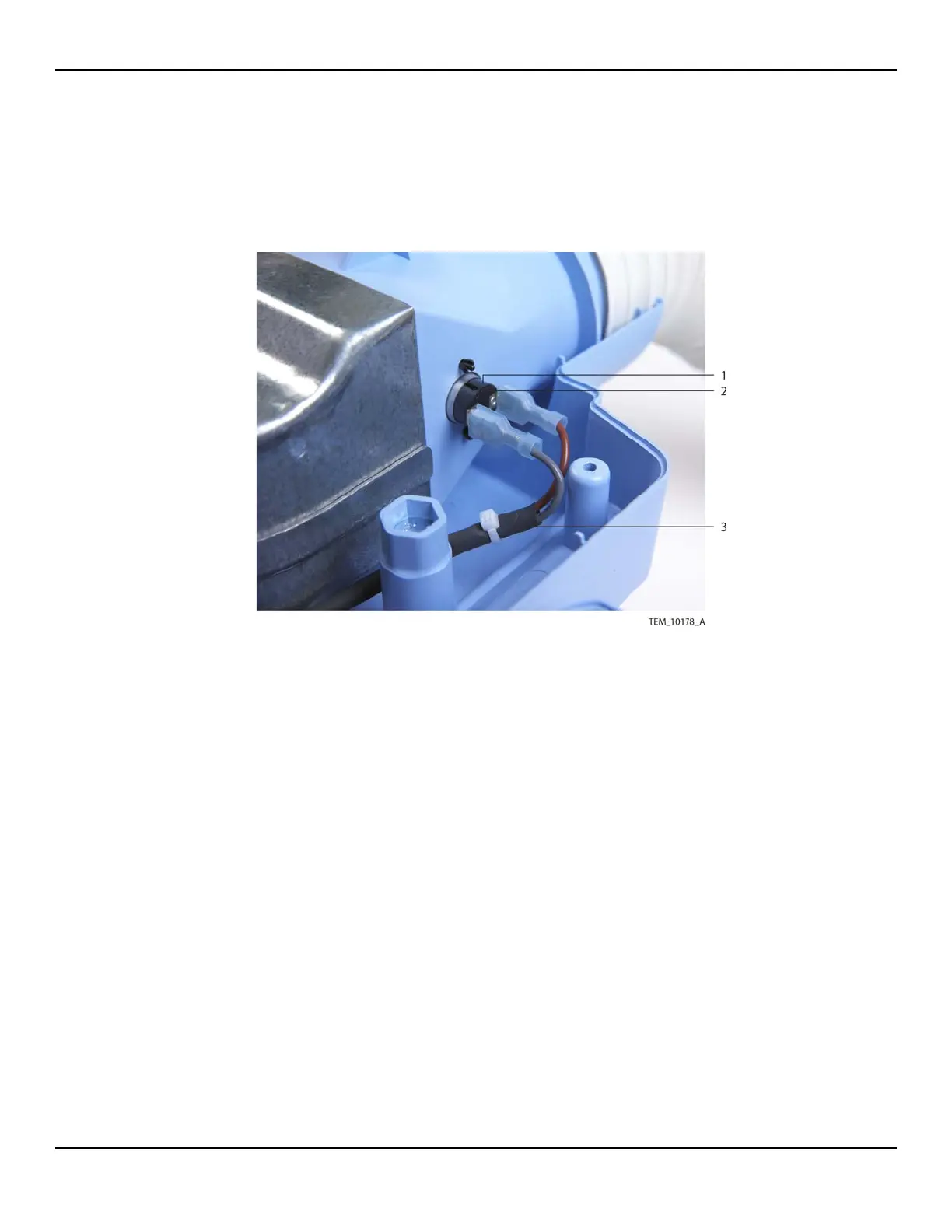

Figure11-24.Thermostat Cable Connection to Thermostat

5. Lift the hose and duct adapter out of the unit.

6. Locate the reinforcing wire that attaches the hose to the duct adapter. Unbend

the wire and slide it through the hole in the duct adapter flange (Figure 11-25).

1 Thermostat 3 Thermostat Cable

2 Terminal (x2)
