Covidien WarmTouch - Figure 11-25 Wire Attaching Hose to Hose Duct Adapter

To Next Page

To Previous Page

Internal Component Replacement (Inside Rear Enclosure)

11-28 Service Manual

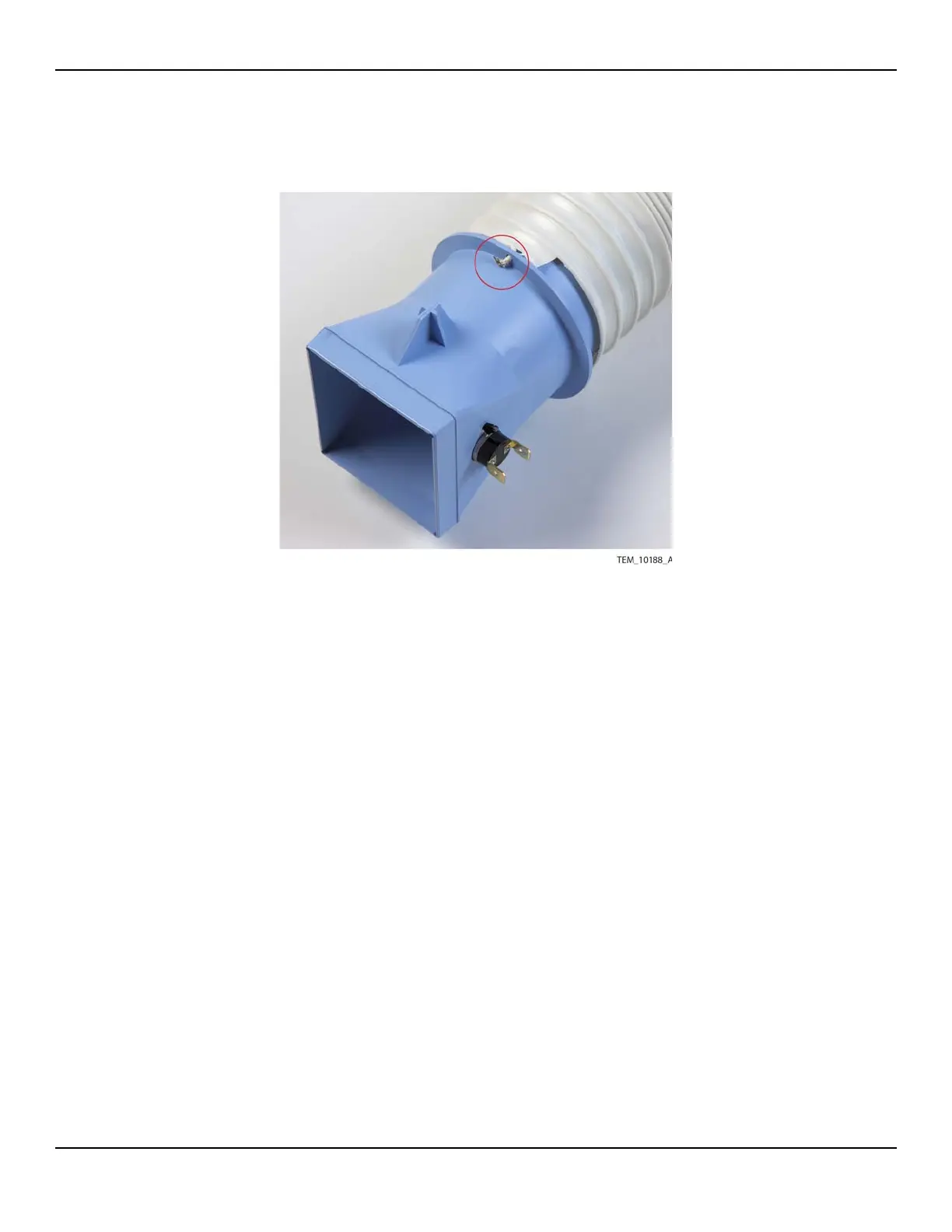

Figure11-25.Wire Attaching Hose to Hose Duct Adapter

7. Rotate the hose clockwise to disengage it from the duct adapter.

8. Remove the thermostat from the hose duct adapter as follows (Figure 11-26):

a. Locate the two rivets securing the thermostat to the duct adapter.

b. From the outside of the duct adapter, use a small flat-blade screwdriver to

push the locking pin in each rivet inward until the rivet releases.

c. Remove the thermostat and rivets.
