Enclosure Replacement

12-2 Service Manual

12.3 Front Enclosure Replacement

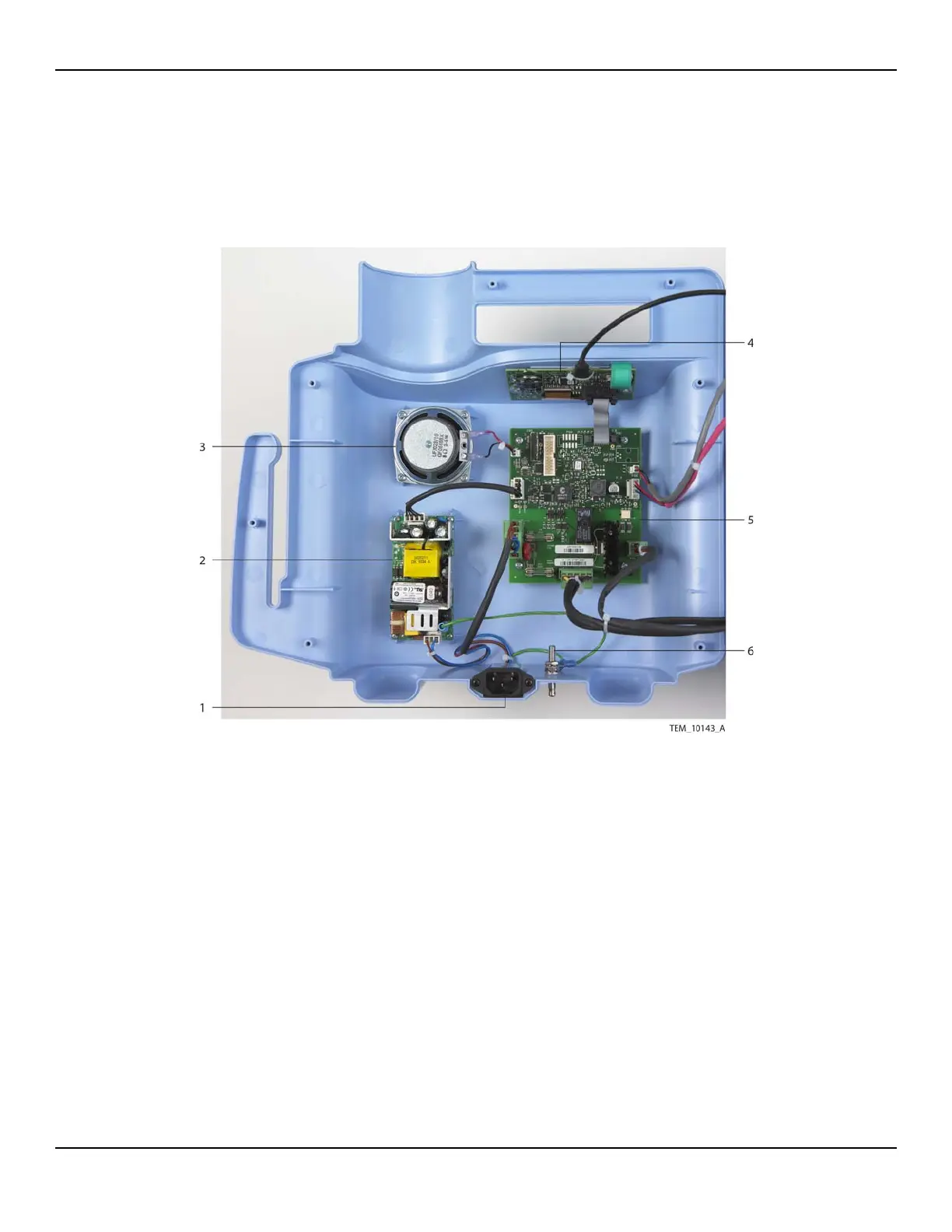

Figure12-1.Front Enclosure – Components to be Removed/Reinstalled

Requirements:

• WT-CWU Front Enclosure Kit (page A-6)

• Torque driver with #1 and #2 Phillips bits and 11/32” and 10mm hex sockets

• 10 mm open-end or box wrench

• Wire cutters and cable tie (some warming unit configurations)

1 AC Power Inlet 4 UI PCBA and Display

2 Power Supply 5 Power PCBA

3 Speaker 6 Equipotential Stud
