Rear Enclosure Replacement

Service Manual 12-19

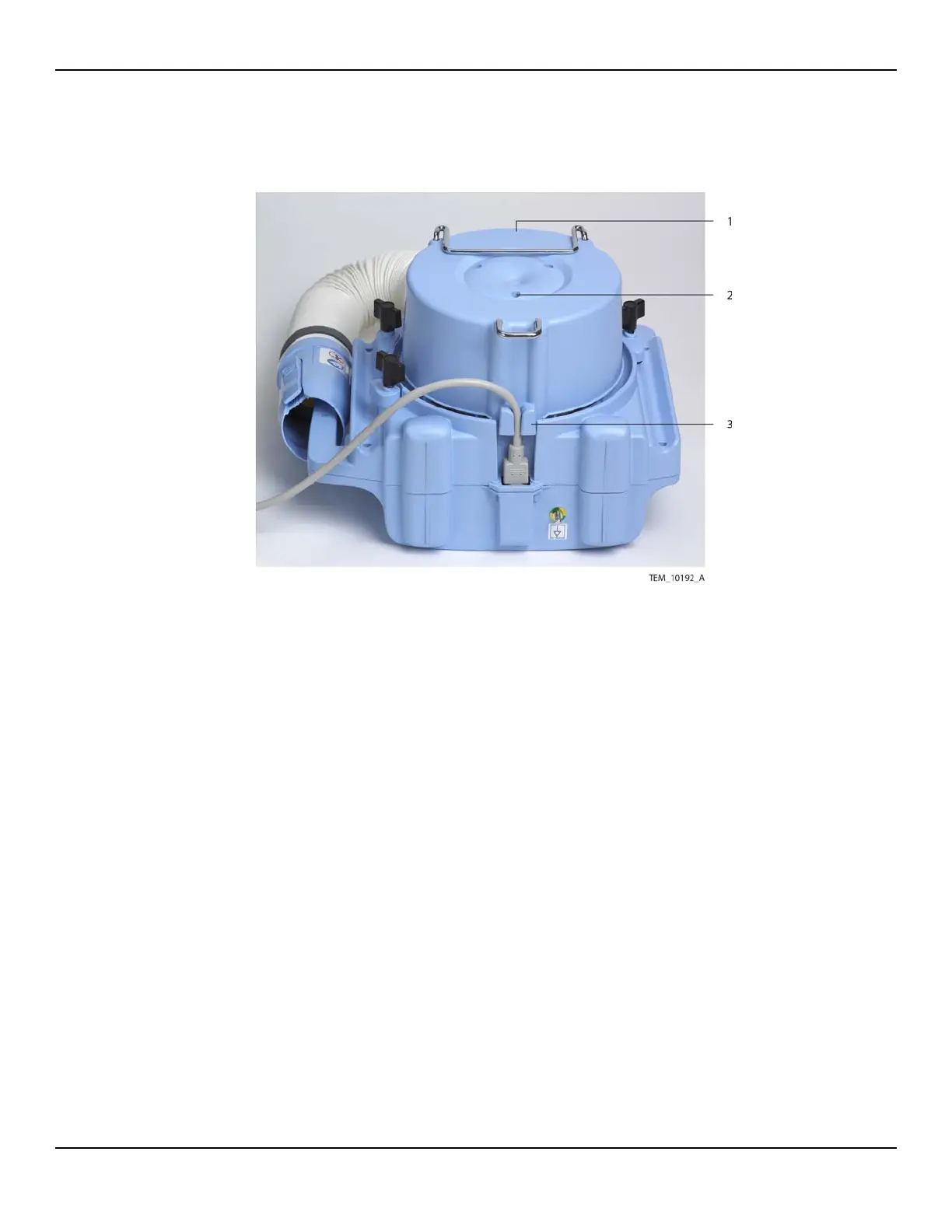

Figure12-14.Filter Enclosure and Power Cord Connection

3. Follow the procedure Separating the Front and Rear Enclosures on page 9-2.

4. Disconnect the following cables from the Power PCBA (Figure 12-15):

a. Disconnect the thermistor cable from the 2-pin P108 connector.

b. Disconnect the fan cable from the 4-pin P111 connector.

c. Disconnect the thermostat cable from the 2-pin P113 connector.

d. Disconnect the heater cable from the 5-pin P114 connector.

1 Filter Enclosure 3 Power Cord Routing Bracket

2 Filter Enclosure Screws (x3)
