Covidien WarmTouch - Figure 12-12 Rear Enclosure (Inside)

To Next Page

To Previous Page

Enclosure Replacement

12-16 Service Manual

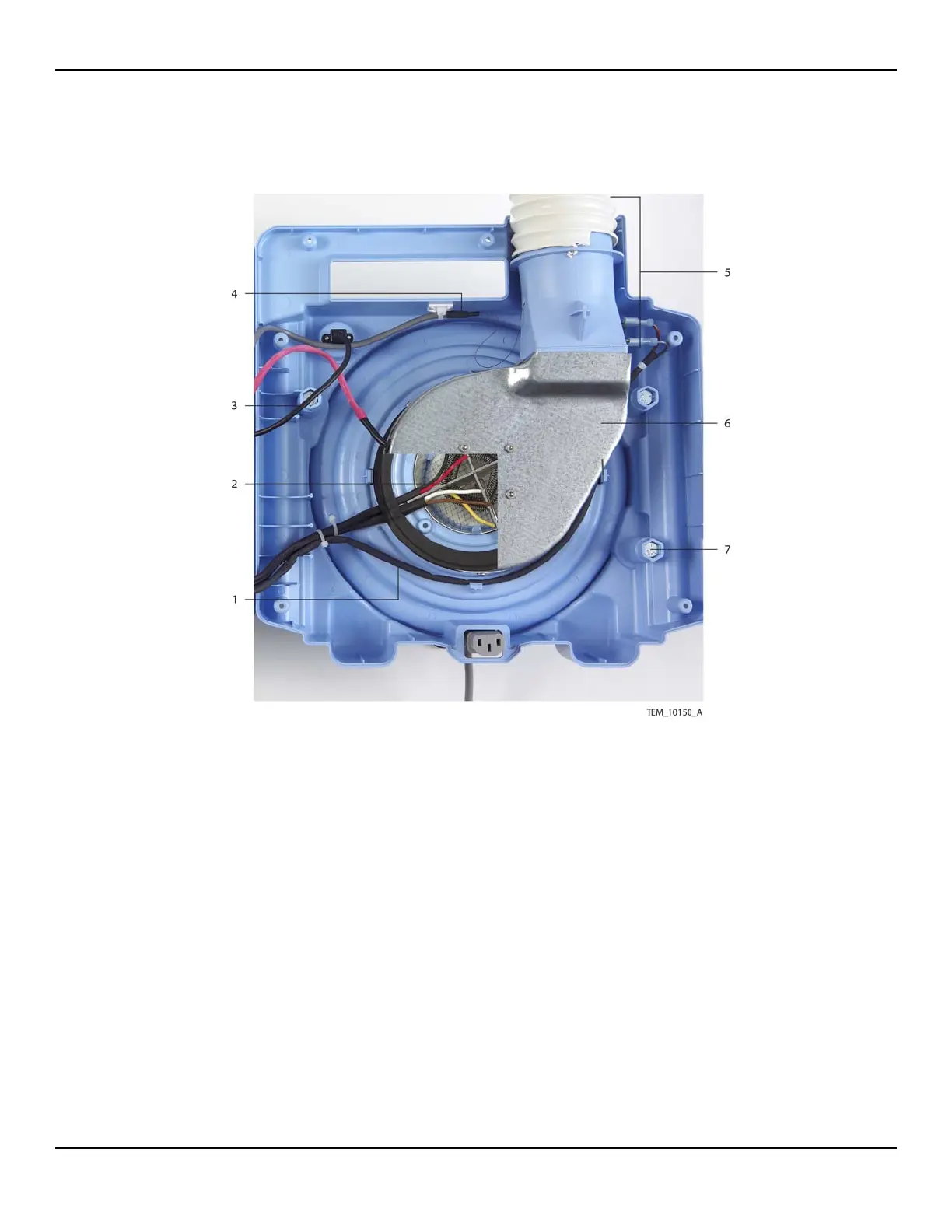

Figure12-12.Rear Enclosure (Inside) – Components to be Removed/Reinstalled

1 Thermostat Cable 5 Hose Duct Adapter, Hose, and

Thermostat

2 Heater Assembly

(below Fan Assembly)

6Fan Assembly

3 USB Cable 7 Pole Clamp Mounting Bolt (x3)

4 Thermistor Cable
