Covidien WarmTouch - Figure 11-4 Attaching Rivet to Thermistor Wire; Figure 11-5 Inserting Thermistor Wire and Rivet

Internal Component Replacement (Inside Rear Enclosure)
11-6 Service Manual

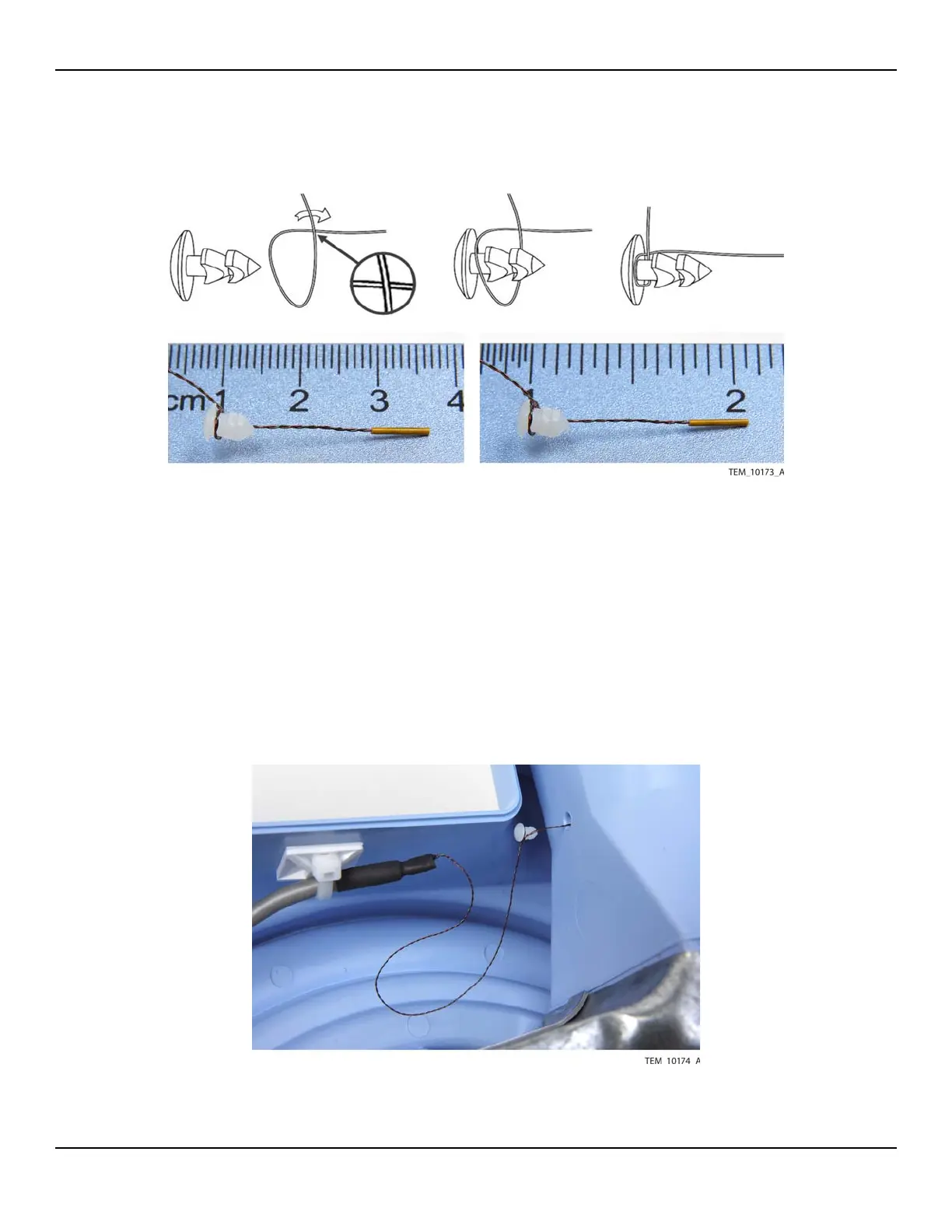

Figure11-4.Attaching Rivet to Thermistor Wire
 Caution:
Be careful when moving the hose duct adapter. The connected thermistor
wire can break if too much stress is applied to it.
8. Position the thermistor in the hose duct adapter as follows (Figure 11-5):
a. Make sure that the portion of wire between the rivet and the tip of the therm-
istor is straight.
b. Insert the wire and rivet into the hole on the side of the duct adapter until the
rivet snaps into place.
Figure11-5.Inserting Thermistor Wire and Rivet
