Covidien WarmTouch - Figure 12-6 Power PCBA Connections

To Next Page

To Previous Page

Front Enclosure Replacement

Service Manual 12-7

g. Remove the Power PCBA and save all components for installation in the new

enclosure.

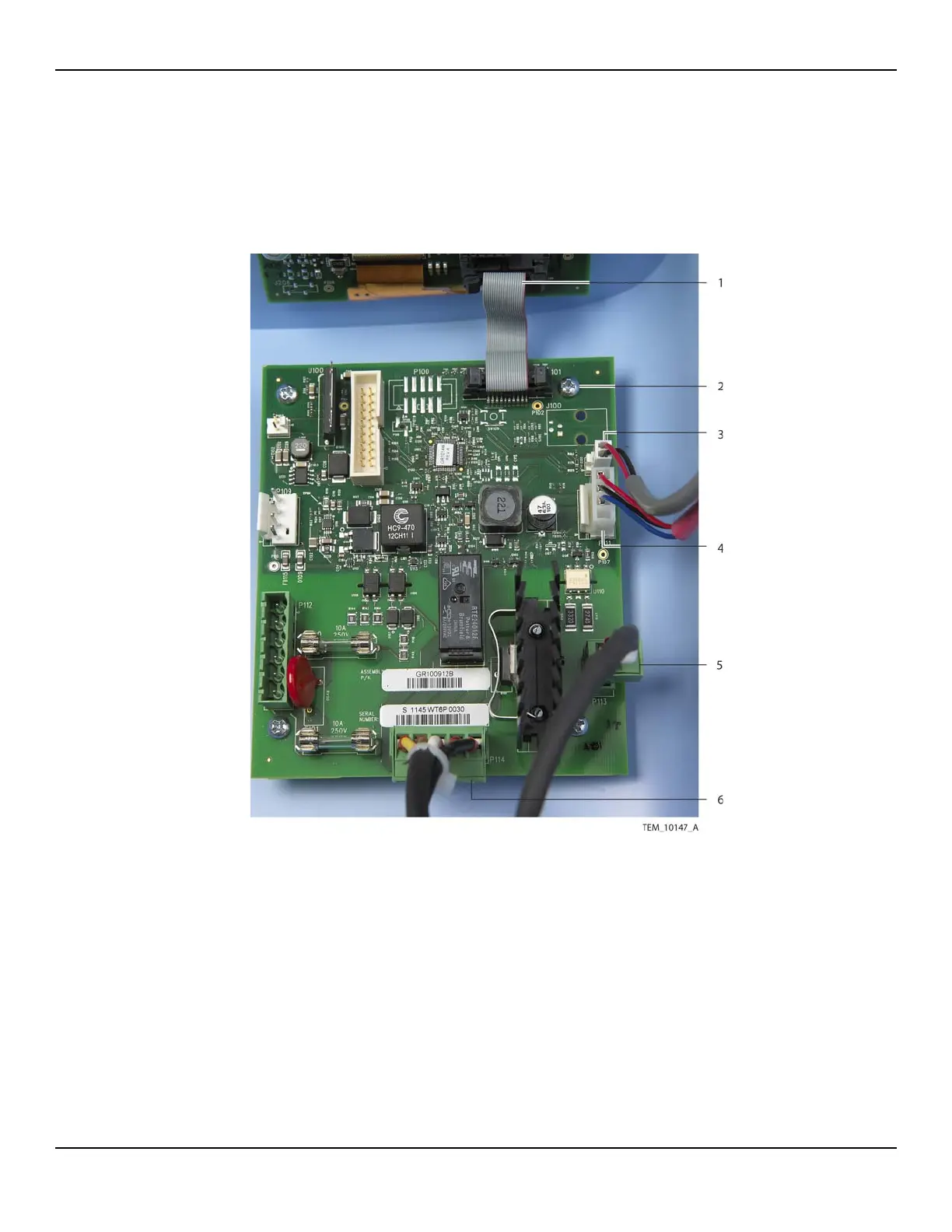

Figure12-6.Power PCBA Connections

1 Ribbon Cable

(P204 Connection)

4 Fan Cable

(P111 Connection)

2 Power PCBA Screw (x4) 5 Thermostat Cable

(P113 Connection)

3 Thermistor Cable

(P108 Connection)

6 Heater Cable

(P114 Connection)
