Separating the Front and Rear Enclosures

Service Manual 9-3

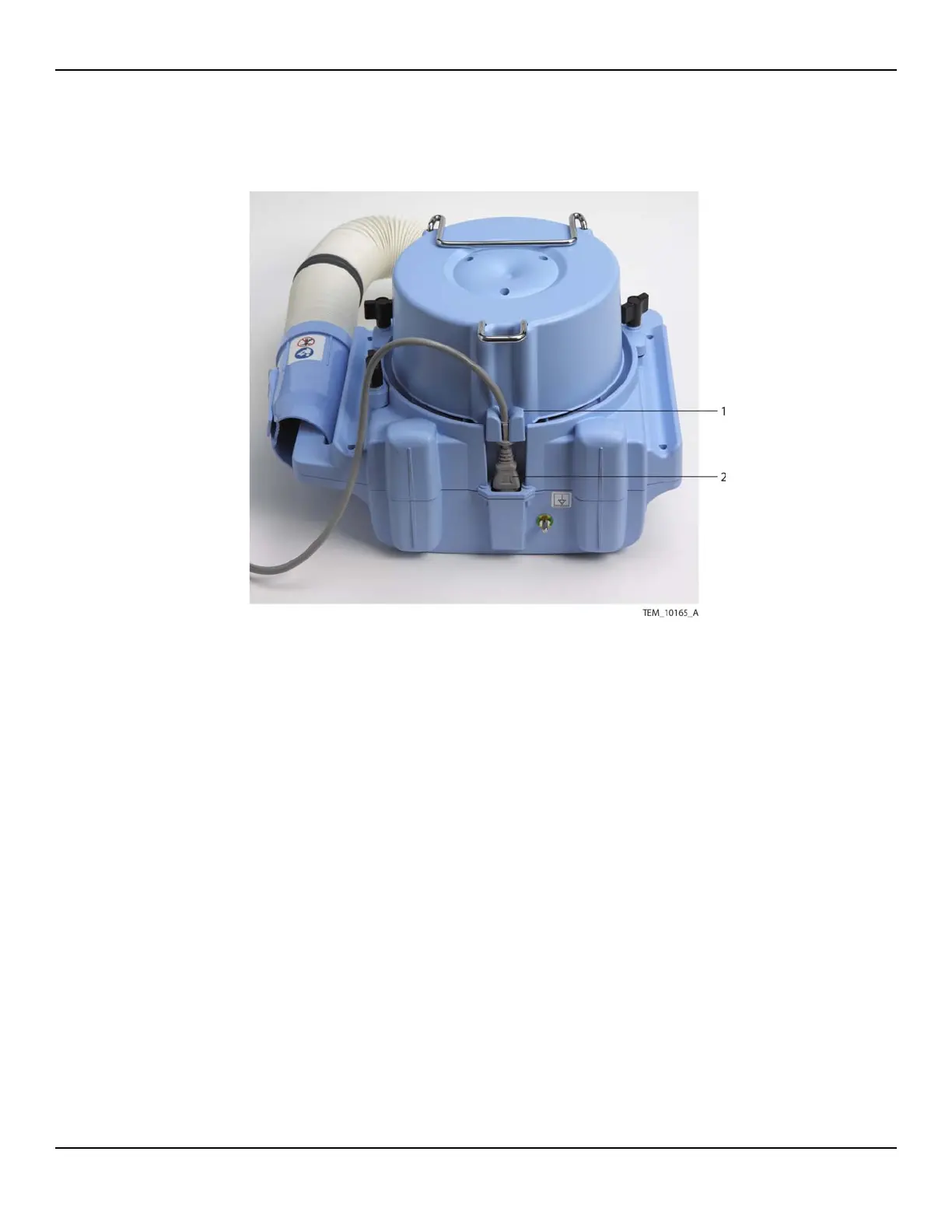

Figure9-2.Power Cord Connection

3. Optional Step: Disengage the power cord from its routing bracket and remove it

from the socket.

4. Remove the seven screws securing the rear enclosure to the front enclosure

(Figure 9-3). Note that one of the screws is located in the nozzle hook that secures

the hose when not in use.

1 Power Cord Routing Bracket 2 Power Cord Connector
