Enclosure Replacement

12-28 Service Manual

 Caution:

Be careful when moving the hose duct adapter. The connected thermistor

wire can break if too much stress is applied to it.

23. Position the hose duct adapter and hose at the hose opening in the enclosure,

making sure that the thermostat is facing toward the side of the enclosure with

the hose hook (Figure 12-24).

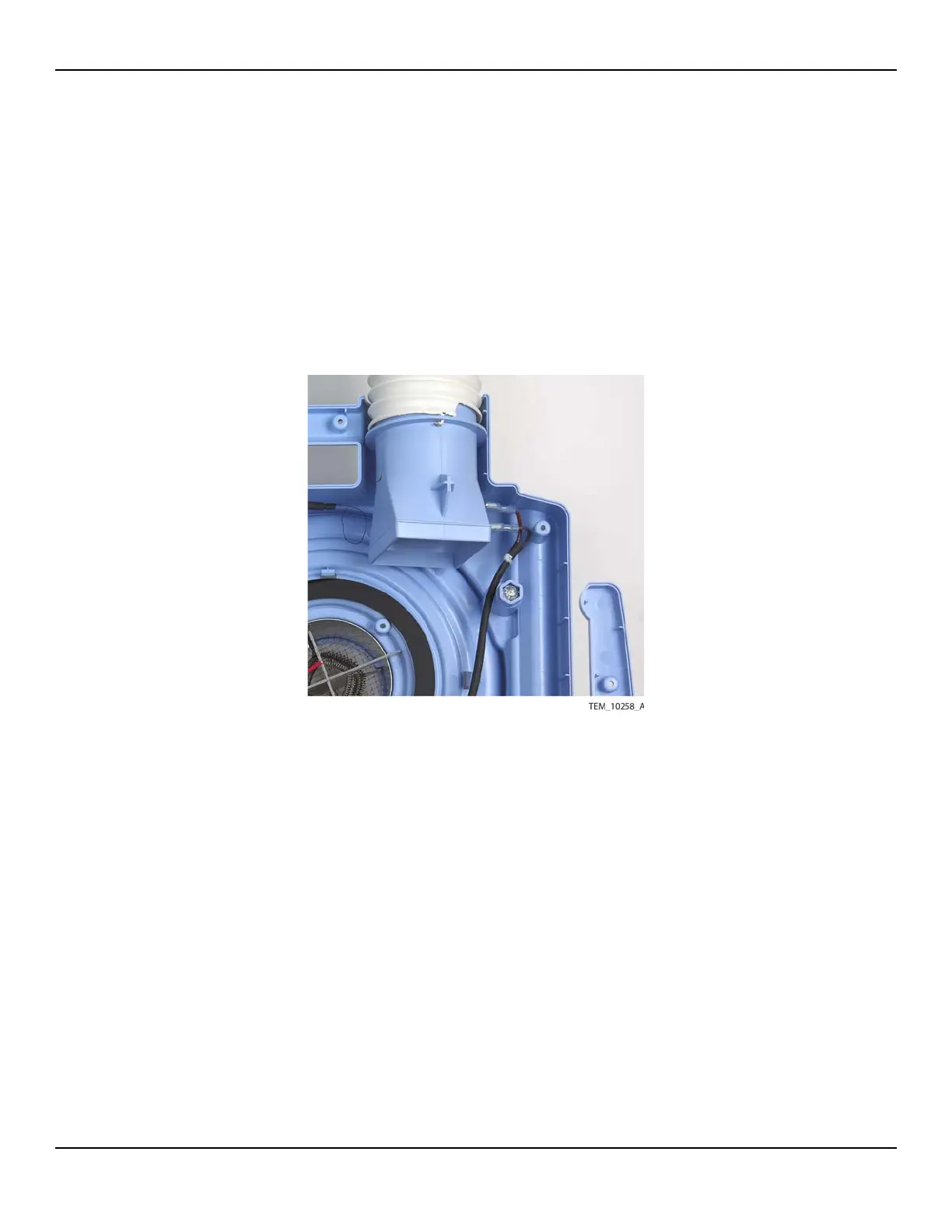

Figure12-24.Position of Hose Duct Adapter

24. Position the fan assembly in the enclosure as shown in Figure 12-12 on

page 12-16.

25. Insert the top edge of the hose duct adapter into the duct and rotate the adapter

downward until it drops into place (Figure 12-25).
