Hose Duct Adapter Replacement

Service Manual 11-31

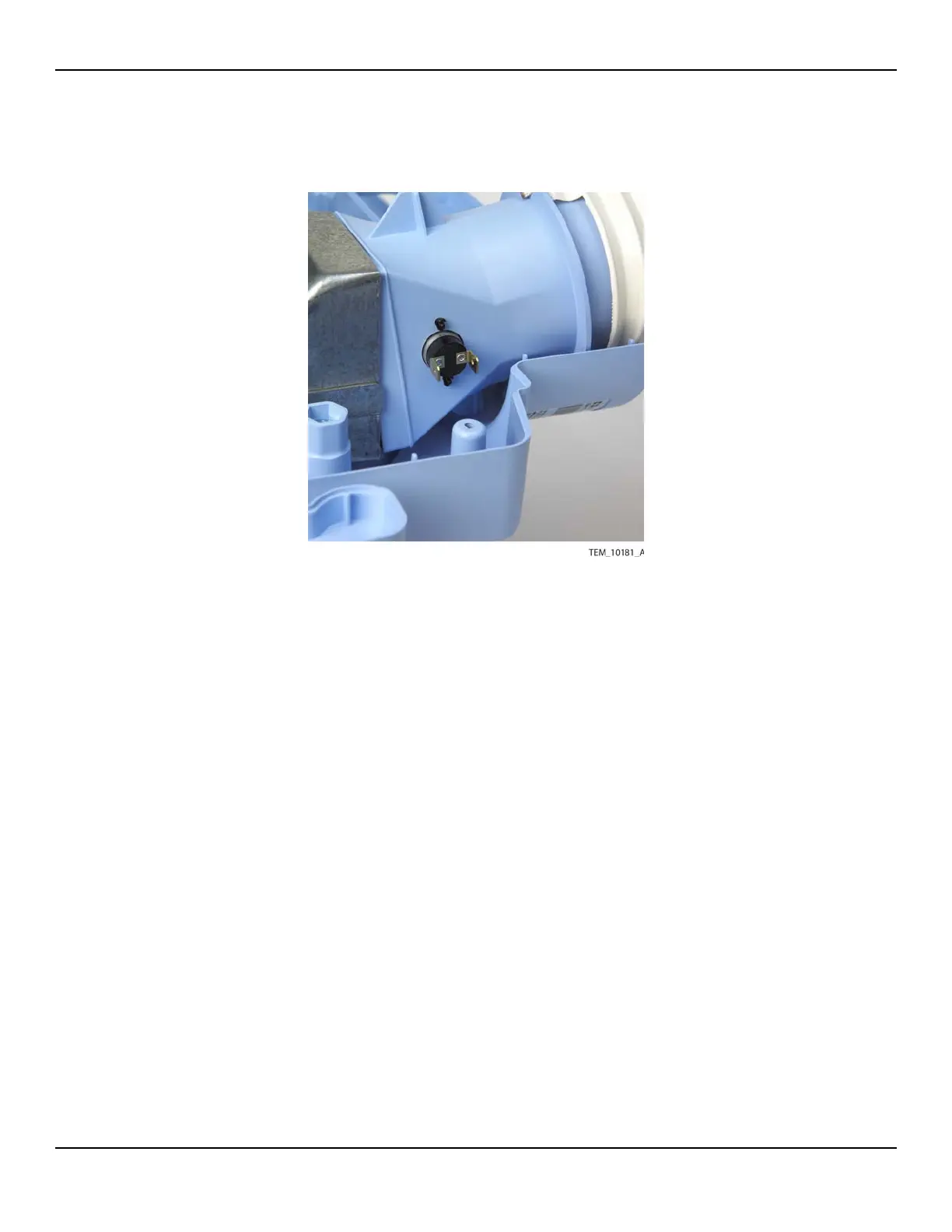

Figure11-28.Inserting the Hose Duct Adapter

 Caution:

The thermistor is very delicate and easily damaged. Use extreme care

when working with the thermistor sensor assembly.

12. Position the thermistor in the hose duct adapter as follows (Figure 11-29):

a. Make sure that the portion of wire between the rivet and the tip of the therm-

istor is straight.

b. Insert the wire and rivet into the hole on the side of the duct adapter until the

rivet snaps into place.
