Covidien WarmTouch - 10.13 Power Supply Replacement

To Next Page

To Previous Page

Power Supply Replacement

Service Manual 10-43

10.13 Power Supply Replacement

The power supply requires proper disposal in accordance with WEEE Directive.

Do not dispose of this item as unsorted municipal waste.

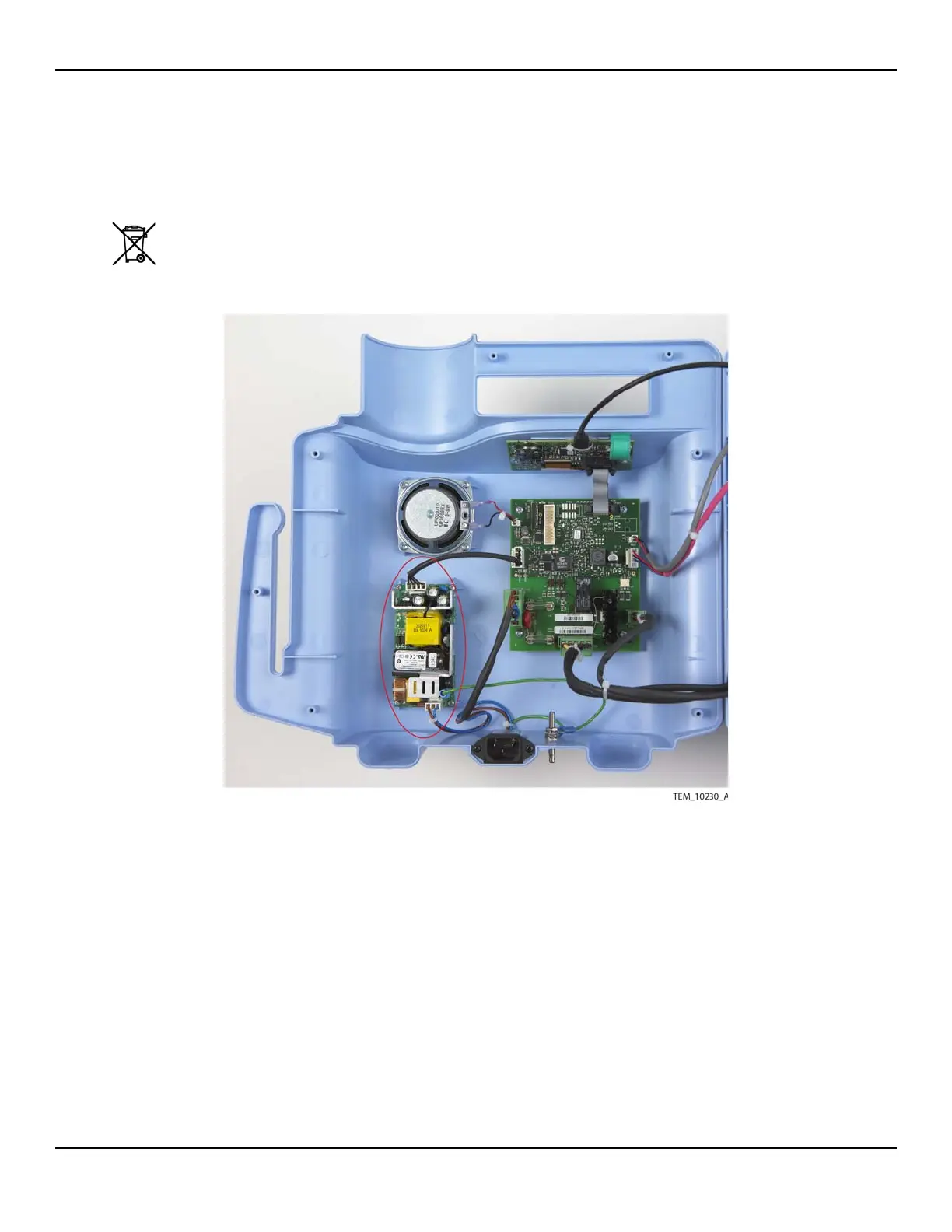

Figure10-31.Power Supply

Requirements:

• WT-CWU Pwr Supply Kit (page A-4)

• Torque driver with #1 and #2 Phillips bits

• Wire cutters and cable tie (some warming unit configurations)

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
