Front Enclosure Replacement

Service Manual 12-5

4. Remove the power supply from the enclosure as follows (Figure 12-4):

a. Disconnect the power supply output cable from the 4-pin P109 connector on

the Power PCBA. (Leave this cable connected to the power supply.)

b. Remove the four screws securing the power supply to the enclosure.

c. Remove the power supply and save all components for installation in the new

enclosure.

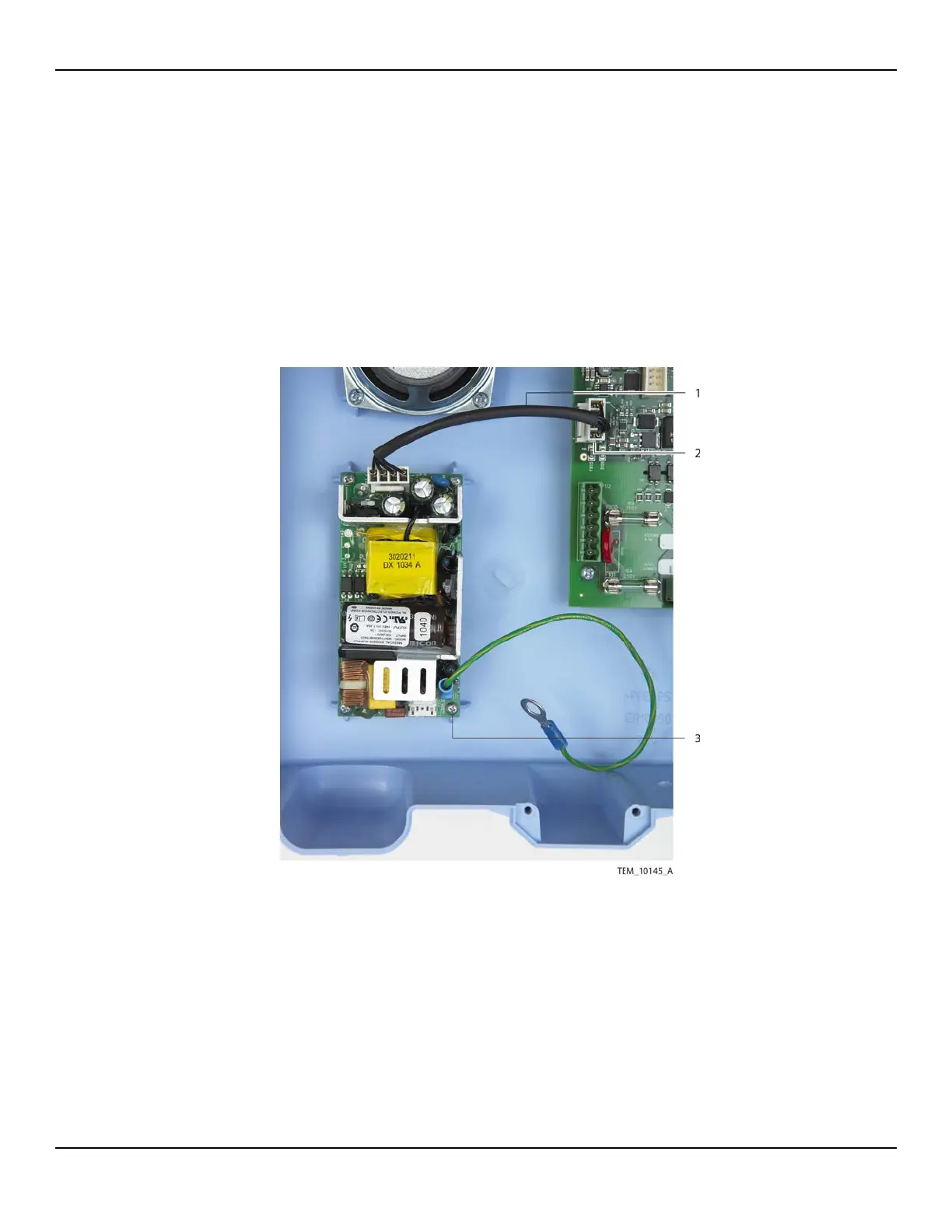

Figure12-4.Power Supply Connections

1 Power Supply Output Cable 3 Power Supply Screw (x4)

2 P109 Connection

(Power PCBA)
