Enclosure Replacement

12-20 Service Manual

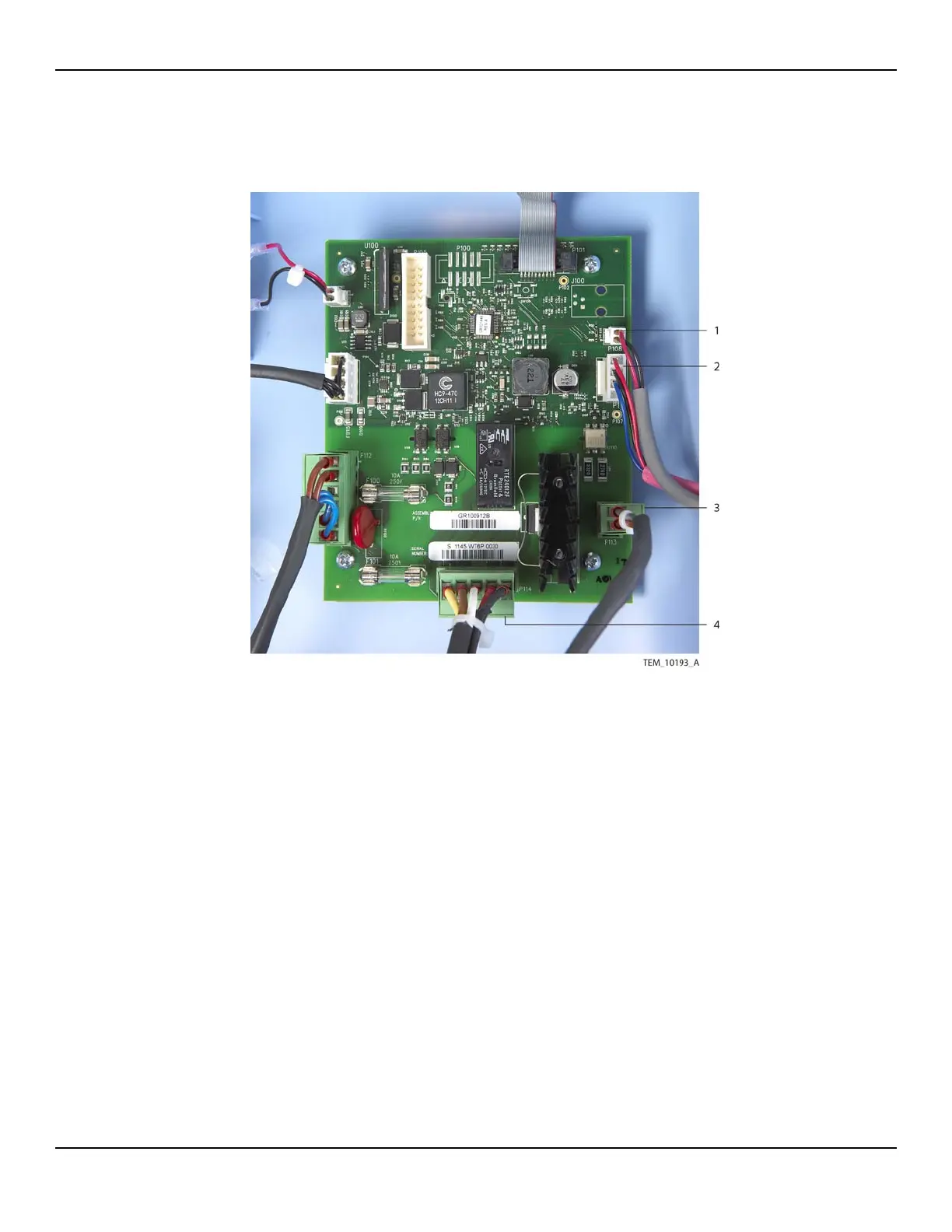

Figure12-15.Power PCBA Connections

5. Carefully cut and remove the following cable ties (Figure 12-16):

a. Remove the cable tie securing the fan cable to the thermistor cable.

b. Remove the cable tie securing the thermistor cable to the tie mount on the

enclosure.

c. Remove the two cable ties securing the heater cable to the thermostat cable.

1 Thermistor Cable

(P108 Connection)

3 Thermostat Cable

(P113 Connection)

2 Fan Cable

(P111 Connection)

4 Heater Cable

(P114 Connection)
