Installation

3-8 Service Manual

3.4.2 Bed Installation

The warming unit can be attached to a bed that has a mounting surface up to

3.6 cm (1.4 inches) wide. Typically, the unit is attached to the bed’s head board

or foot board.

To attach the warming unit to a bed:

1. Locate the bed hook on the back of the warming unit. Reference Figure 2-2 on

page 2-4. The hook slides in and out to accommodate different mounting surface

widths.

2. Hang the bed hook over the mounting surface to attach the warming unit to the

bed.

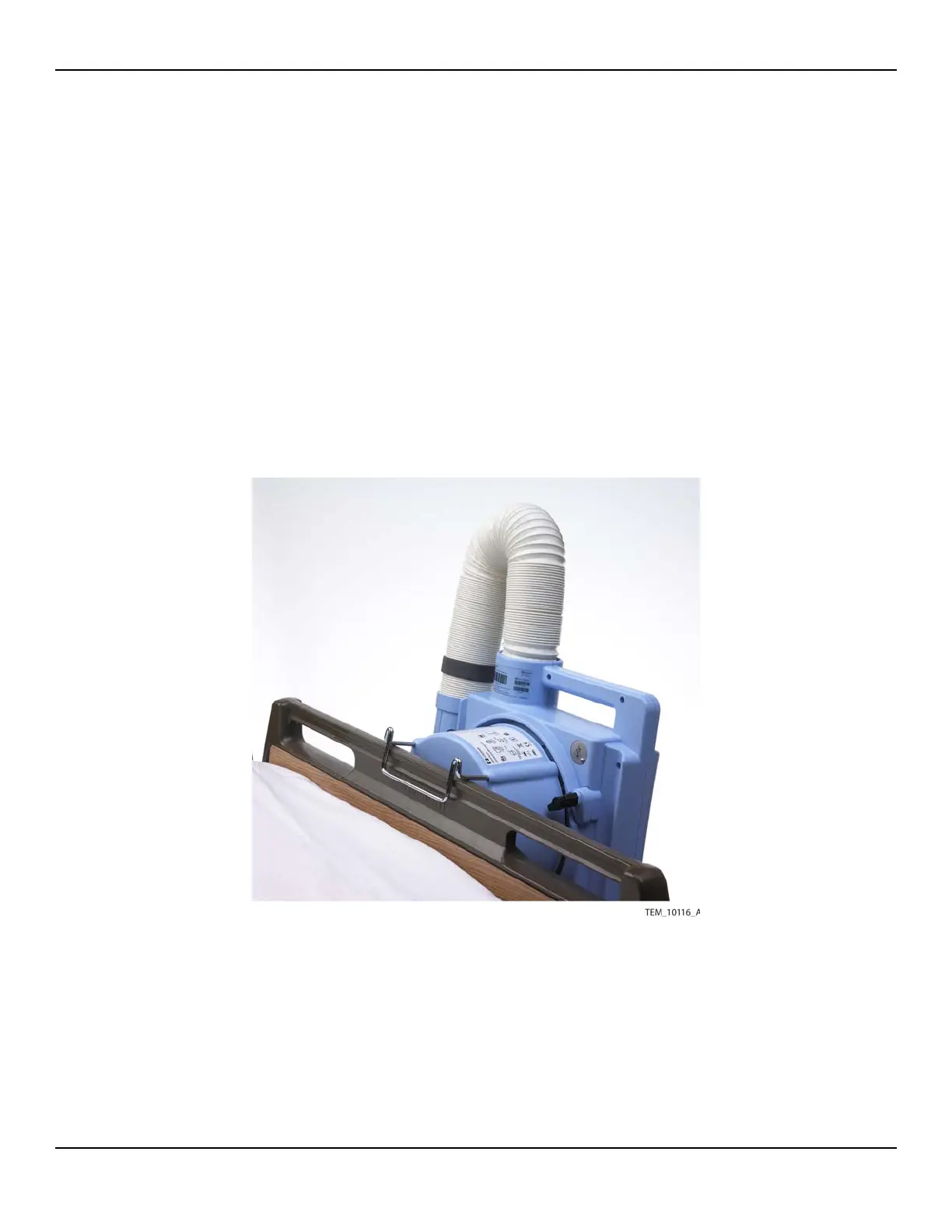

Figure3-6.Bed Installation
