Internal Component Replacement (Inside Front Enclosure)

10-40 Service Manual

10.12 Speaker Cable Replacement

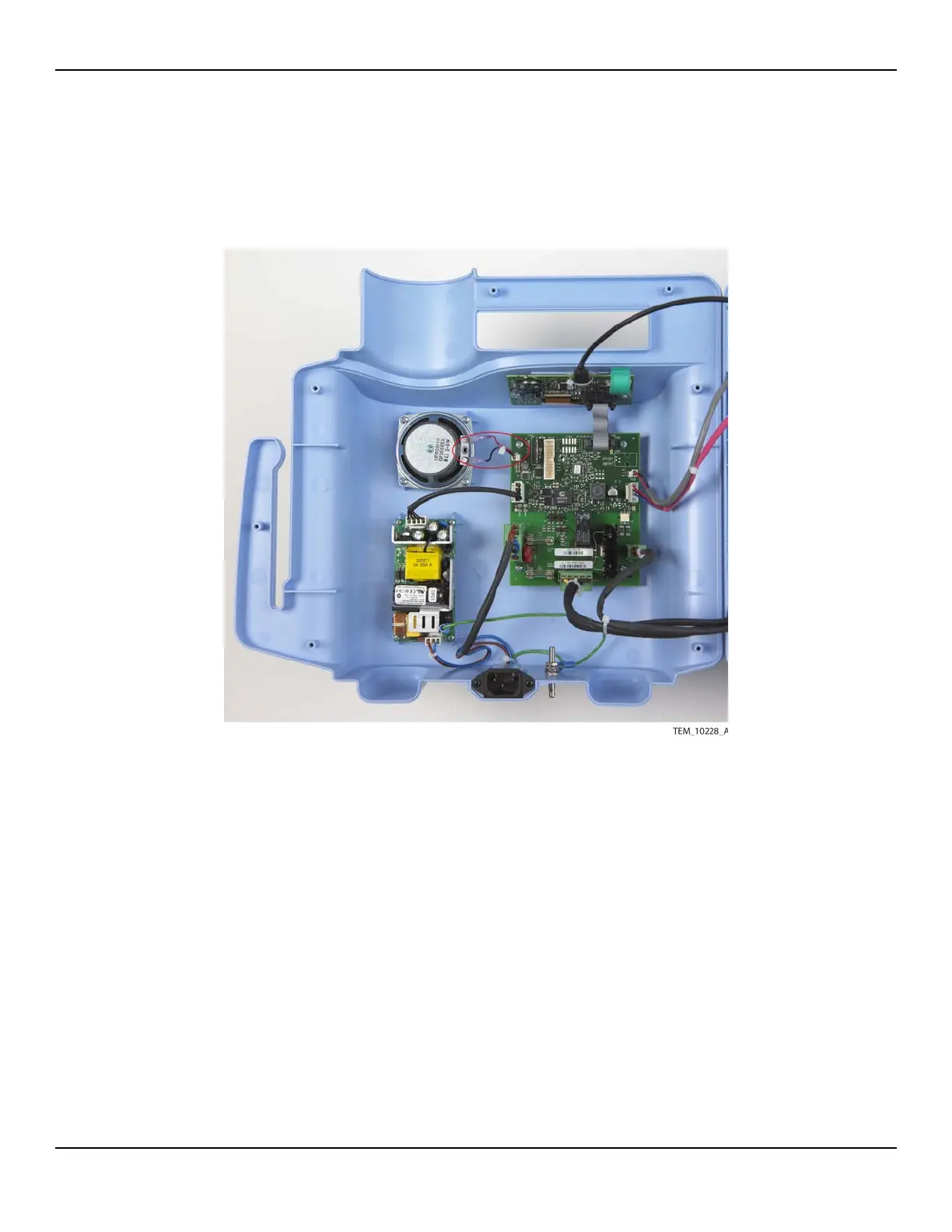

Figure10-29.Speaker Cable

Requirements:

• WT-CWU Speaker Cable Kit (page A-4)

• Torque driver with #2 Phillips bit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
