Covidien WarmTouch - Figure 8-2 Pole Clamp Foot and Knob

Pole Clamp Replacement
Service Manual 8-3
To replace a pole clamp:
1. At the back of the unit, completely loosen the knob on the clamp to be replaced,
and remove it from the mounting bolt (Figure 8-2).

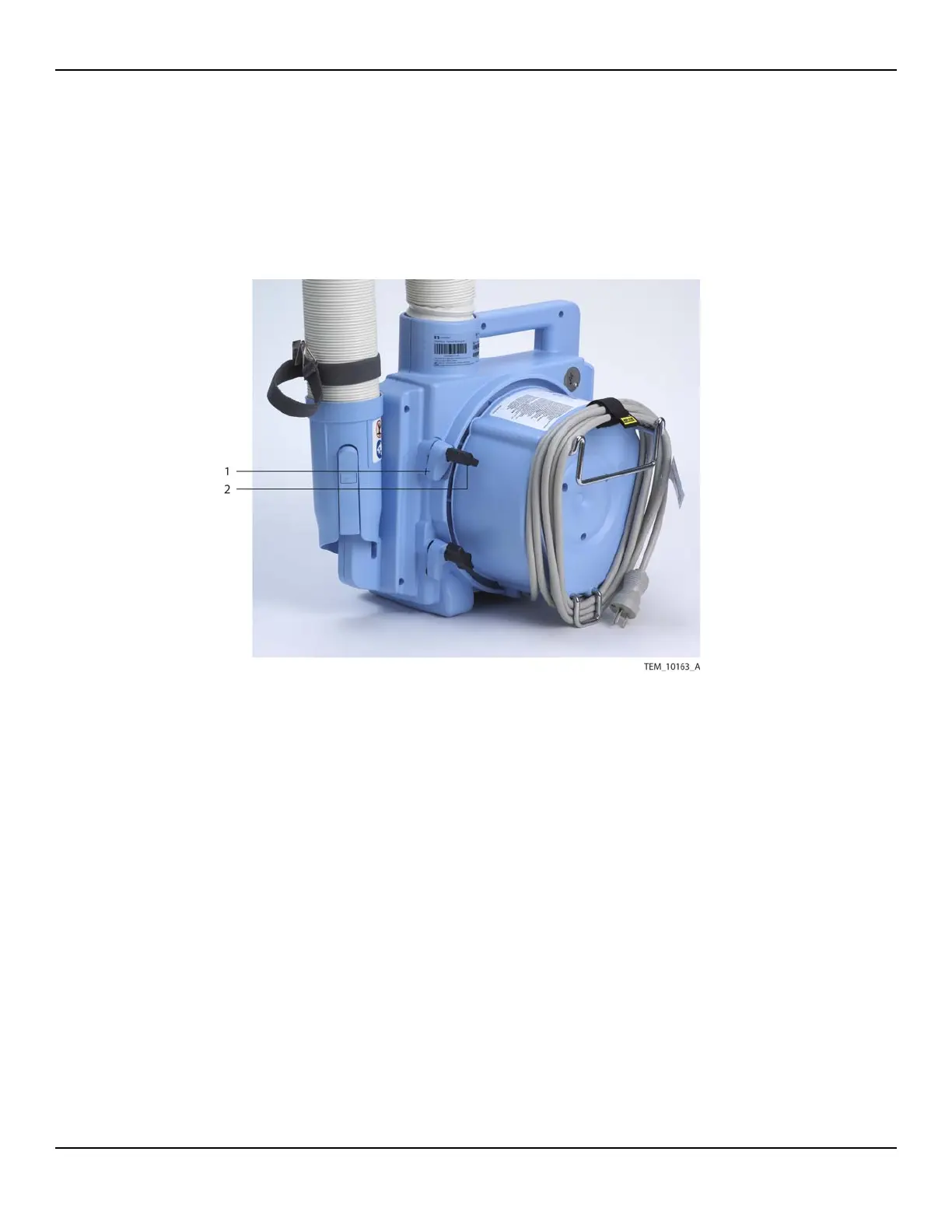

Figure8-2.Pole Clamp Foot and Knob
2. Slide the clamp foot off the bolt.
3. Slide the new clamp foot onto the bolt, making sure that the rubber pad is toward
the unit.
4. Place the new knob on the bolt and tighten it until the clamp foot is secure. Do
not overtighten.
1 Clamp Foot (x3) 2 Clamp Knob (x3)
