Covidien WarmTouch - Figure 11-42 Filter Enclosure and Screws

Heater Assembly Replacement
Service Manual 11-45
2. Remove the two screws securing the USB cable connector to the enclosure. Save
the screws.
3. Remove the filter enclosure and filter as follows (Figure 11-42):
a. If the power cord is secured around the back of the unit, unwind it completely.
b. Position the warming unit on its front so the bottom of the unit is accessible.
c. Remove the three screws from the filter enclosure. Lift the enclosure away
from the unit, disengaging the power cord from its socket.
d. Set the filter enclosure (with power cord attached), filter, and screws aside.

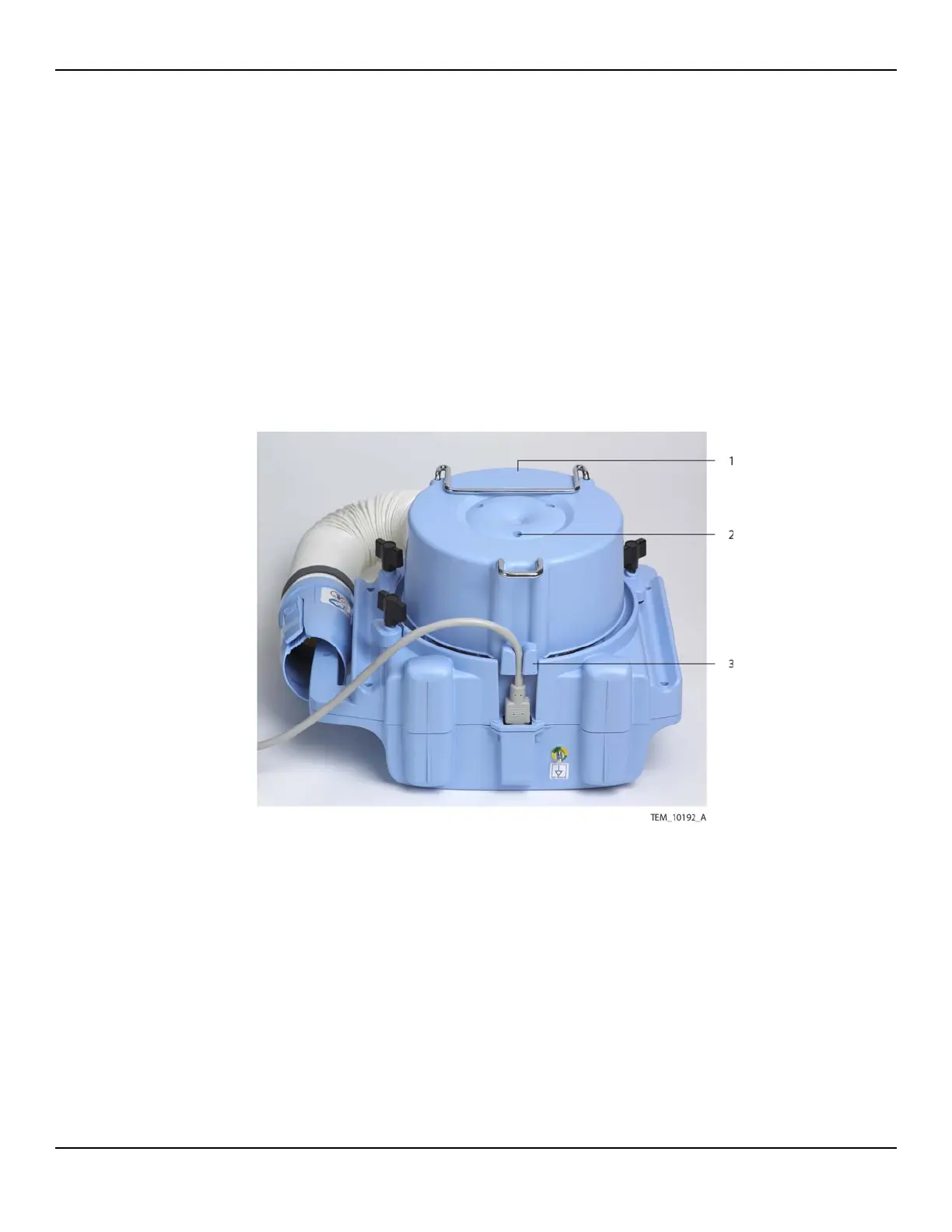

Figure11-42.Filter Enclosure and Screws
4. Follow the procedure Separating the Front and Rear Enclosures on page 9-2.
1 Filter Enclosure 3 Power Cord Routing Bracket
2 Filter Enclosure Screws (x3)
