Covidien WarmTouch - Figure 11-37 Inserting the Hose Duct Adapter; Figure 11-38 Securing the Hose Duct Adapter

To Next Page

To Previous Page

Internal Component Replacement (Inside Rear Enclosure)

11-40 Service Manual

12. Insert the top edge of the hose duct adapter into the duct and rotate the adapter

downward until it drops into place (Figure 11-37).

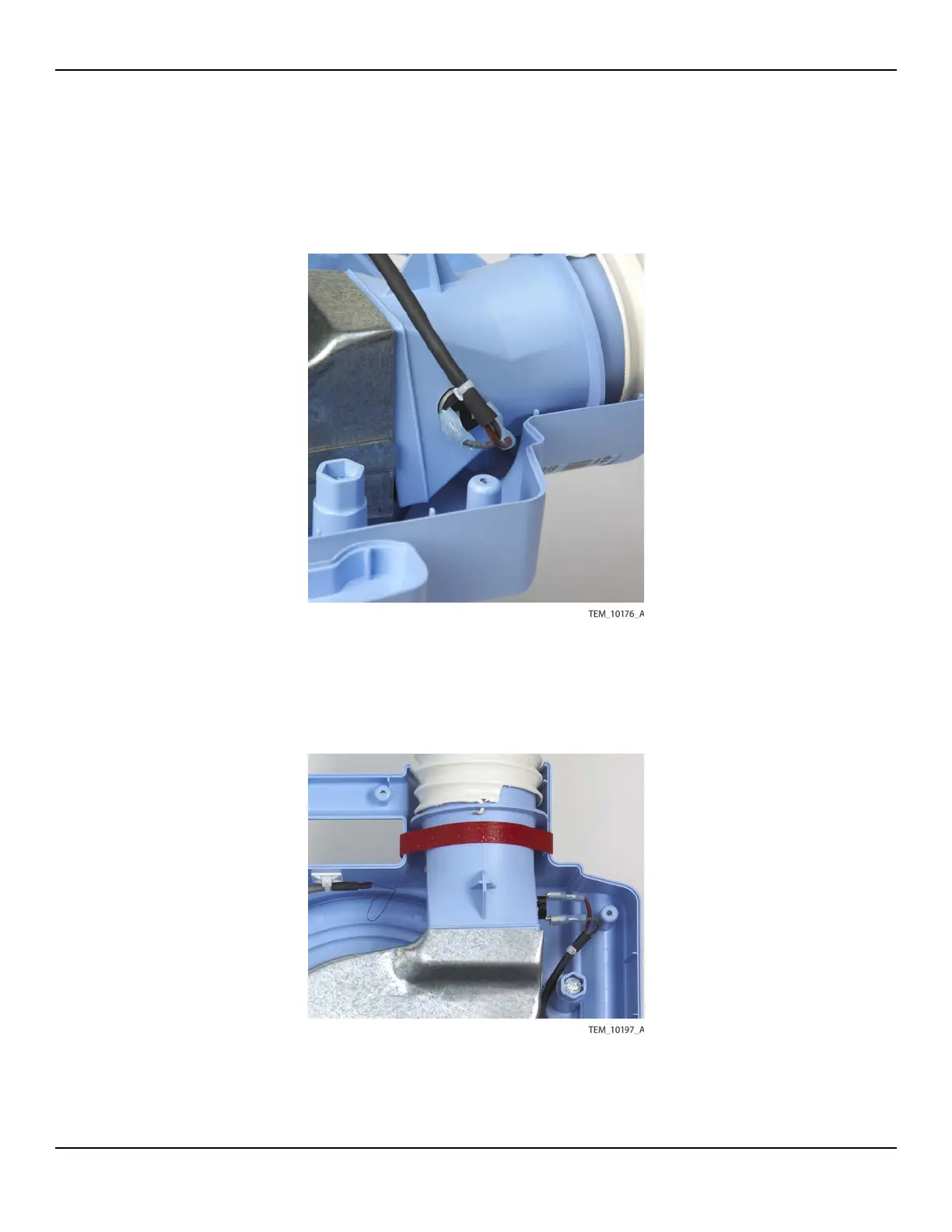

Figure11-37.Inserting the Hose Duct Adapter

13. Using a strap or cable tie, secure the hose duct adapter to the enclosure as shown

in Figure 11-38.

Figure11-38.Securing the Hose Duct Adapter
