7.5.4 Temperature Accuracy Test

Use the temperature accuracy test to verify that the unit’s output air tempera-

ture is within specification.

Requirements:

• Temperature probe (see page 7-2).

To perform the temperature accuracy test:

1. Perform steps 1 and 2 of the power-on test (page 7-3).

2. Fully compress the warming unit’s hose and position it vertically, nozzle facing up

(Figure 7-4).

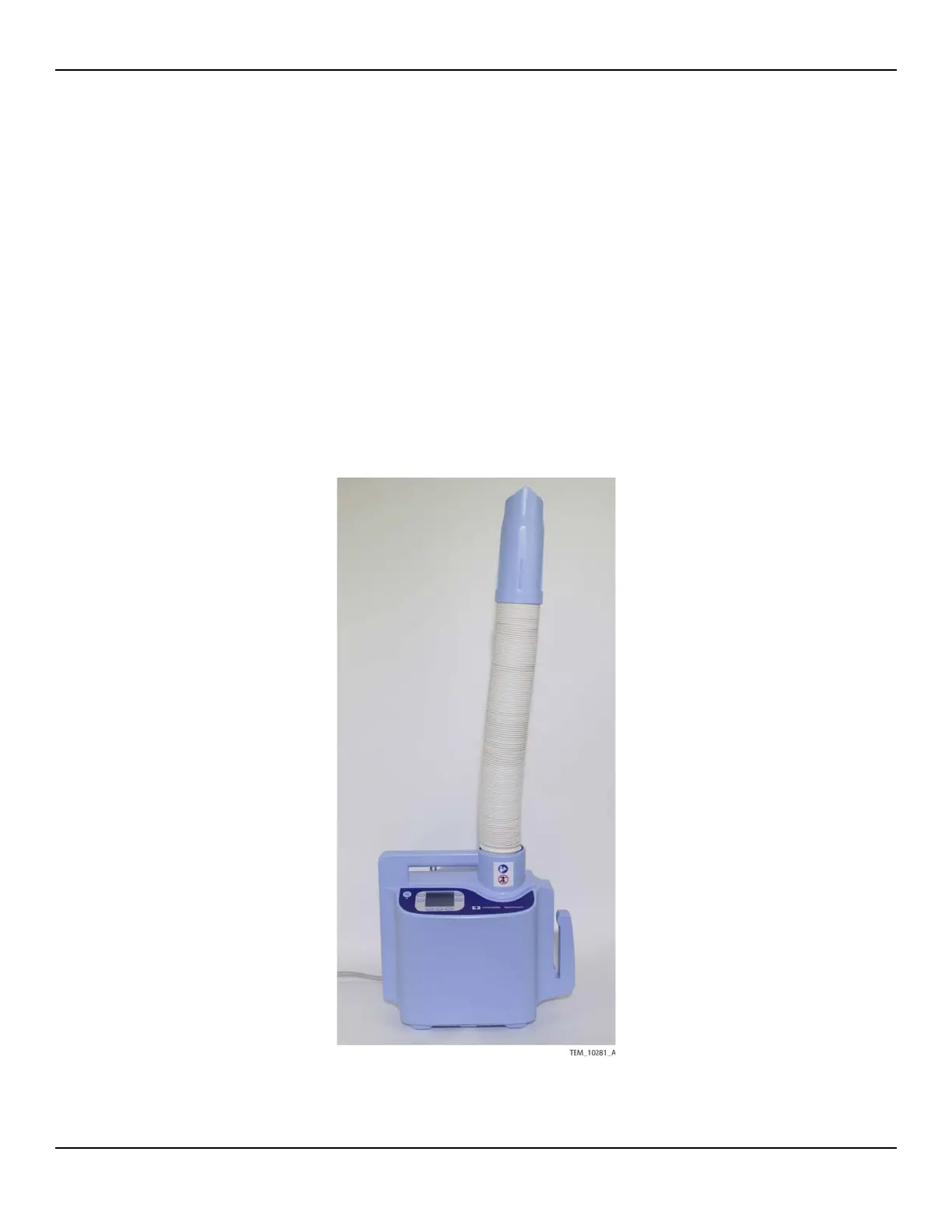

Figure7-4.Position of Hose for Temperature Accuracy Test
