Covidien WarmTouch - Figure 11-46 Fan Assembly Pulled for Heater Replacement

To Next Page

To Previous Page

Heater Assembly Replacement

Service Manual 11-49

11. Lift the fan assembly out of the unit and set it near the handle (Figure 11-46).

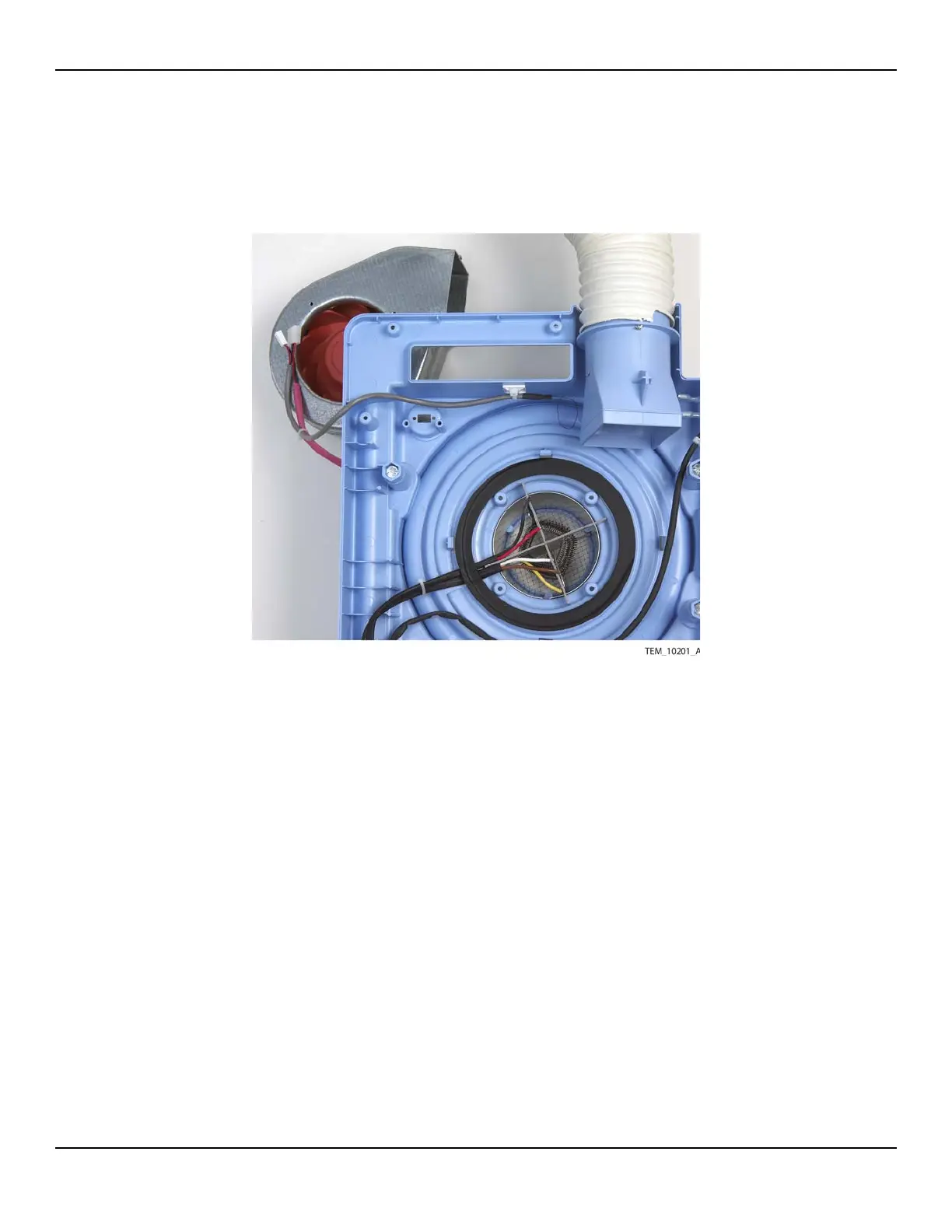

Figure11-46.Fan Assembly Pulled for Heater Replacement
