Hose Duct Adapter Replacement

Service Manual 11-25

11.8 Hose Duct Adapter Replacement

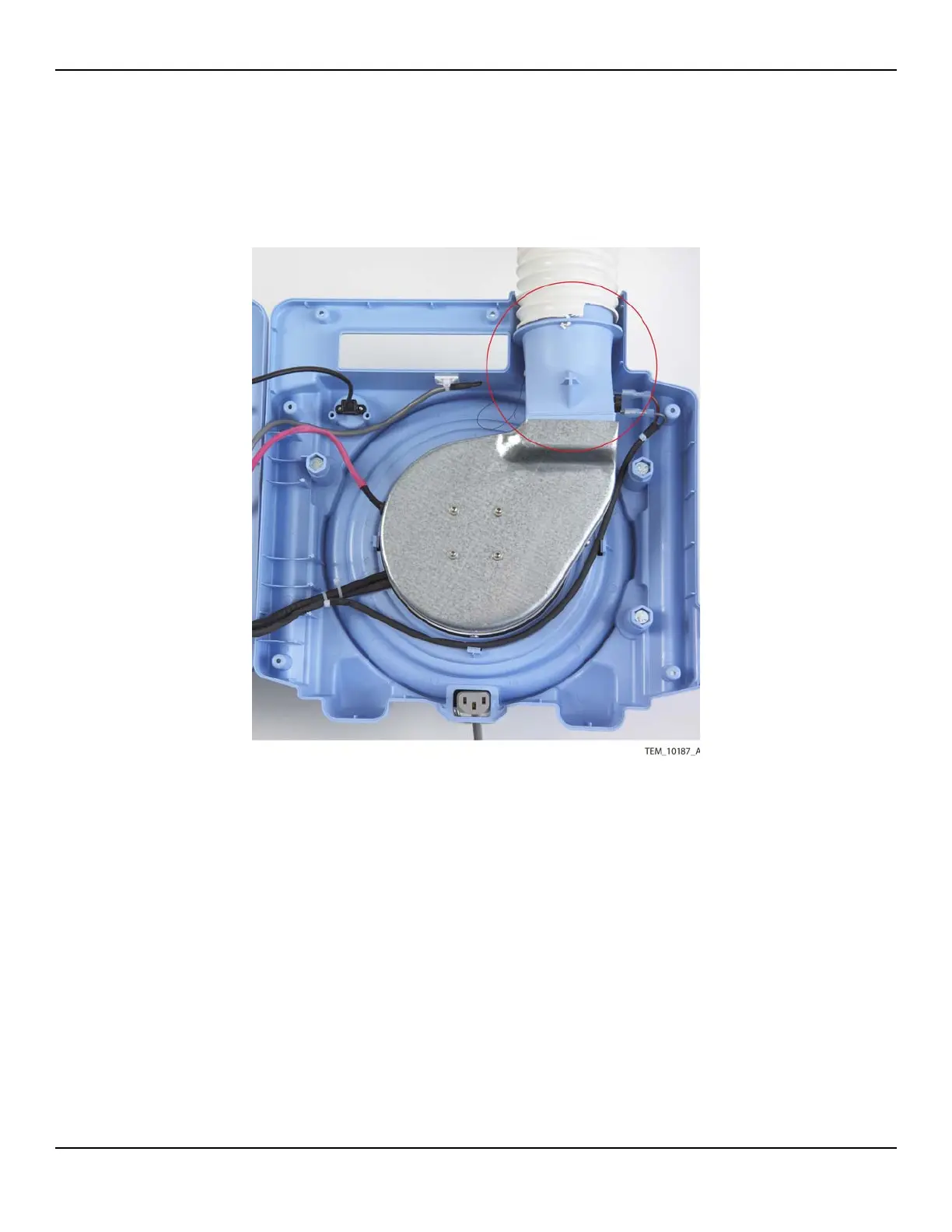

Figure11-22.Hose Duct Adapter

Requirements:

• WT-CWU Hose Duct Adapter Kit (page A-5)

• Torque driver with #2 Phillips bit

• Small flat-blade screwdriver

• Pliers

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
