Covidien WarmTouch - 10.8 Clock Battery Replacement

To Next Page

To Previous Page

Clock Battery Replacement

Service Manual 10-29

10.8 Clock Battery Replacement

The battery requires proper disposal in accordance with WEEE Directive. Do not

dispose of this item as unsorted municipal waste.

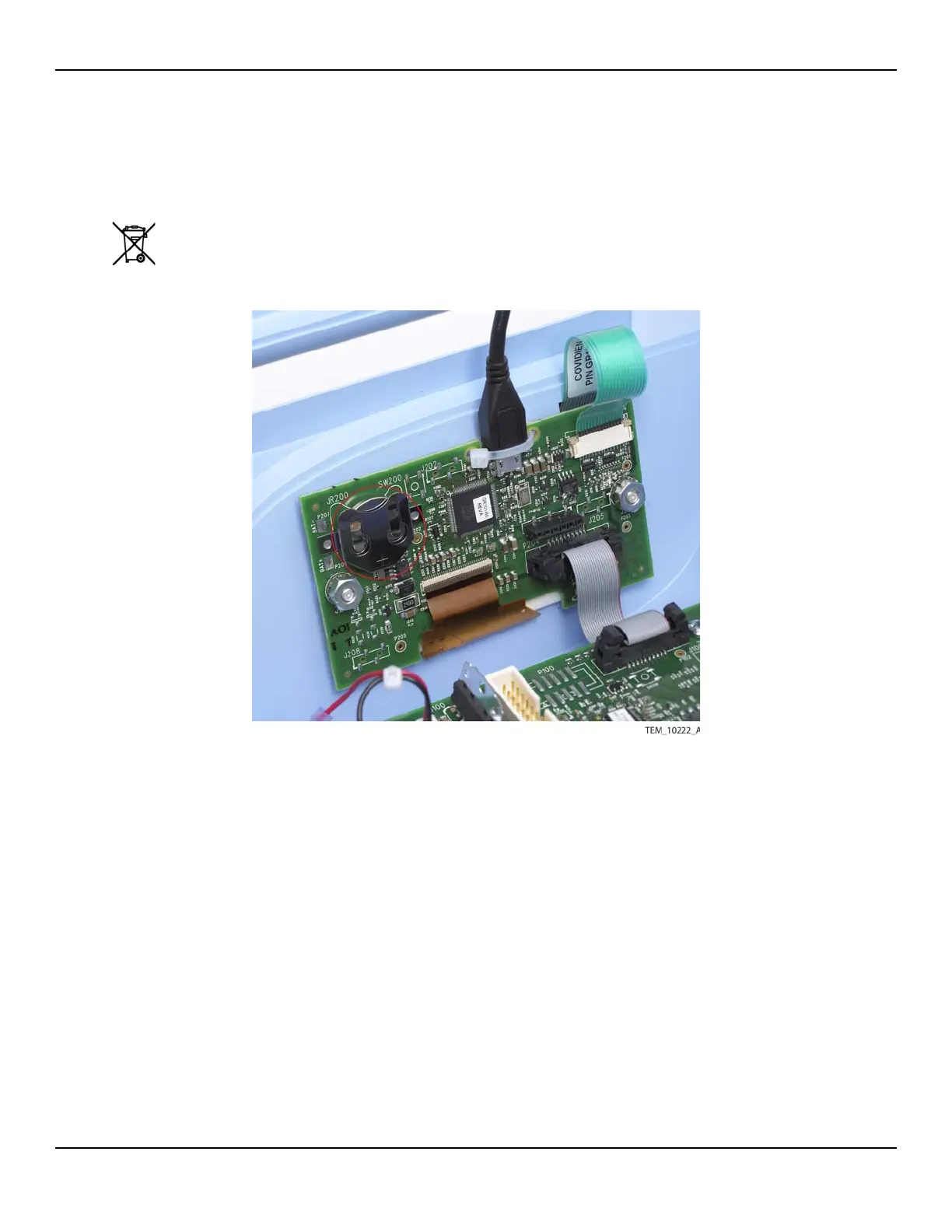

Figure10-23.Clock Battery on UI PCBA

Requirements:

• 3V CR 2032, lithium-ion coin-cell battery

• Torque driver with #2 Phillips bit

• Non-metallic stylus or similar tool

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
