Covidien WarmTouch - Figure 11-34 Fan Assembly Screws

To Next Page

To Previous Page

Fan Assembly Replacement

Service Manual 11-37

7. Remove the four screws securing the fan assembly to the rear enclosure

(Figure 11-34).

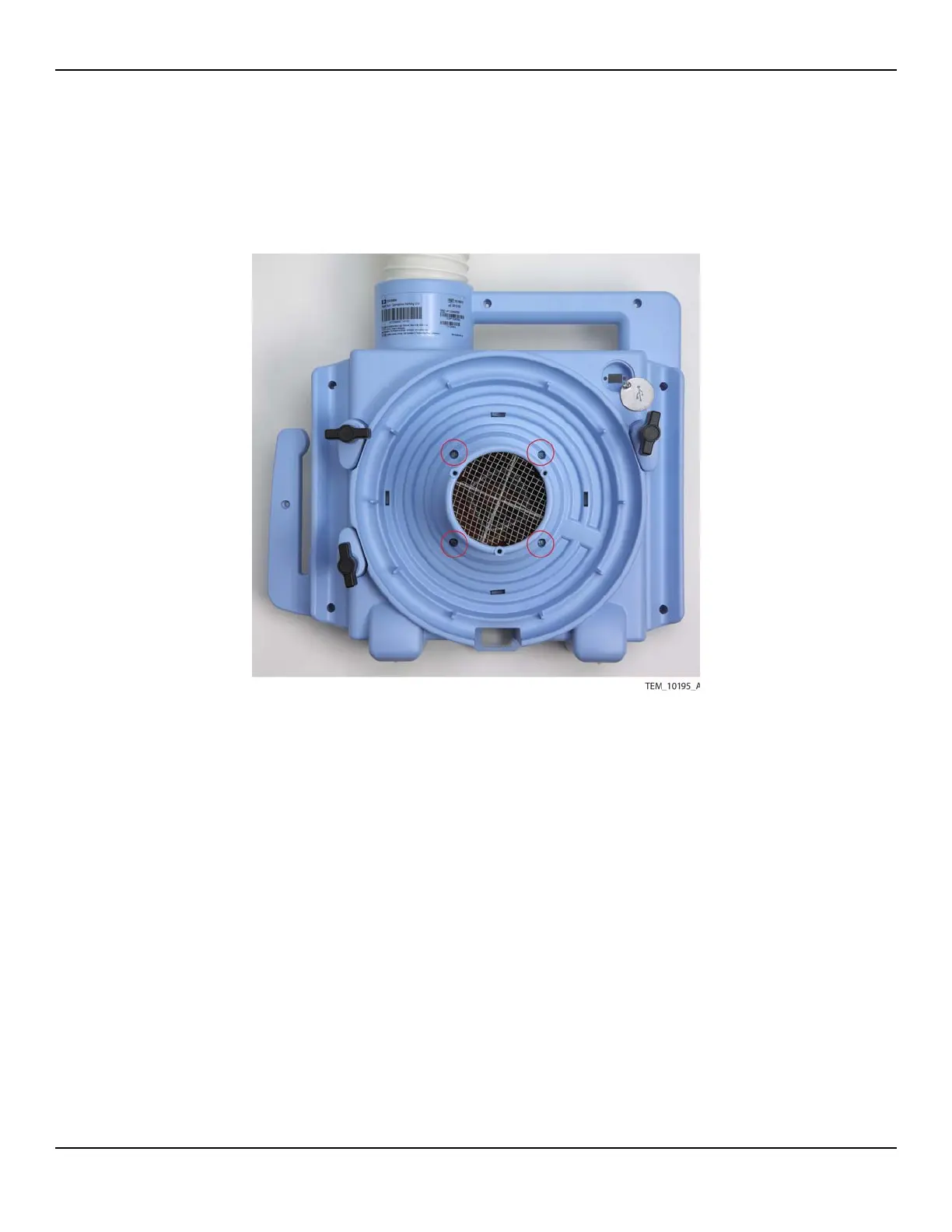

Figure11-34.Fan Assembly Screws

8. Supporting the fan assembly, turn the enclosure over.
