Covidien WarmTouch - Figure 5-2 Filter Enclosure and Power Cord Connection

To Next Page

To Previous Page

Filter Replacement

Service Manual 5-5

Requirements:

• WT HEPA Filter Kit (page A-7)

• Torque driver with #2 Phillips bit

• 70% isopropyl alcohol solution and soft cloth (if replacing gasket in filter enclo-

sure)

To replace the filter:

1. If the power cord is secured around the back of the unit, unwind it completely.

2. Position the warming unit on its front so the bottom of the unit is accessible

(Figure 5-2).

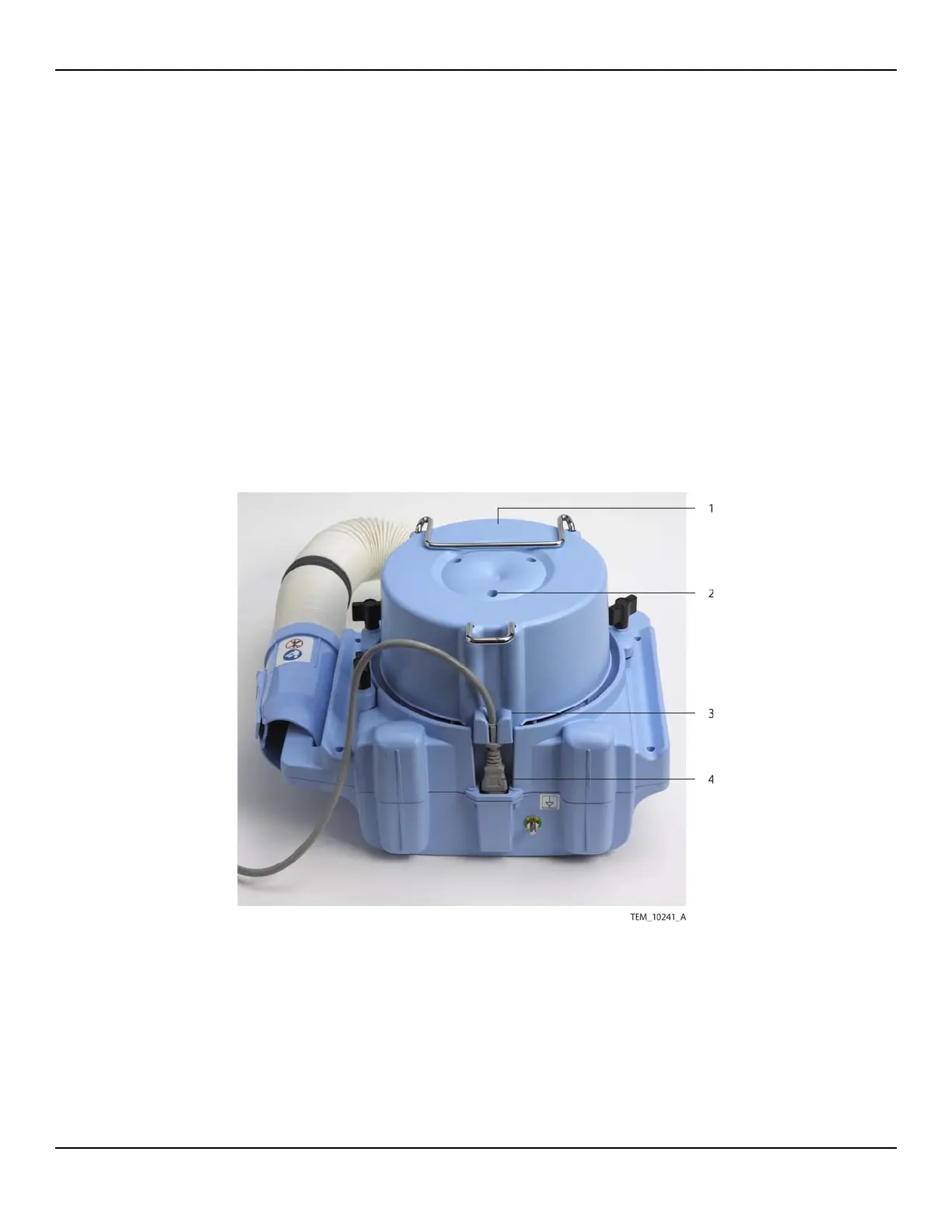

Figure5-2.Filter Enclosure and Power Cord Connection

1 Filter Enclosure 3 Power Cord Routing Bracket

2 Filter Enclosure Screws (x3) 4 Power Cord Connector
