Thermistor Sensor Assembly Replacement

Service Manual 11-3

11.3 Thermistor Sensor Assembly Replacement

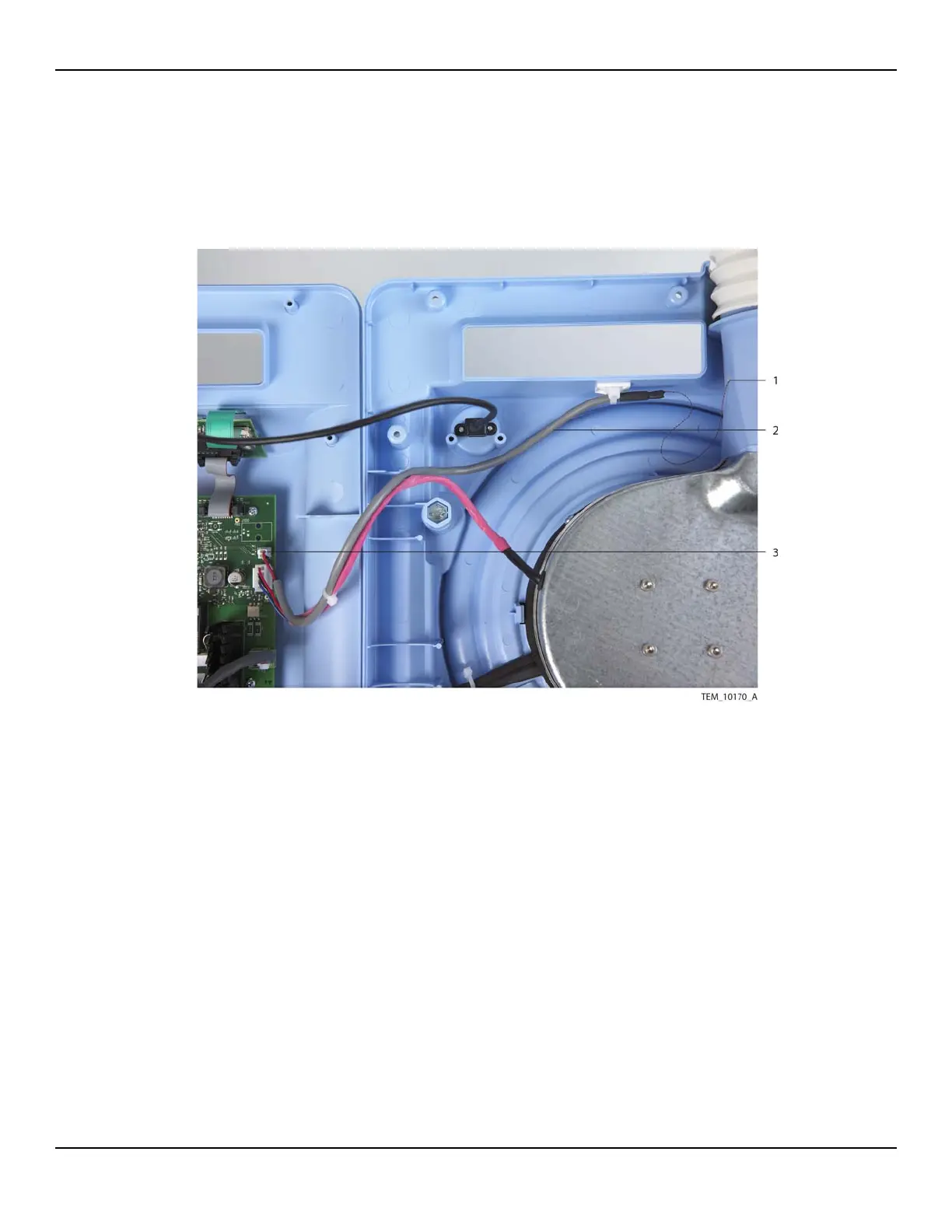

Figure11-1.Thermistor Sensor Assembly

Requirements:

• WT-CWU Thermistor Sens Assy Kit (page A-5)

• Torque driver with #2 Phillips bit

• Wire cutters

• Ruler

• 2 cable ties

1 Thermistor Wire and Rivet 3 Thermistor Cable Connection

(Power PCBA)

2 Thermistor Cable
