Covidien WarmTouch - Figure 11-49 Inserting the Hose Duct Adapter; Figure 11-50 Securing the Hose Duct Adapter

To Next Page

To Previous Page

Internal Component Replacement (Inside Rear Enclosure)

11-52 Service Manual

18. Insert the top edge of the hose duct adapter into the duct and rotate the adapter

downward until it drops into place (Figure 11-49).

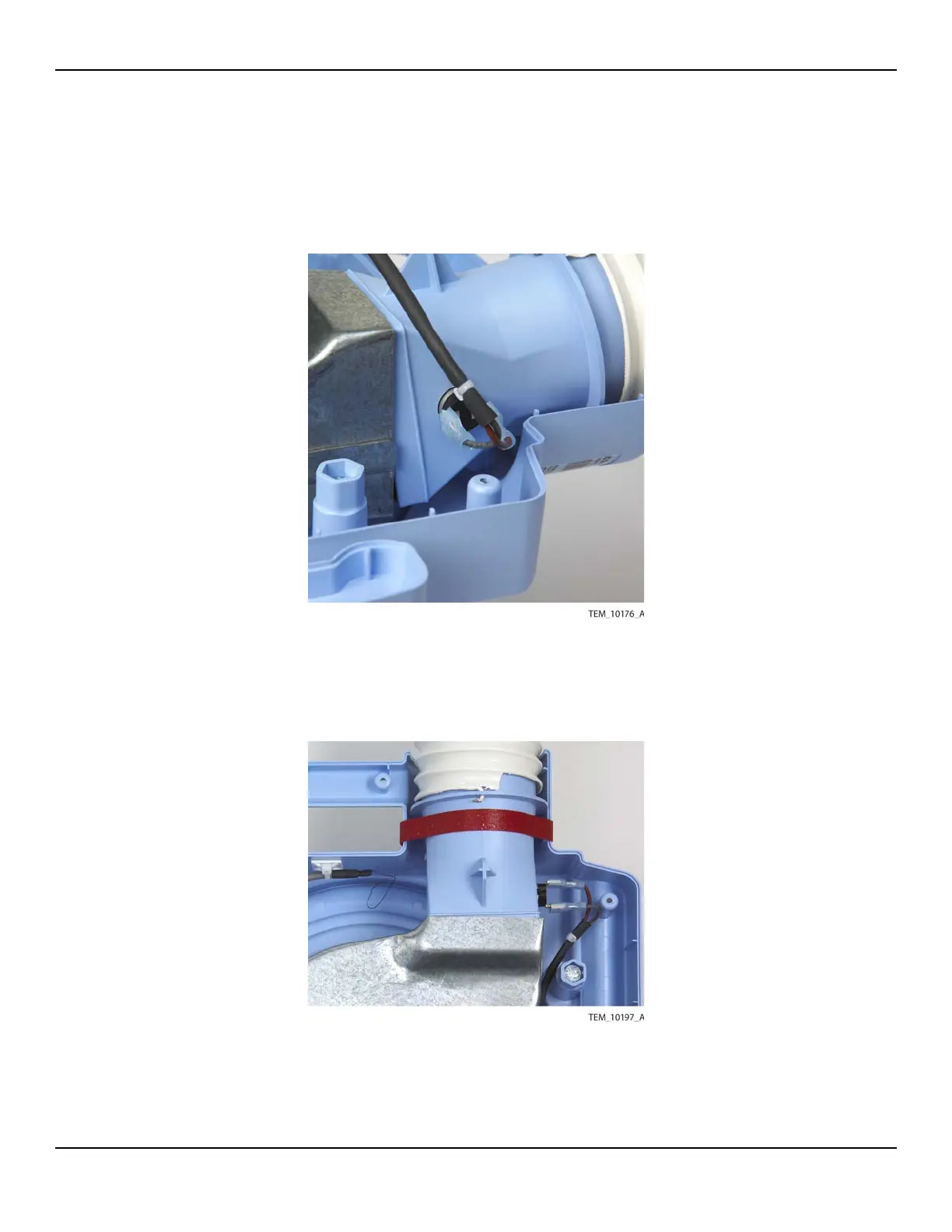

Figure11-49.Inserting the Hose Duct Adapter

19. Using a strap or cable tie, secure the hose duct adapter to the enclosure as shown

in Figure 11-50.

Figure11-50.Securing the Hose Duct Adapter
