Keypad Replacement

Service Manual 10-3

10.3 Keypad Replacement

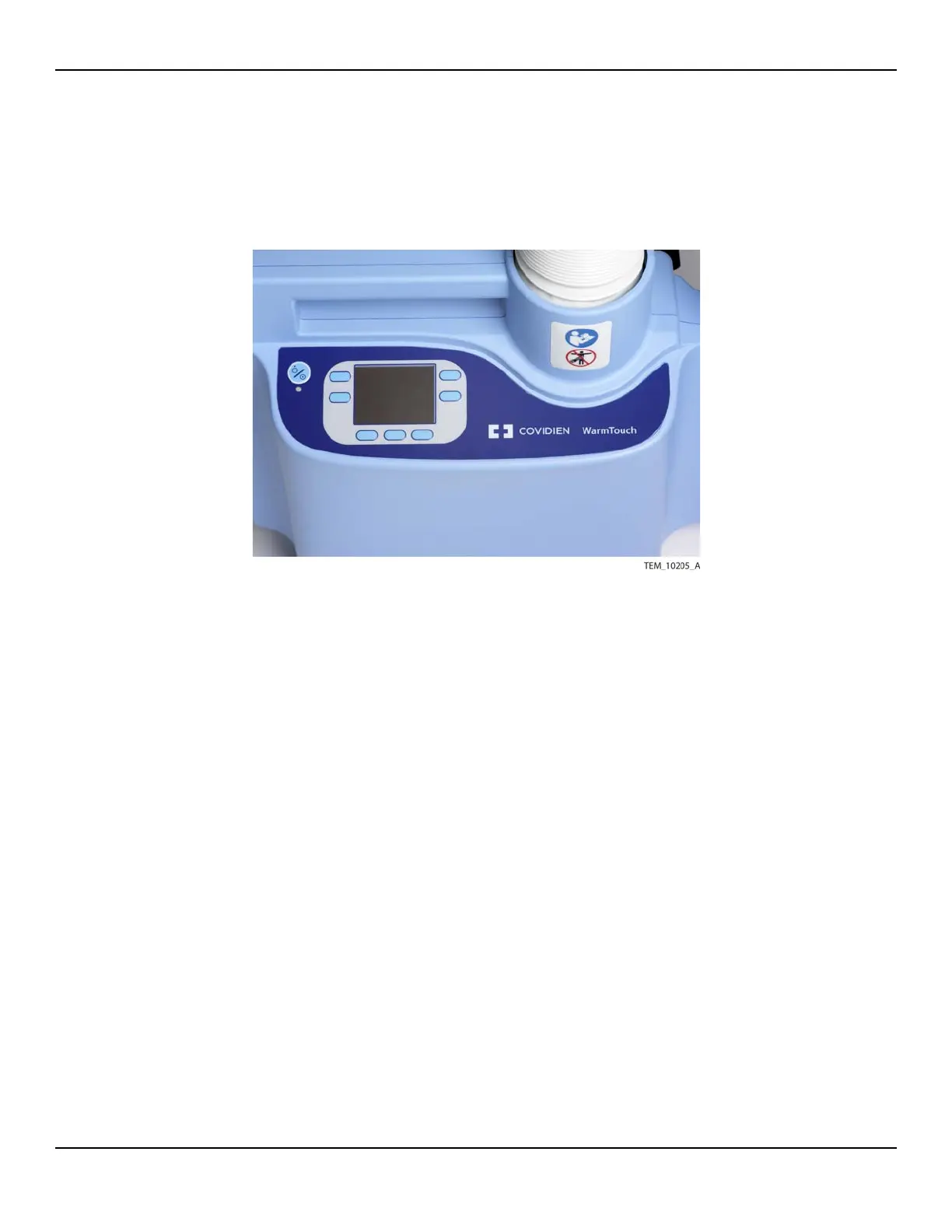

Figure10-1.Keypad

Requirements:

• WT-CWU Keypad Kit (page A-3)

• Torque driver with #2 Phillips bit

• Knife, box cutter, or similar tool with a thin, stiff blade

• 70% isopropyl alcohol solution and soft cloth

• Strap or cable tie to wrap around handle of unit

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
