Covidien WarmTouch - Figure 3-8 Cart Mounting Peg and Warming Unit Mounting Hole

To Next Page

To Previous Page

Installation

3-10 Service Manual

3. Locate the mounting pegs on the cart’s vertical poles, and locate the holes at the

bottom of the warming unit’s mounting channels.

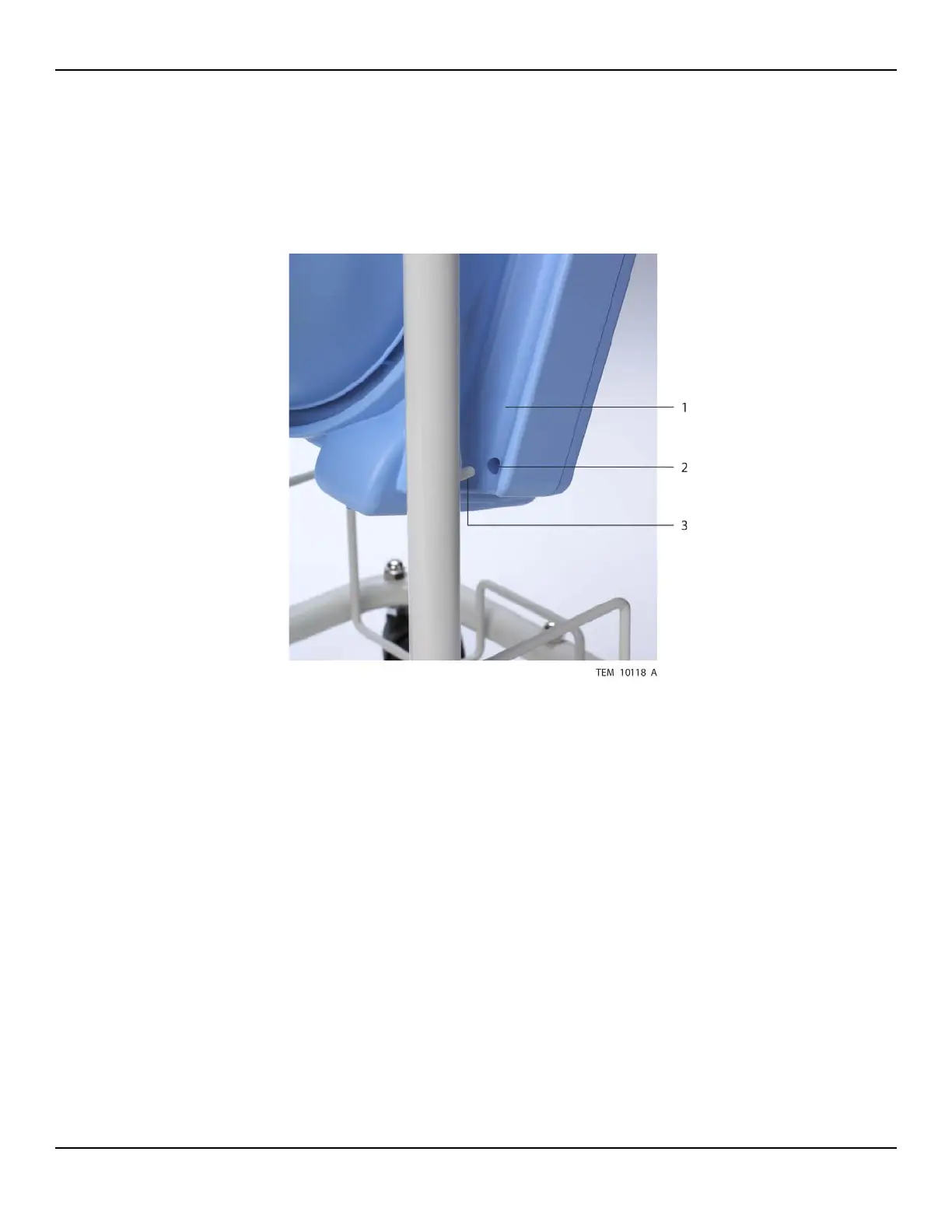

Figure3-8.Cart Mounting Peg and Warming Unit Mounting Hole

4. Holding the warming unit by the handle and bracing the cart, position the

warming unit against the cart so that the mounting holes engage the mounting

pegs. The cart poles must be fully seated in the mounting channels.

5. Rotate each of the three clamp feet across the cart poles, and tighten the clamp

knobs to secure the warming unit. Do not overtighten.

1 Mounting Channel (x2) 3 Mounting Peg (x2)

2 Mounting Hole (x2)
