Equipotential Stud Replacement

Service Manual 10-55

10.17 Equipotential Stud Replacement

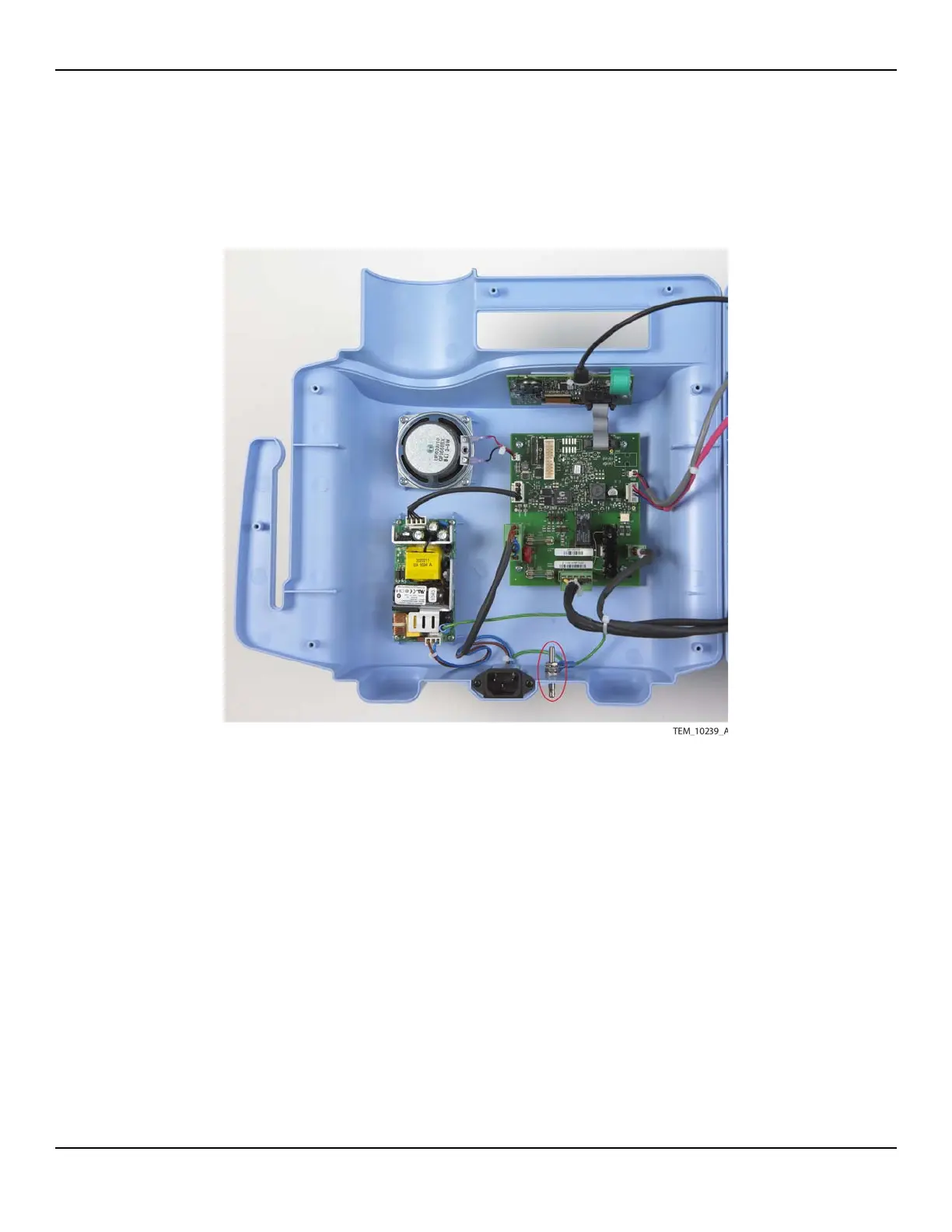

Figure10-40.Equipotential Stud

Requirements:

• WT-CWU Equipotential Stud Kit (page A-4)

• Torque driver with #2 Phillips bit and 10mm hex socket

• 10 mm open-end or box wrench

• Ohmmeter or digital multi-meter with resistance function

 WARNING:

Disconnect the warming unit's power cord from the AC power source before

performing this procedure.
