Enclosure Replacement

12-24 Service Manual

d. Set the clamp knobs, feet, and bolts aside for installation in the new enclo-

sure.

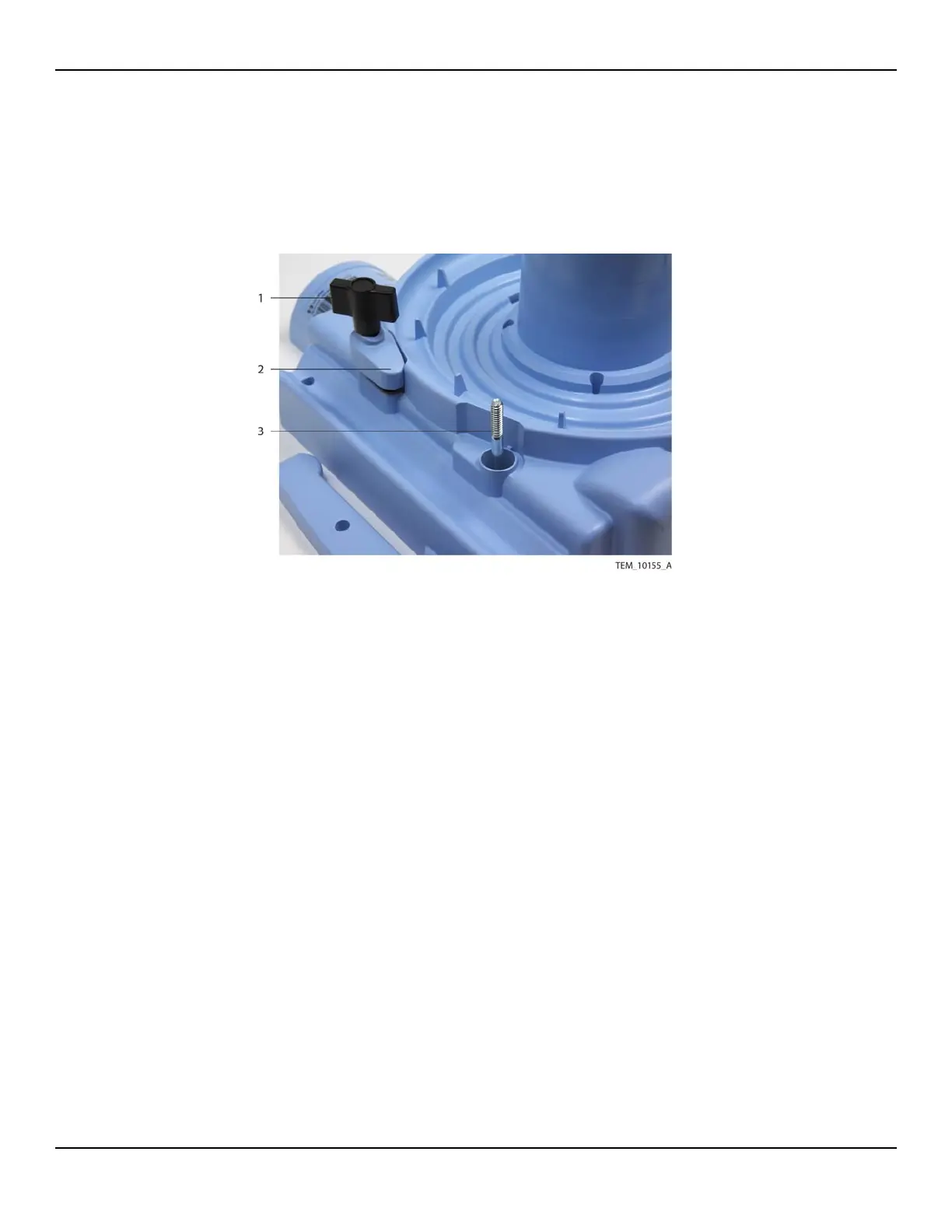

Figure12-19.Pole Clamps and Mounting Bolts

14. Remove and save the serial number label for attachment to the new rear enclosure

as follows (Figure 12-20):

a. Using a handheld blow-dryer, warm the label slightly to avoid damage during

removal.

b. Carefully peel away the label.

c. Place the label on a non-stick surface in a location where it will not get dam-

aged.

1 Clamp Knob (x3) 3 Mounting Bolt (x3)

2 Clamp Foot (x3)
