3.3 Attaching the Power Cord
The warming unit is shipped with a power cord appropriate to the country
of use.
To attach the power cord:
1. Position the warming unit on its front so the bottom of the unit is accessible
(Figure 3-2).

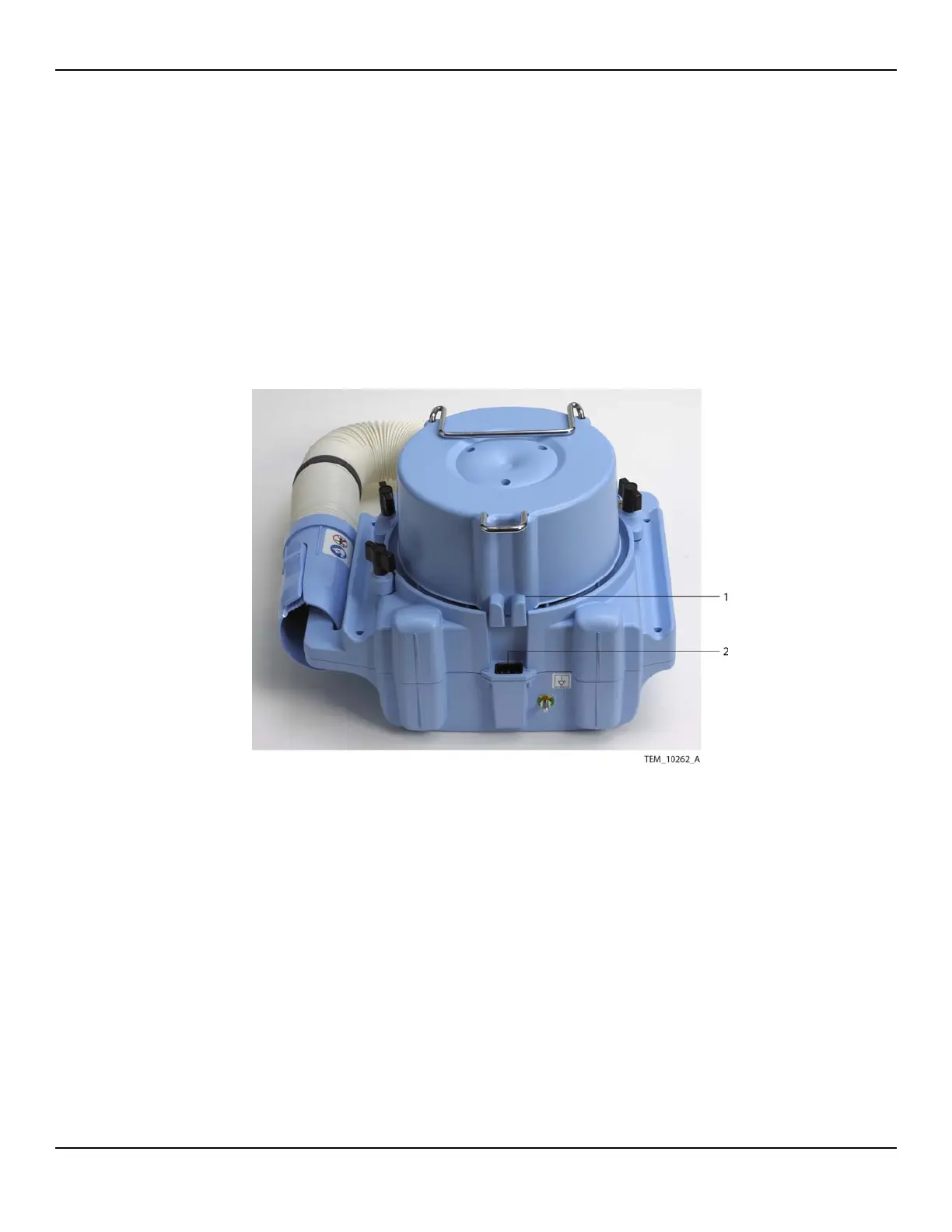

Figure3-1.Positioning the Unit for Power Cord Installation
2. Insert the power cord into the socket on the warming unit, making sure that it is
fully seated.
Note: Do not route the power cord through the metal hook on the filter enclo-
sure.
3. Press the power cord into the routing bracket until it is completely seated
(Figure 3-2). If necessary, use a screwdriver to carefully spread the sides of the
bracket while inserting the cord.
1 Power Cord Routing Bracket 2 Power Cord Socket
