N 9.1
186 1098/1098S - M.Y. 2007 - edition 00
Engine
Refitting the external components

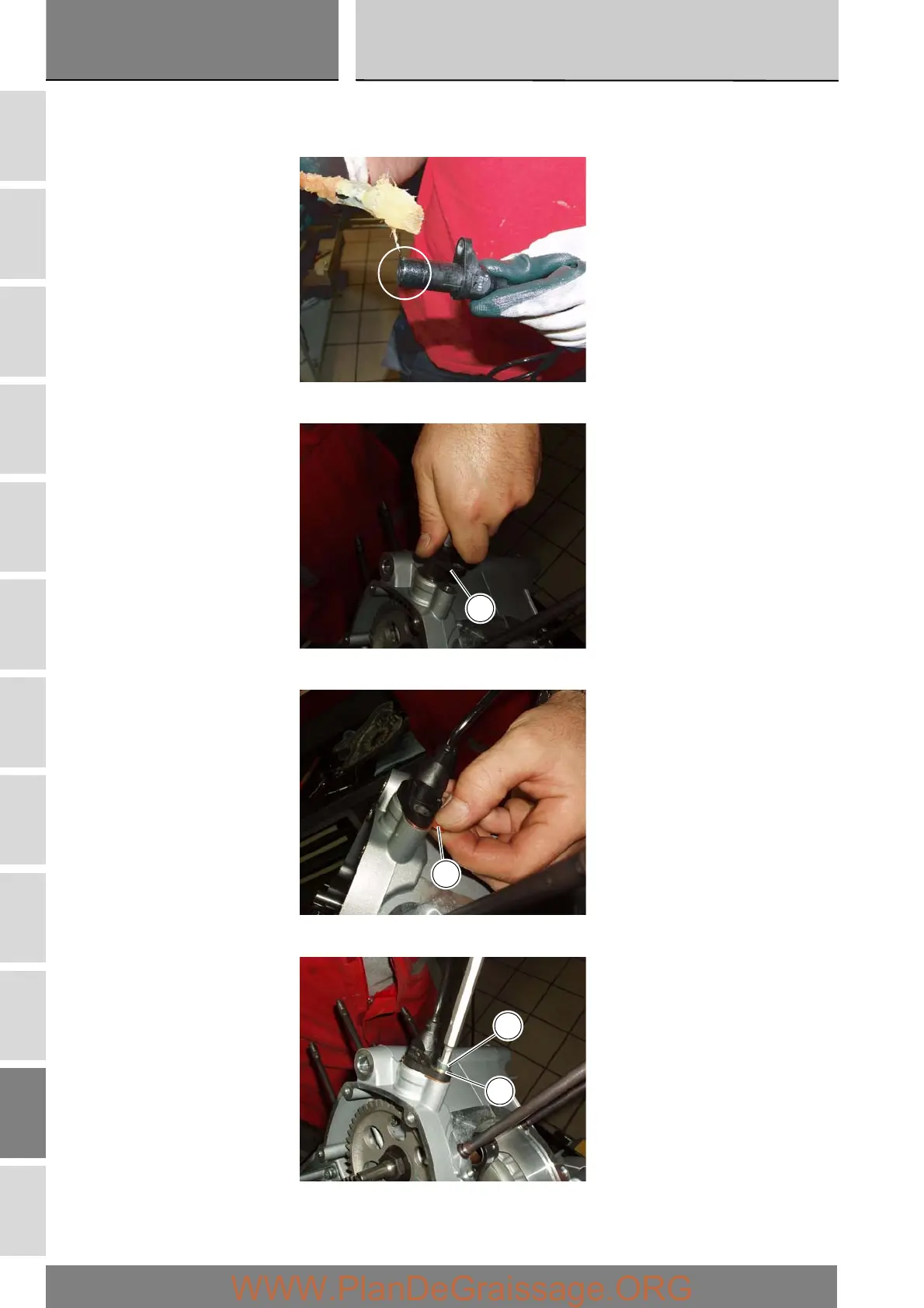

Grease the engine sensor (23) in the part indicated.
Fit the engine sensor (23) in its seat in the crankcase.
Position the 0.6 mm thick shim (24).
Insert the bolt (25) with washer (26) and tighten to the specified torque (Sect. C 3, Engine torque settings).
23
24
25
26
