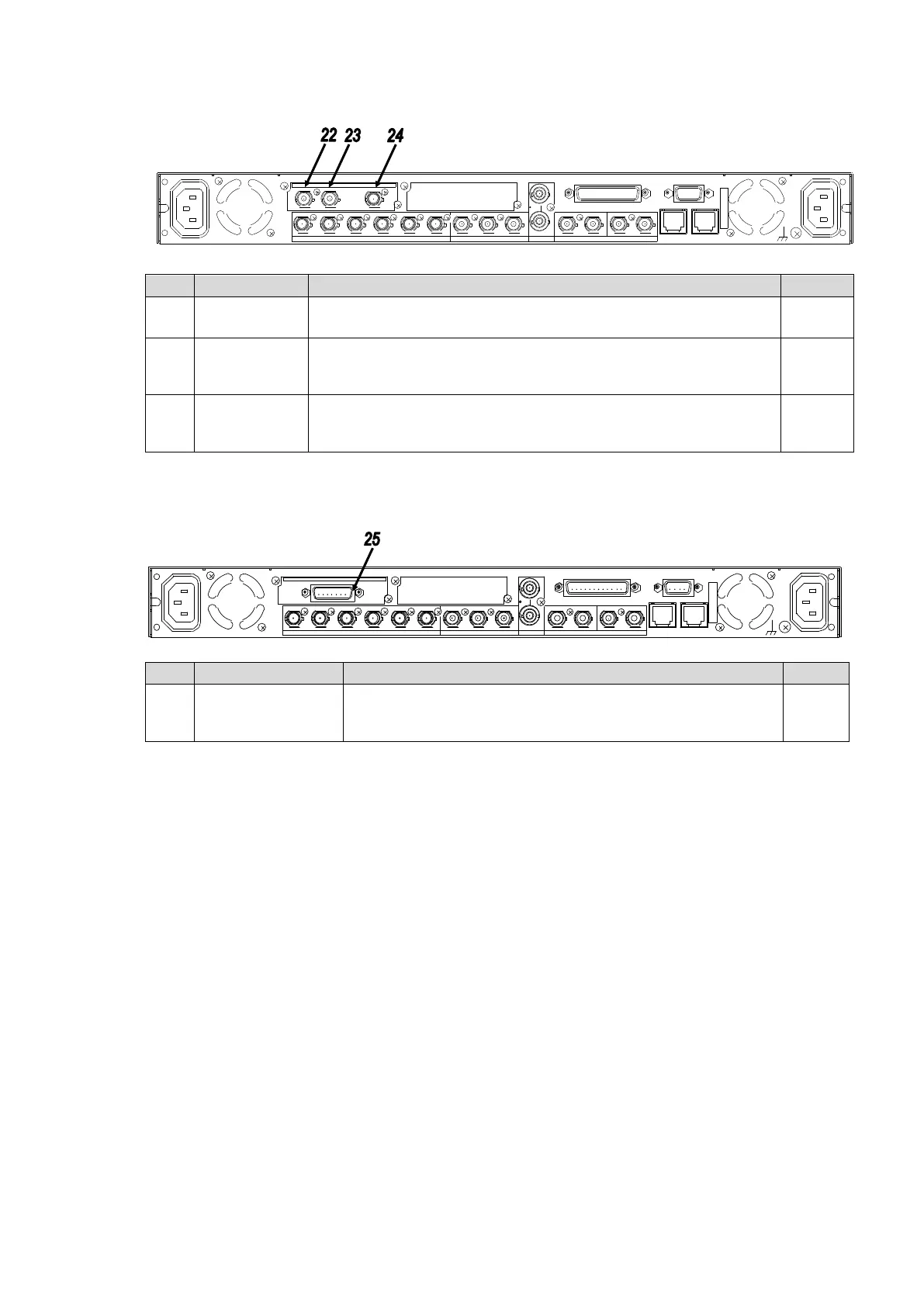

 FA-9520 with the FA-95D-D/DE-E options installed
No
Name
Description
Ref.
22
Dolby E IN
(AUX IN)
Digital audio input connector on the FA-95D-D/DE-E option.
Used to input Dolby E and/or digital signals to the Dolby decoder.
6-10-1-
2
23
Dolby E OUT
(AUX OUT)
Digital audio output connector on the FA-95D-D/DE-E option.
Used to output signals output from the Dolby decoder and/or Dolby
encoder.
6-10-1-
1
24
REF IN
Reference signal input connector on the FA-95D-D/DE-E option.
Used to input reference signal (B.B. or tri-level sync) for the Dolby
decoder. 75 ohm terminated inside.
6-10-1-
3
