1
PANEL DESCRIPTION
1-7
@2 SPEECH•LOCK KEY
❍ SPEECH KEY Operation (p. 3-20)
Push to audibly announce the S-meter level, the
displayed frequency and the operating mode.
• The S-Level announcement can be turned OFF in the
“S-Level SPEECH” item of the “SPEECH” Set mode.
(p. 17-15)
> SPEECH > S-Level SPEECH
• When RIT is ON, the RIT offset is not included in the
frequency announcement.
❍ LOCK KEY Operation (p. 5-12)
Hold down for 1 second to turn the Lock function
ON or OFF.
• The function electronically locks the Dial.
• “
” appears when the function is ON.
• You can select the Dial lock and Panel lock in the
“Lock Function” item of the “Function” Set mode. (p.
17-20)
> Function > Lock Function
NOTE: The [SPEECH/LOCK] key operation to ac-
tivate the voice synthesizer or the Lock functions
can be replaced in the “[SPEECH/LOCK] Switch”
item of the “Function” Set mode. (p. 17-20)
> Function > Lock Function
@3 MEMO PAD KEY
(p. 11-13)
Push to sequentially call up the contents from the ➥
memo pad.
The 5 (or 10) most recently programmed frequen-
cies and operating modes can be recalled, start-
ing from the most recent.
• The memo pad capacity can be increased from 5 to
10 in
the “Memopad Numbers” item
of the “Function”
Set mode (p. 17-20)
> Function > Memopad Numbers
Hold down for 1 second to write the displayed ➥
data into a memo pad.
• The 5 most recent entries remain in the memo pad.
@4 MAIN DIAL
Rotate to change the displayed frequency, select the
Set mode settings, and so on.
@5 MAIN DIAL TENSION LATCH
Select the Dial drag.
• Three positions are selectable. The top setting turns on
clicks as the dial is turned.

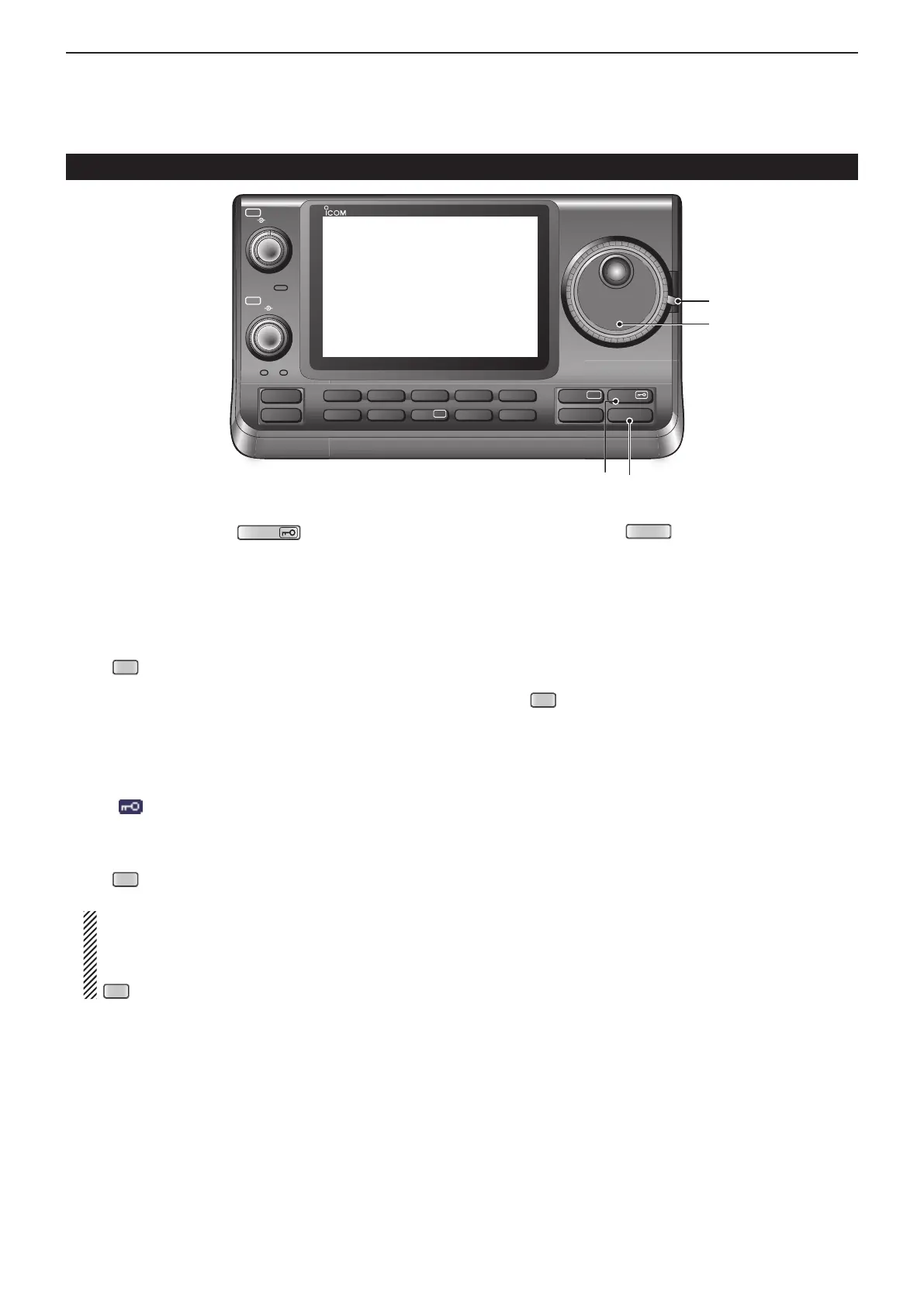

Controller — Front panel (Continued)
PBT RIT
TX / RX
PWR
AF RF/SQL
CLR
M-CH BANK
RIT
TUNER/CALL
MENU
MIC/RF PWR
NB
SPEED/PITCH
SET
QUICK
NOTCH
DR
AUTO
TUNE
RX
�
CS
XFC
SPEECH
MPAD
NR
P.AMP
ATT
i7100
@2 @3
@4
@5
