Icom IC-7100 Advanced Instructions

1
PANEL DESCRIPTION
1-21

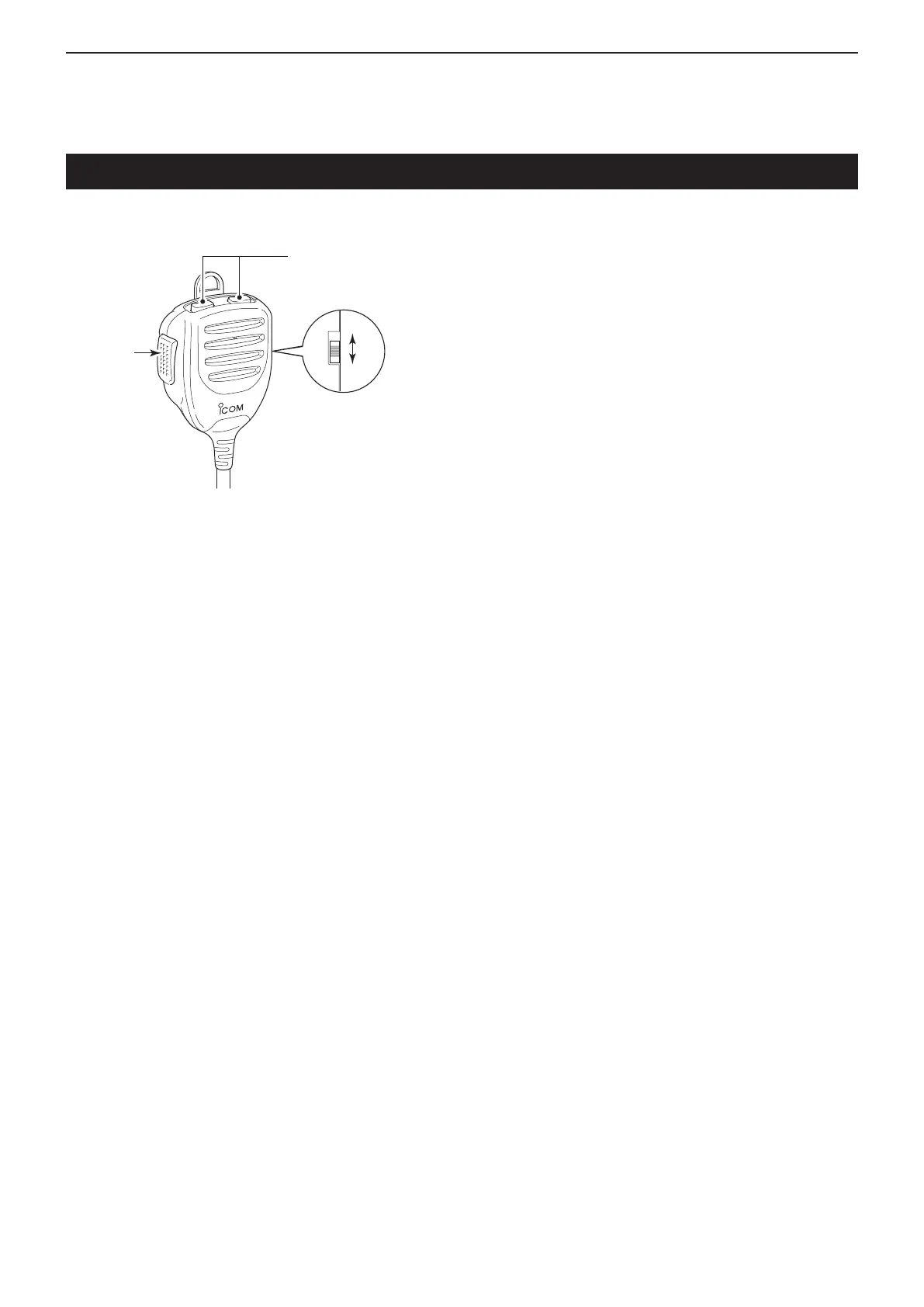

Microphone
q PTT SWITCH
Hold down to transmit, release to receive.
w UP/DOWN KEYS [UP]/[DN]
Push either key to change the operating frequen- ➥
cy, memory channel, Set mode setting, and so on.
(pp. 3-9, 4-11, 11-3)
Hold down either key for 1 second to start scan- ➥
ning.
e UP/DN LOCK SWITCH
Slide to turn the [UP]/[DN] keys lock function ON or
OFF.
D HM-198 (Supplied)
ON
OFF
w
q
e
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
