9
D-STAR OPERATION <ADVANCED>
9-7
When a DV call is received, the calling station and the
repeater’s call signs are stored in the RX HISTORY
screen.
Up to 50 calls can be stored.
Even if the transceiver is turned OFF, the RX record
won’t be deleted.
The stored call signs can be displayed in the following
manner.

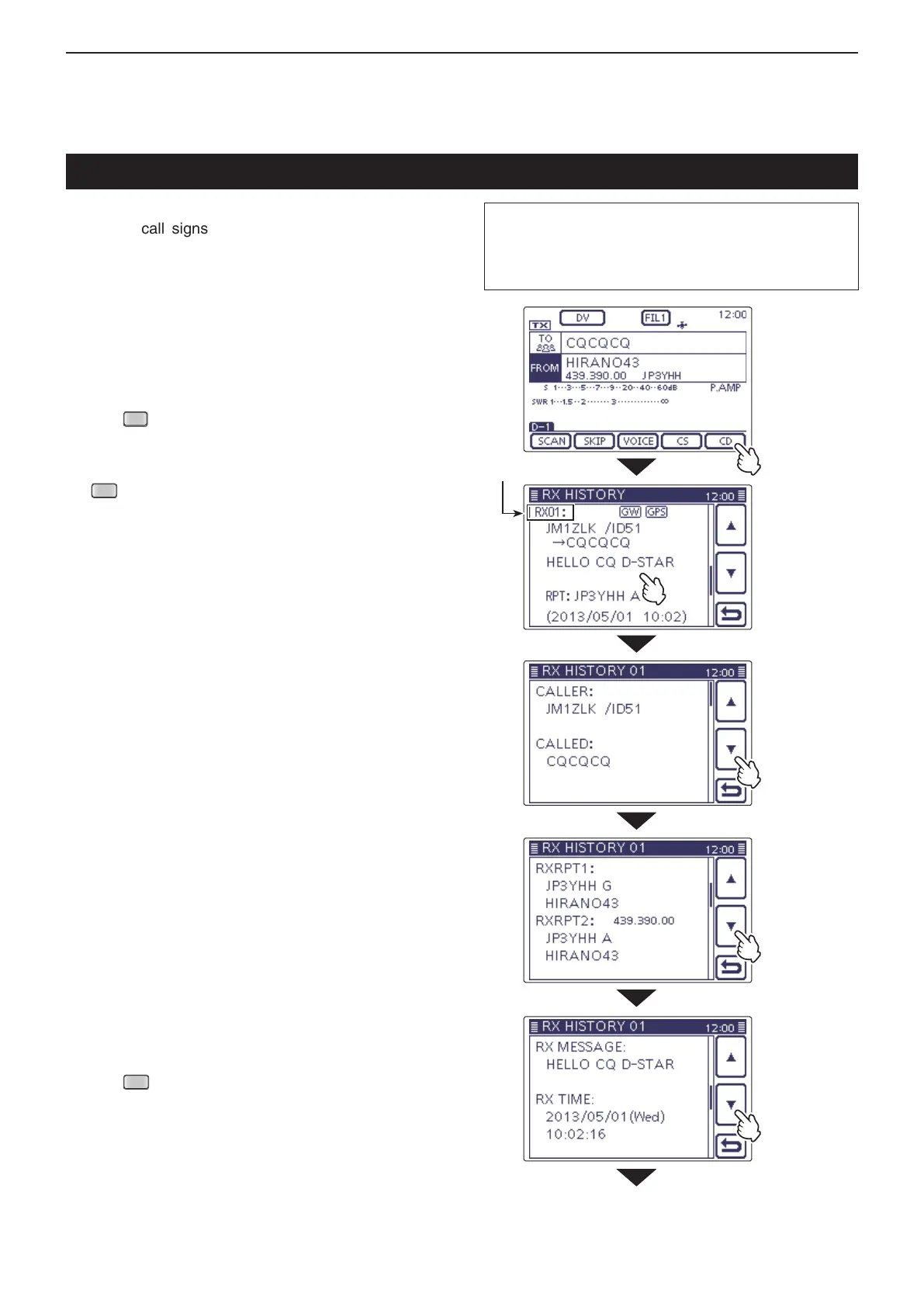

D View in the RX History screen
Push q
DR
(C) to enter the DR mode.
Touch [CD]( w D) to display the “RX HISTORY”
screen.
• “RX HISTORY” can be displayed in the Set mode.
(C) > RX Histrory
Touch [ e ] or [](D) to select an RX history number
between “RX01” and “RX50.
In addition to the RX history number, the call signs of
the caller and called station, RX message, Repeater call
sign of the called station, received date and time are dis-
played on the LCD.
• If only one call is received, skip step e.
• “GW” appears when the gateway call is received.
“GPS” appears when the received call includes GPS po-
sition.
“UP” appears when the repeater uplink signal is re-
ceived.
Touch the screen to show the contents of the RX r
history.
Touch [ t ] or [](D) to switch the displayed contents
of the RX history.
• CALLER: Shows the call sign of the caller station and
any note programmed after the call sign.
• CALLED: Shows the call sign of the called station.
• RXRPT1*: Shows the call sign of the repeater that
was accessed by the caller station. If it was
a call through a gateway and the internet,
this item displays the gateway repeater call
sign of your local area repeater.
• Rx RPT2*: Shows the call sign of the repeater you re-
ceived the call from.
• MESSAGE: Shows any message included in the re-
ceived call, if programmed.
• RX TIME: Shows the date and time the call was re-
ceived.
* “FREQUENCY” appears instead of these items when the
call was not through a repeater (Simplex call), to show
the frequency that was used.
Push y
SET
(C) to exit the screen.
Received call sign viewing
When the received call includes the GPS
position data, it is displayed after RX TIME.
RX history number
Touch the
screen.
The L, R, C or D in the instructions indicate the part of
the controller.
L: Left side, R: Right side, C: Center bottom
D: Display (Touch screen)
Touch
[CD]
Touch []
Touch []
Touch []
Previous view
