FUNCTIONS FOR TRANSMIT
6-11
Quick Split function
When you touch [SPLIT](D) for 1 second, the Split fre-
quency operation is turned ON. The undisplayed VFO
is automatically changed according to the plus/minus
frequency shift programmed in the “SPLIT Offset” item
of the “Function” Set mode (p. 17-19). Or the VFOs
are equalized when 0.000 MHz (default setting) is pro-
grammed as the Split Offset (p. 17-19).
(C) > Function > SPLIT/DUP > SPLIT Offset
The Quick Split function is ON by default. For your con-
venience, it can be turned OFF in the
“Quick SPLIT”
item of the
“Function” Set mode (p. 17-19). In this case,
touch [SPLIT](D) for 1 second does not equalize the
VFO A and VFO B frequencies.
(C) > Function > SPLIT/DUP > Quick SPLIT

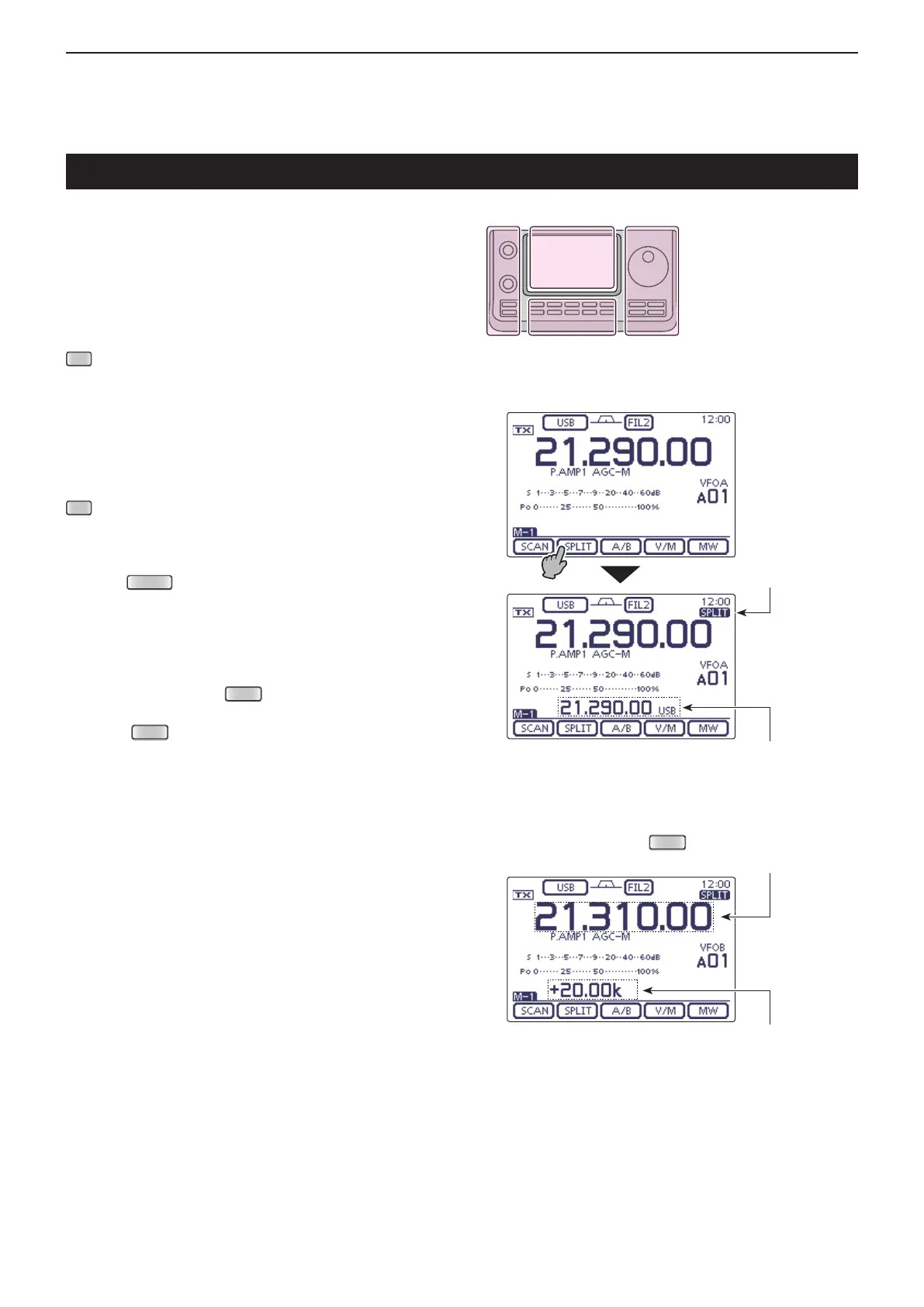

Suppose you are operating at 21.290 MHz (USB) in q
VFO A.
Push w
(C) one or more times to select the
“M-1” screen (M-1 menu).
Touch [SPLIT]( e D) for 1 second
.
• Split frequency operation is turned ON.
• The transmit (VFO B) frequency is equalized to the re-
ceive (VFO A) frequency.
While holding down r
(R), rotate the Dial to set
the frequency offset between transmit and receive.
• When
(R) is released, the receive frequency is dis-
played.
The example shows the split offset
is set to +20 kHz (+0.020 MHz).
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D:
Display (Touch screen)
• While holding down
Split icon
Shows the transmit frequency (VFO B)
Shows the transmit frequency (VFO B)
Shows the frequency shift and direction
Touch [SPLIT]
for 1 second
