Icom IC-7100

16
ANTENNA TUNER OPERATION
16-2

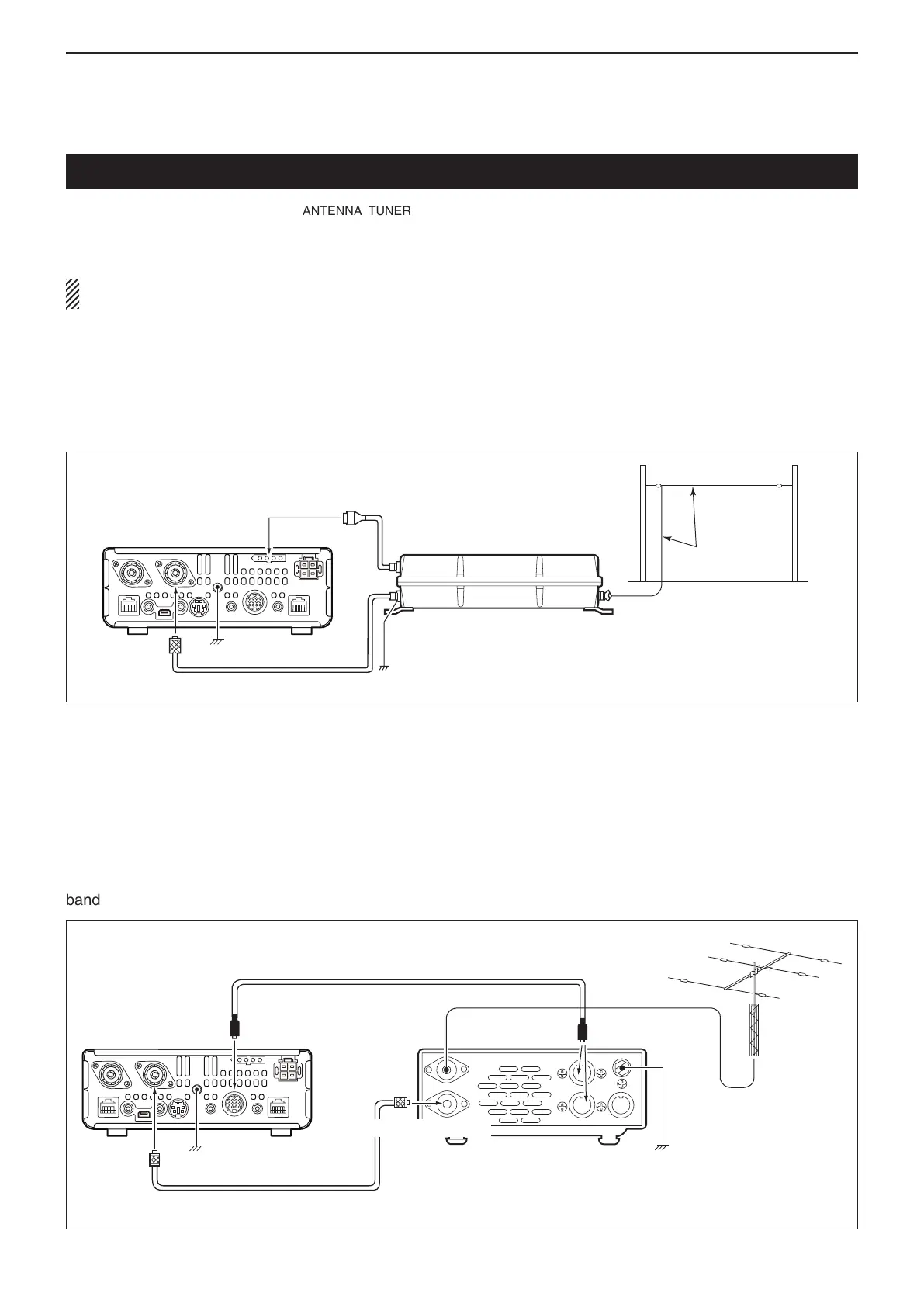

Connecting the antenna tuner
To Long wire
To optional AH-2b
Ground
AH-4
To [ANT1]
IC-7100
To [TUNER]
Ground*
ANT
Antenna
element
To [TRANSCEIVER]
To [ANT1]
To [ACC]
AT-180
To [ANT] To [ACC]*
Ground
HF/6 m antenna
Coaxial cable supplied
with the AT-180
ACC cable supplied with the AT-180
Coaxial cable
Ground
IC-7100
*Either of the two
external connectors
* Use as thick and short a wire as possible
between the AH-4 and ground.
D Connecting an AH-4
The optional AH-4 matches the IC-7100 to a long
wire antenna more than 7 m/23 ft long (3.5 MHz and
above).
• See page 16-4 for operation.
• See the AH-4 instruction manual installation and an-
tenna connection details.
The AH-4 and AT-180
a u t o m a t i c a n t e n n a t u n e r au-
tomatically matches the IC-7100 to the connected an-
tenna.
NOTE: Before connecting, be sure to turn OFF the
transceiver’s power.
D Connecting an AT-180
The optional AT-180 matches the IC-7100 to both HF
and 50 MHz antenna, and automatically tunes the an-
tenna (impedance range: 16.7 to 150 ø) during trans-
mission when the antenna SWR is less than 1:3 (HF
band).
• See page 16-5 for operation.
