4
RECEIVE AND TRANSMIT
4-28
Repeater operation (Continued)
D Transmit frequency monitor check
You may be able to directly receive the other party’s
transmitted signal without having to go through a re-
peater. This function helps you to check whether direct
communication can be made, or not.

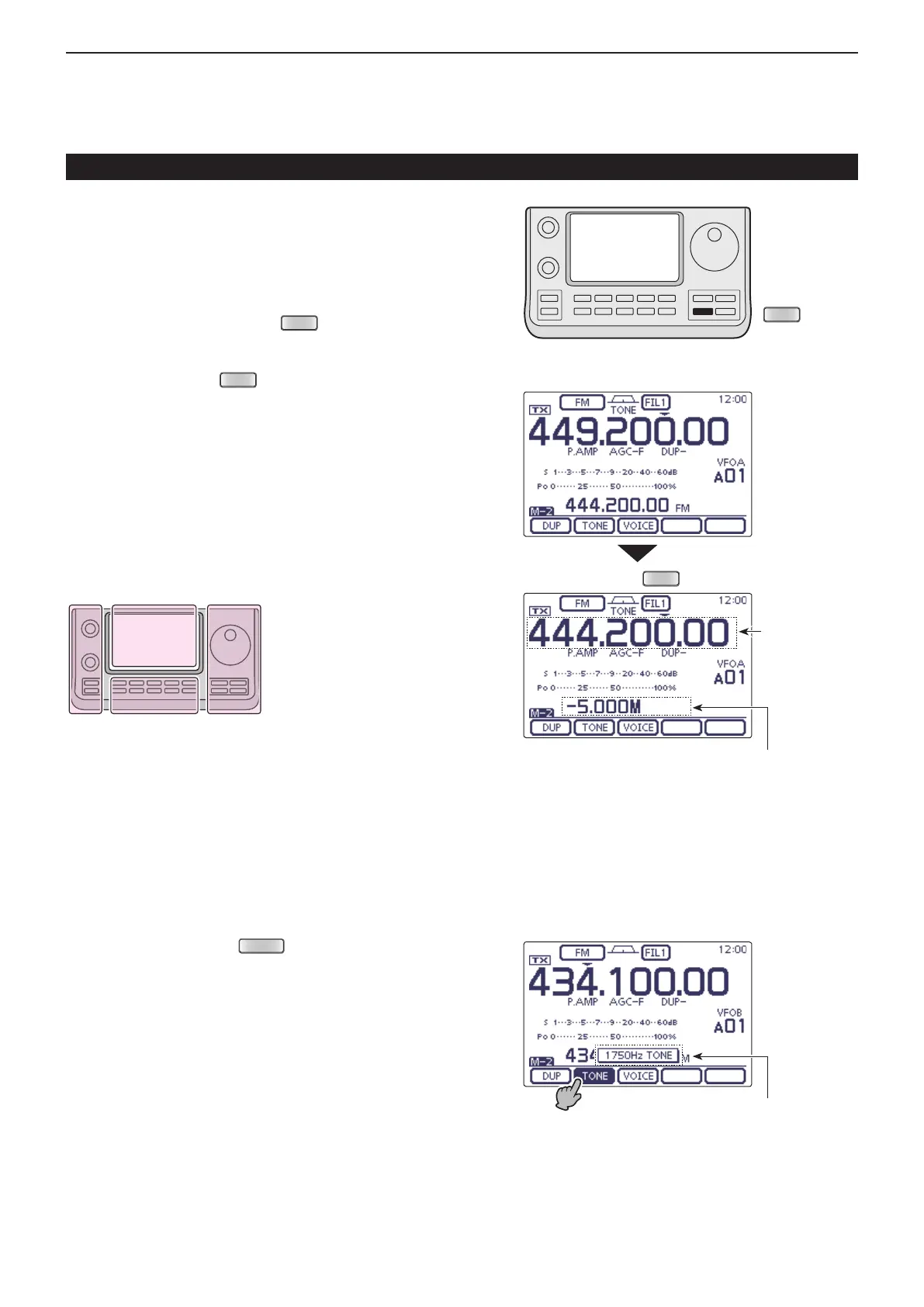

While receiving, hold down
XFC
(R) to see if you
can directly receive the other party’s transmitted sig-
nal.
While holding down
XFC
(R), the duplex direction and
frequency offset are displayed above the function menu.
D 1750 Hz tone burst
A 1750 Hz tone is required to access most European
repeaters.
In the FM mode, q
p
ush
MENU
(C) one or more times
to select the “M-2” screen (M-2 menu).
Push [PTT] on the microphone to transmit, and then w
touch [TONE](D) during repeater access.
• “1750Hz TONE” appers.
Communicate in the normal way. e
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D:
Display (Touch screen)
Hold down
XFC
XFC
Duplex direction and frequency offset
Popup window appears
Displays the
transmit fre-
quency
While hold down
While hold down [PTT]
Previous view

Table of Contents
