RECEIVE AND TRANSMIT
4-29

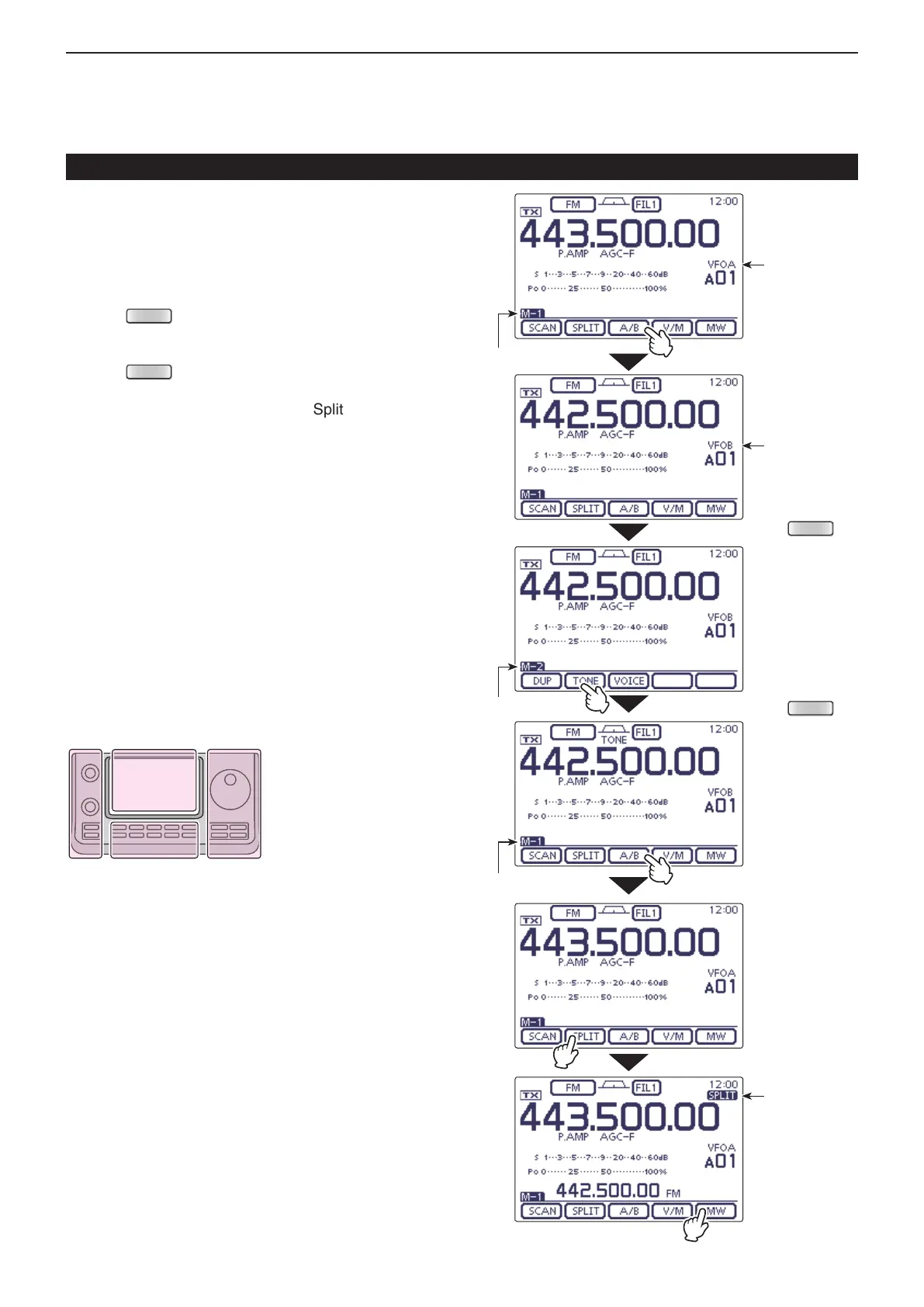

D Storing a non standard repeater
While the “M-1” menu is selected, touch [A/B]( q D) to
select VFO A.
Rotate the Dial to set the repeater output frequency. w
Touch [A/B]( e D) to select VFO B.
Rotate the Dial to set the repeater input frequency. r
t P ush
MENU
(C) to display the “M-2” screen (M-2
menu), then touch [TONE](D) to turn ON the previ-
ously set tone encoder.
y P ush
MENU
(C) to display the “M-1” screen (M-1
menu), then touch [A/B](D) to select VFO A.
Touch [SPLIT]( u D) to turn ON the Split function.
Rotate [M-CH]( i L) to select the desired memory
channel.
• “BLANK” appears when a blank channel is selected.
• Rotate [BANK](L) to select the desired bank, if needed.
Touch [MW]( o D) for 1 second to store the set con-
tents into the selected memory channel.
Repeater operation (Continued)
Touch [A/B]
Touch [SPLIT]
Touch [MW] for
1 second
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D:
Display (Touch screen)
Touch [A/B]
Touch [TONE]
Push
MENU
(C)
Push
MENU
(C)
VFO A
Split icon
VFO B
“M-1” menu
“M-1” menu
“M-2” menu
Previous view
