Icom IC-7100 Advanced Instructions

4
RECEIVE AND TRANSMIT
4-10

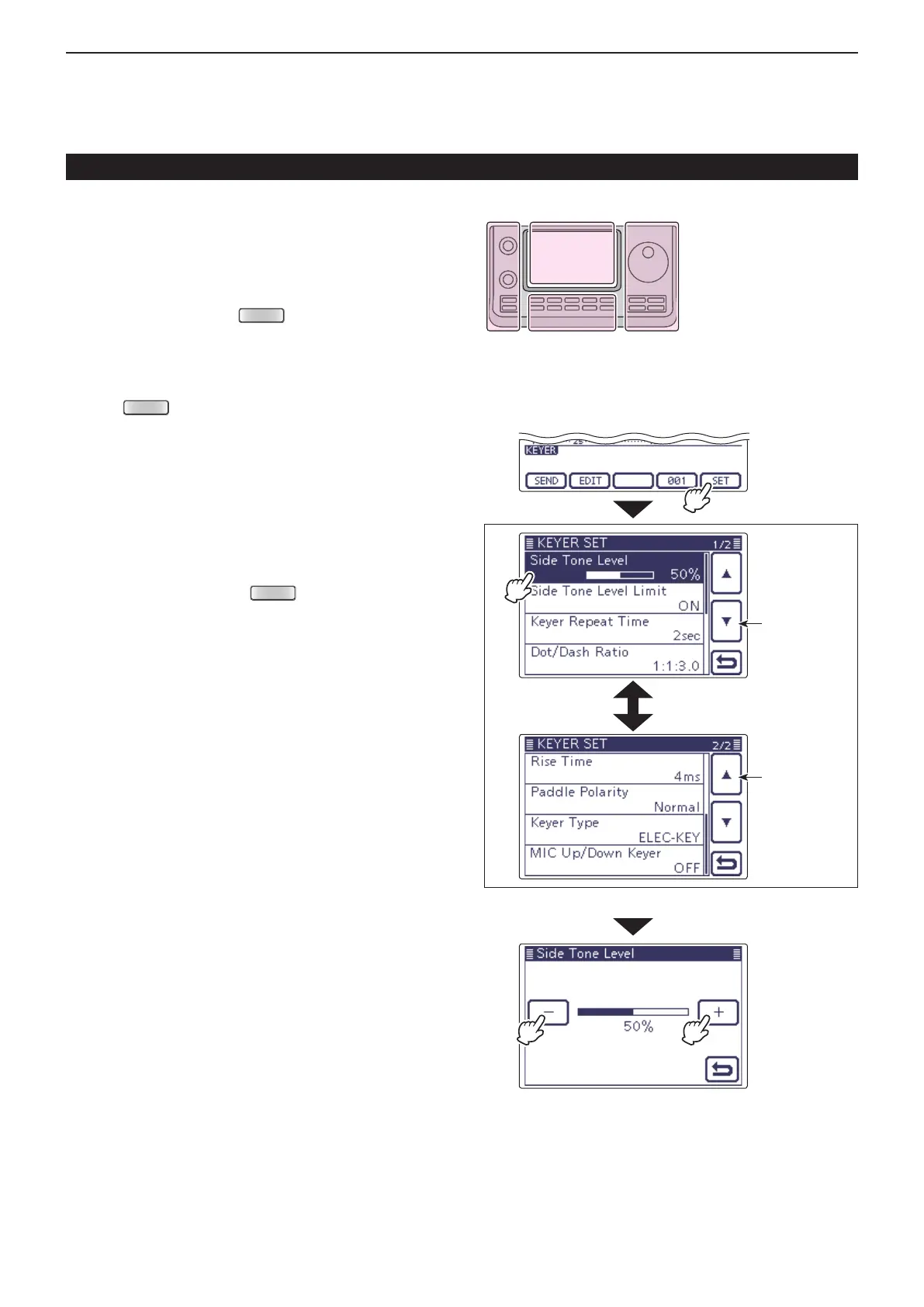

D Keyer Set mode
This Set mode is used to set the CW sidetone, memory
keyer repeat time, dash weight, paddle specifications,
keyer type, and so on.
• Setting contents
q In the CW mode, p ush
MENU
(C) one or more times
to select the “M-2” screen (M-2 menu).
w Push [KEYER](D) to display the “KEYER SEND”
screen.
• If the “KEYER” (Root) screen is displayed, skip step e.
Push e
MENU
(C) to display the “KEYER” screen.
Touch [SET]( r D) to enter the “KEYER SET” screen.
Touch the desired item to select. t
• See the next page for details of the set items and op-
tions.
Touch the y desired option or rotate the Dial to change
the value.
• If desired, touch the item for 1 second to open the De-
fault set window, then select the “Default” to reset to the
default setting.
Touch [ u ](D) or push
MENU
(C) to return to the
“KEYER” (Root) screen.
Electronic keyer functions (Continued)
“KEYER” screen (Memory Keyer)
• Keyer Set mode
Touch [SET]
L
eft
R
ight
C
enter
D
isplay
Returns to the
previous page
Moves to the
next page
(Example: Touch the “Side Tone Level.”)
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D:
Display (Touch screen)
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
