2

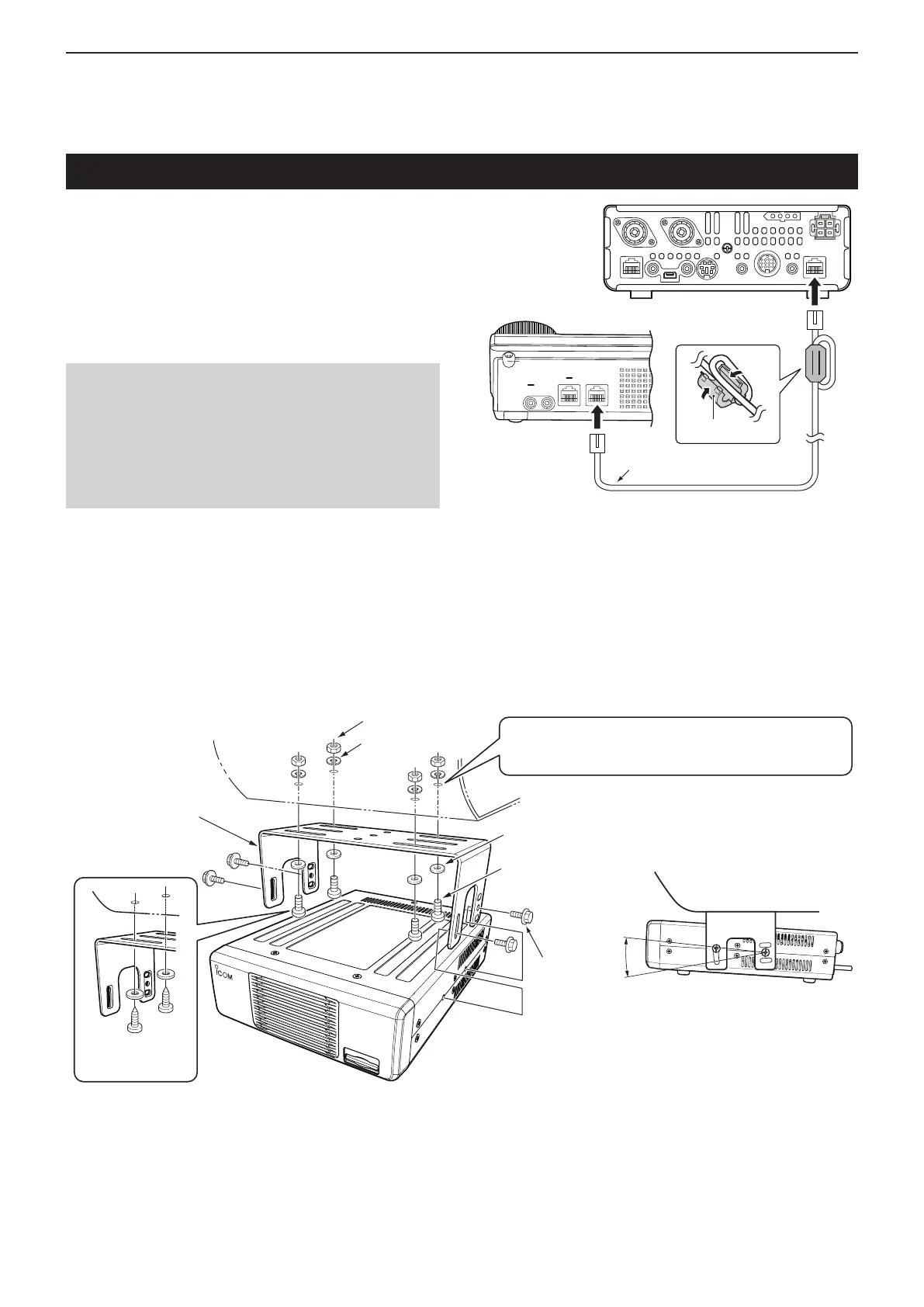

INSTALLATION AND CONNECTIONS
2-4
Controller
Rear panel
To the [CONTROLLER]
connector
Controller cable
Ferrite EMI filter
To the
[MAIN UNIT]
connector
Connect controller to transceiver
The Main unit becomes hot when transmitted for long
period of time.
DO NOT place anything on the transceiver. It may ob-
struct radiation and cause mechanical trouble.
Using Ferrite EMI lter*
Depending on the installed condition of the transceiv-
er, malfunction may occur by the wraparound of the
electric wave. This problem can be resolved by using
the Ferrite EMI filter.
* The filter connection is required for the European ver-
sions.
Drill 5 mm holes for the bracket location.
Drill 3 mm holes for the tapping screws.
Nut
Spring washer
Flat washer
Screw
Flange bolt
Using
tapping screws
MB-62
Main unit installation
The MB-62 can be used for AT-180 as well.
Adjust for the best viewing angle.
IC-7100
The Main unit installation D
