Icom IC-7100 Advanced Instructions

17
SET MODE
17-2
The Set mode is used to program infrequently changed
values or function settings.
NOTE: The Set mode is constructed in a tree struc-
ture. You may go to the next tree level, or go back a
level, depending on the selected item.
SET
D The Set mode settings
Push q
SET
(C) to enter the Set mode.
If the specified item is not displayed, touch [ w ∫] or [√]
(D) one or more times to select the page.
• If [∫](D) or [√](D) is continuously held down, the pages
are quickly scrolled.
• Rotating the Dial also selects the pages.
Touch a desired item to go to the next level. e
Repeat steps r w and e to show the desired item’s
setting screen.
• To go back the previous tree level, touch [](D), or
MENU
(C).
Touch a desired option shown on the display, or [+]/ t
[–](D) to adjust a level.
• When you touch an option, it is automatically saved and
the screen returns to the previous display.
• Rotating the Dial also adjusts the level.
• Push
QUICK
(C), and then touch “Default” to reset to the
default setting, if desired.
• To set other item, touch [](D), or
MENU
(C) to go back
a tree level.
Push y
SET
(C) to exit the Set mode.
Set mode description
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
L
eft
R
ight
C
enter
D
isplay

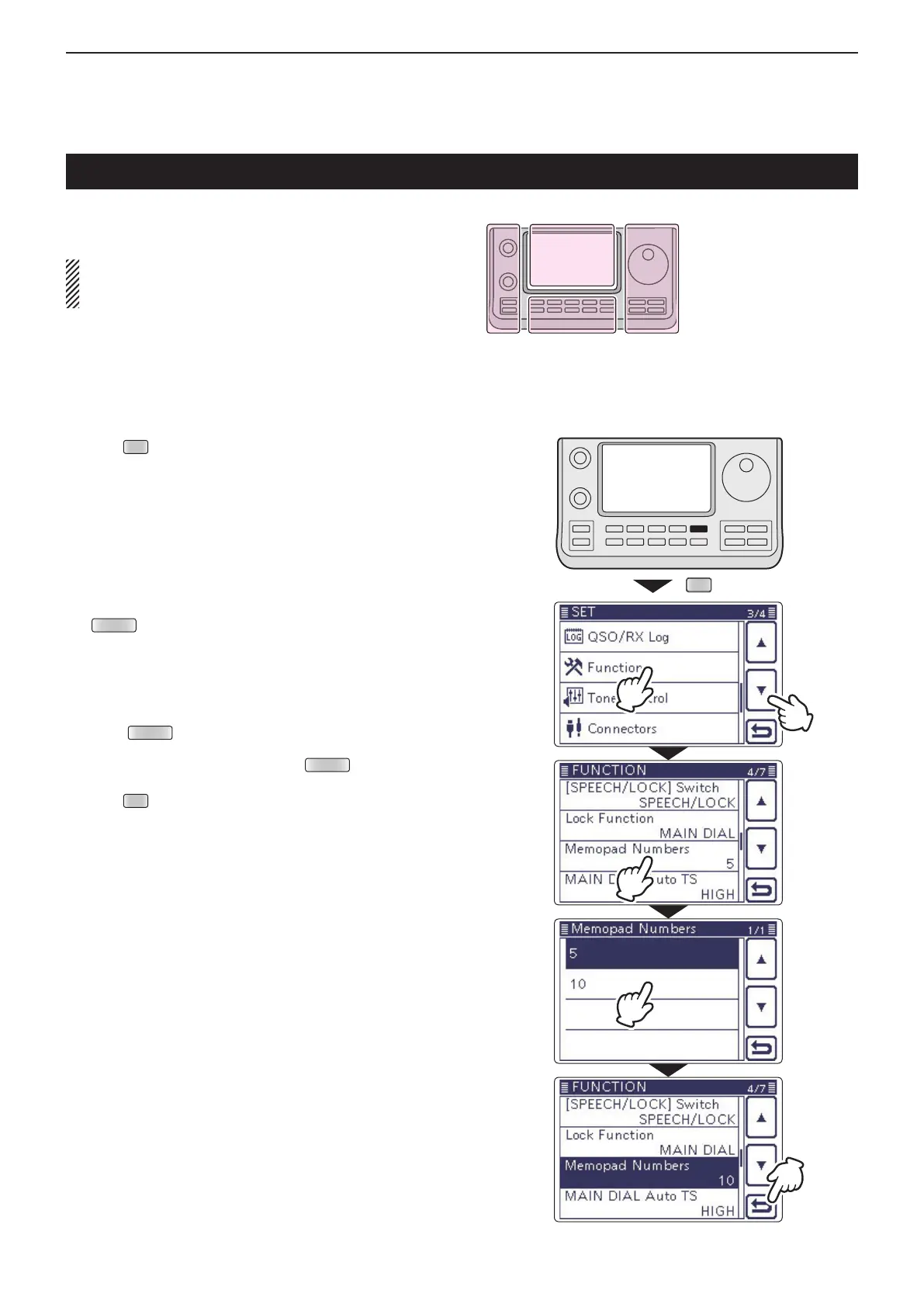

Example: Change the “Memopad Numbers” item option
to “10.”
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
