Icom IC-7100 Advanced Instructions

5
FUNCTIONS FOR RECEIVE
5-7
(Mode: SSB/SSB-D/CW )

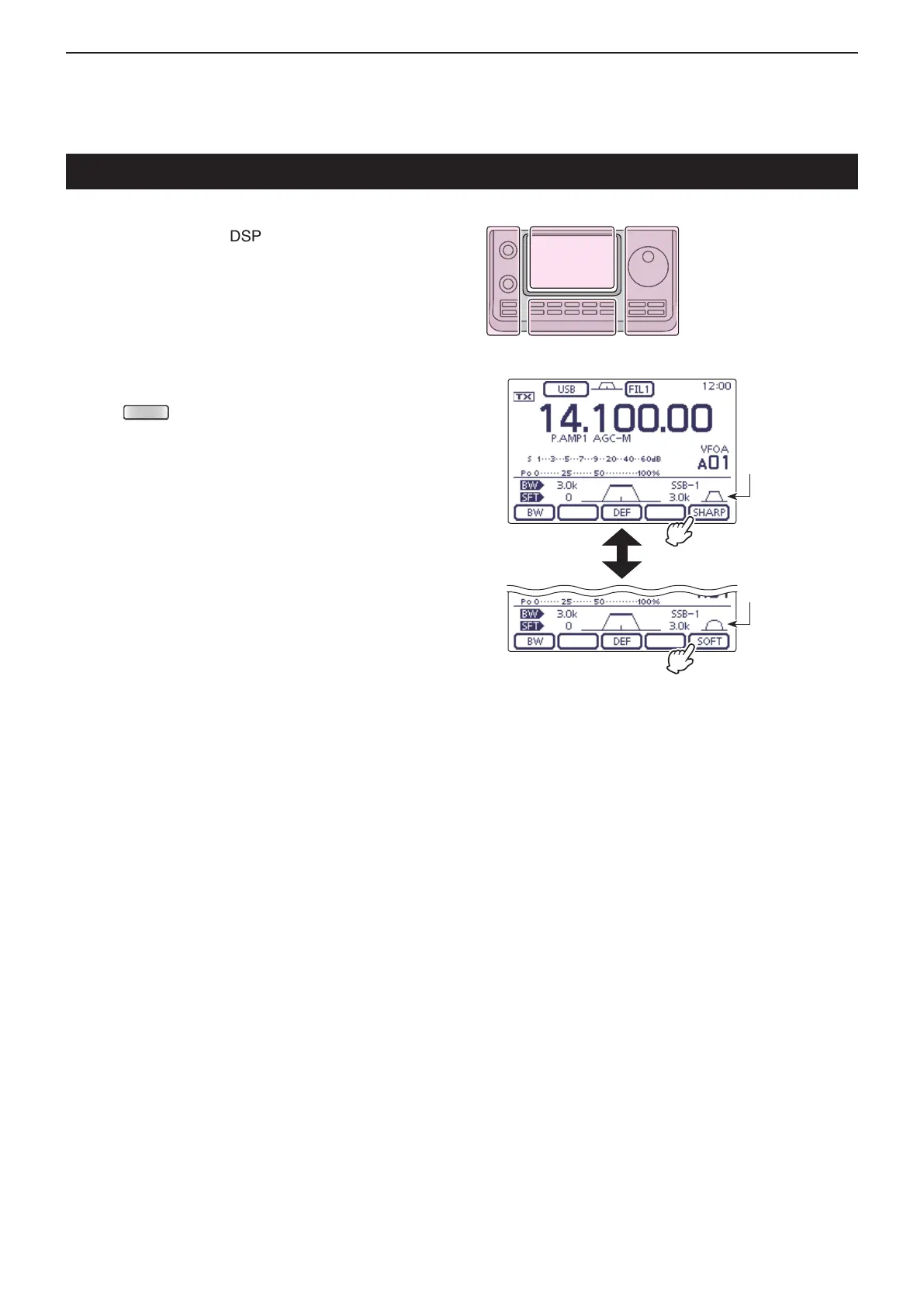

A soft or sharp type of DSP filter shape for both SSB
and CW can be independently selected.
On the Mode selection screen, select the SSB or q
CW mode. (p. 3-17)
Touch the Filter icon for 1 second to display the “FIL- w
TER” screen.
Push [SHARP] or [SOFT]( e D) to select either the soft
or sharp filter shape.
Push r
MENU
(C) to exit the “FILTER” screen.
IF (DSP) lter shape
When SHARP is
selected
When SOFT is
selected
Touch [SHARP]
to select SOFT
Touch [SOFT] to
select SHARP
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
