SCAN OPERATION
12-2
Scan
–
∂F frequency +∂F frequency
Center frequency
(Start frequency)
Jump
Mch 1 Mch 5
Mch 2 Mch 3 Mch 4
Mch 6Mch 7Mch 99
�
�
�
�
�
� means the Select Memory channels.
� means the Select Memory channels.
�
Mch 1
�
Mch 5
Mch 2
� Mch 3 Mch 4
Mch 6
� Mch 7 � Mch 99
FM FM
USB
FM
CW
USBFM
FM
Scan
1A
2A
3A
1B
2B
3B
Jump
Scan edges

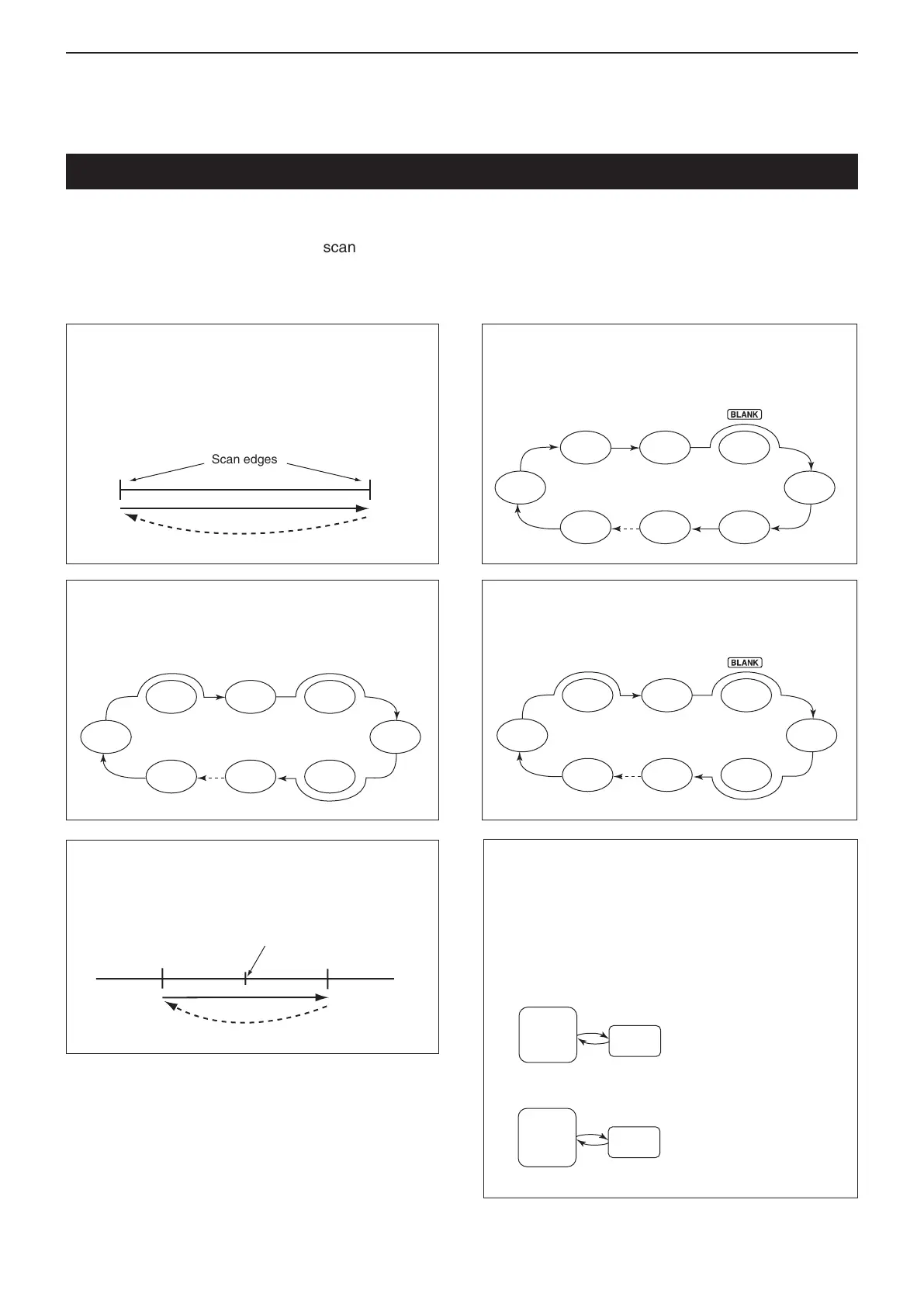

Scanning automatically searches for signals and makes
it easier to locate new stations for contact or listening
purposes. The IC-7100 has several scan types; Pro-
grammed scan, Memory scan, Select Memory scan,
Mode Select scan and ∂F (Delta Frequency) scan.
Rotating the Dial changes the scanning direction as the
default. The Dial functions during a scan can be set in
the Scan Set mode. (p. 12-5)
MEMORY SCAN (p. 12-10)
Repeatedly scans all programmed Memory chan-
nels.
This scan operates in the Memory mode.
PROGRAMMED SCAN (p. 12-8)
Repeatedly scans between scan edges. P1 scans
between 1A and 1B, P2 scans between 2A and 2B,
and P3 scans between 3A and 3B frequencies.
This scan operates in the VFO mode.
SELECT MEMORY SCAN (p. 12-12)
Repeatedly scans all Select Memory channels.
This scan operates in the Memory mode.
MODE SELECT SCAN (p. 12-11)
Repeatedly scans all selected Memory mode chan-
nels.
This scan operates in the Memory mode.
∂F SCAN (p. 12-14)
Repeatedly scans within the ∂F span area.
This scan operates in both VFO and Memory
modes.
Scan types
PRIORITY SCAN (p. 12-16)
Checks the selected priority channel every 5 sec-
onds:
• While receiving on a VFO frequency
• During a VFO mode scan for the VFO mode
• While receiving on a repeater in the DR mode
• During a DR mode scan for the DR mode
This scan operates in the VFO or DR mode.
A VFO frequency, Memo-
ry channel, Call channel
or Program Scan Edge
channel can be selected
as the priority channel.
Checks every
5 seconds.
Receiving/Scan
(5 seconds)
VFO
mode
Priority
channel
Receiving/Scan
(5 seconds)
DR
mode
Priority
channel
Checks every
5 seconds.
A Memory channel, Call
channel or Program Scan
Edge channel can be
selected as the priority
channel.
Previous view
