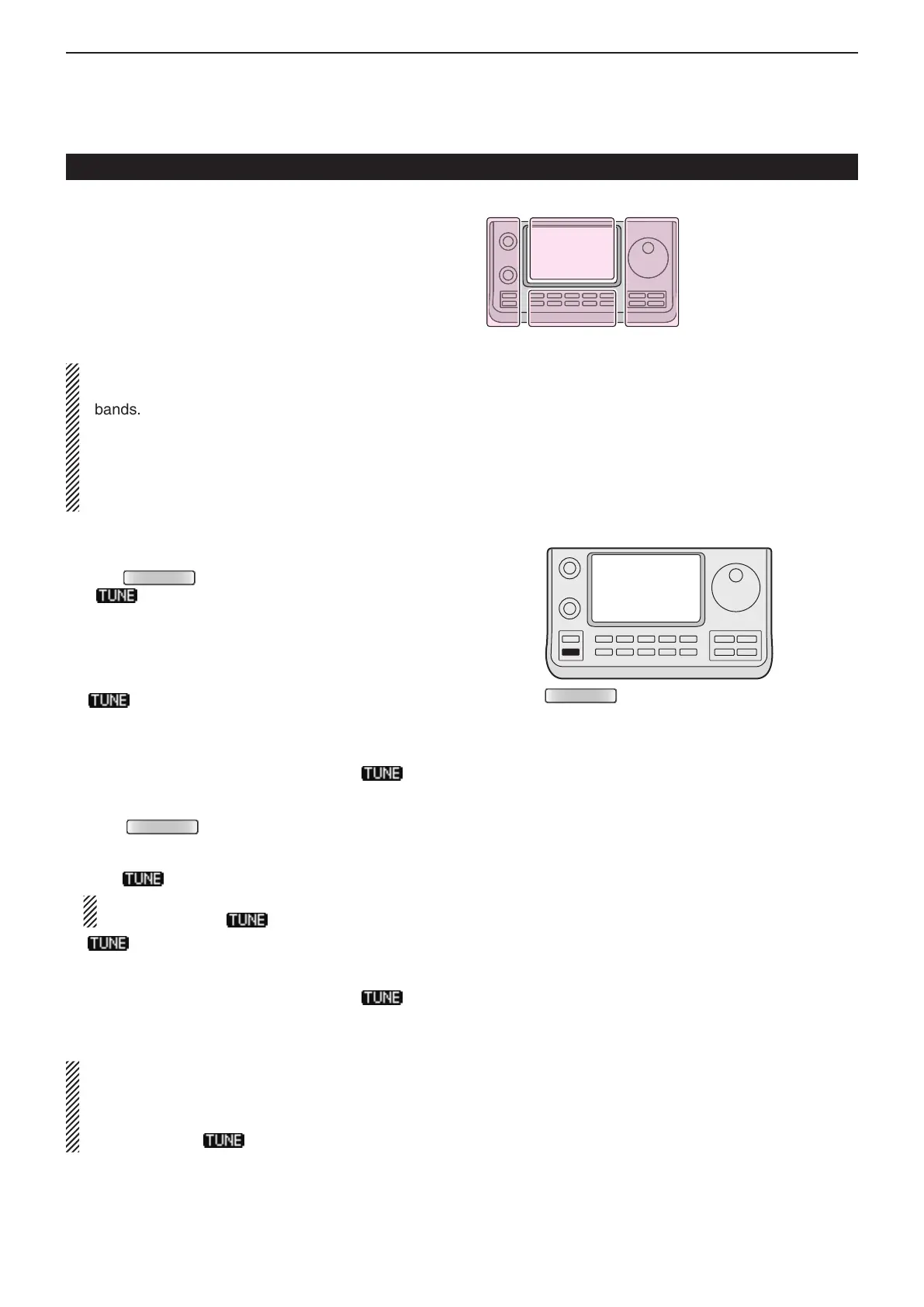

16
ANTENNA TUNER OPERATION
16-6
D Operating
The AT-180 a u t o m a t i c a n t e n n a t u n e r automatically
matches to your antenna. Once the tuner matches the
antenna, the variable capacitor settings are memorized
as a preset point for each frequency range (100 kHz
steps). Therefore, when you change the frequency
range, the variable capacitors are automatically preset
to the memorized point.
NOTE:
The AT-180 can match both the HF and 50 MHz
bands. However, operation is different for the
bands.
When connecting the AT-180, the transceiver’s out-
put power should be more than 8 W. Otherwise, the
AT-180 may not tune correctly. The AT-180’s mini-
mum operating input power is 8 W.
Check the transceiver’s output power is set to 8 W. q
Push w
TUNER/CALL
(L) to turn ON the AT-180.
• “ appears.
For the HF band:
The antenna is automatically tuned during transmit if
the antenna SWR is higher than 1.5:1.
For the 50 MHz band:
blinks if the antenna SWR is higher than
1.5:1, regardless of the internal switch position de-
scribed on the page 16-7. In this case, do the step e
to manually tune the antenna.
If you continue to transmit without retuning, goes
out after approximately 10 seconds, the AT-180 is by-
passed and the antenna is directly connected.
Push e
TUNER/CALL
(L) for 1 second to start manual
tuning.
While tuning, the transceiver transmits in the CW mode
and
blinks.
NOTE: DO NOT change the frequency and oper-
ating mode while is blinking.
r
is still ON after the tuning is completed, and
the previously selected operating mode is automati-
cally selected.
When the connected wire cannot be tuned, goes
out, the AT-180 is bypassed and the antenna is directly
connected.
Once the tuner matches the antenna, the variable
capacitors are automatically preset to the memo-
rized point when you change the frequency range in
100 kHz steps.
While presetting, “ blinks.
Operating the AT-180 (Continued)
TUNER/CALL
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch screen)
