Icom IC-7100 Advanced Instructions

4
RECEIVE AND TRANSMIT
4-27
Repeater operation (Continued)
D One-touch repeater function
This function allows you to set the repeater operation
by holding down one switch.
First, set the frequency offset as well as the repeater
access tone frequency (p. 4-26).
Touch the Memory channel indication once or twice q
to select the VFO mode.
Select the desired frequency band. (p. 3-6) w
On the Mode selection screen, touch “FM” to select e
the FM mode.
Rotate the Dial to set the receive frequency (Repeat- r
er output frequency).
t P ush
MENU
(C) one or more times to display the
“M-2” screen (M-2 menu), then touch [DUP](D) for 1
second to turn ON the one touch repeater function.
• “TONE” and “DUP–” appear.
• The repeater receive frequency appears above the func-
tion menu.
• The Split Frequency mode is automatically turned OFF, if
it is ON.
Touch [DUP]( y D) one or more times to switch the off-
set direction.
• “DUP–” or “DUP+” appears.
Communicate in the normal way. u
• Subaudible tones are superimposed on your transmit sig-
nal.
L
eft
R
ight
C
enter
D
isplay
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D:
Display (Touch screen)

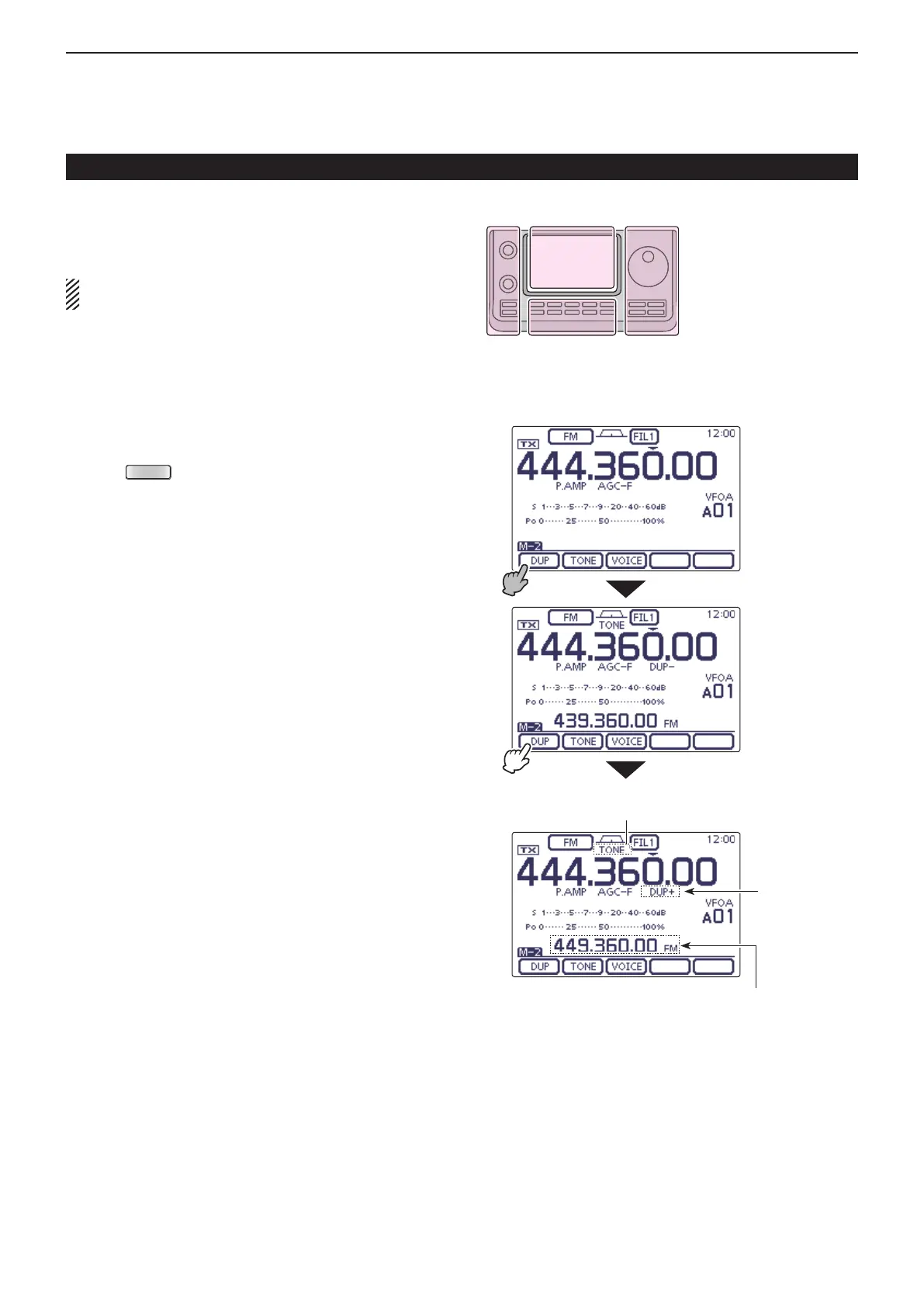

Repeater tone icon
Transmit frequency
(Repeater input frequency)
Duplex icon
Touch [DUP] for
1 second
Touch [DUP]
Previous view

Icom IC-7100 Specifications

General

Supply	13.8 V DC ±15%
Voltage	13.8 V DC
Operating Temperature	-10°C to +60°C
Frequency Coverage	0.030-199.999 MHz, 400-470 MHz
Modes	SSB, CW, AM, FM, DV
Output Power	HF/50MHz: 100W, 144MHz: 50W, 430MHz: 35W
Receiver Type	Superheterodyne
Antenna Connector	SO-239 (HF/50MHz/144MHz), N-type (430MHz)
Weight	Main unit: 2.3 kg
Type	Base/Mobile
Frequency Range TX	1.8–54 MHz, 144–148 MHz, 430–450 MHz
Frequency Range RX	0.030–199.999 MHz, 400–470 MHz
Memories	505
Current Consumption	TX: 22 A, RX: 1.2 A
